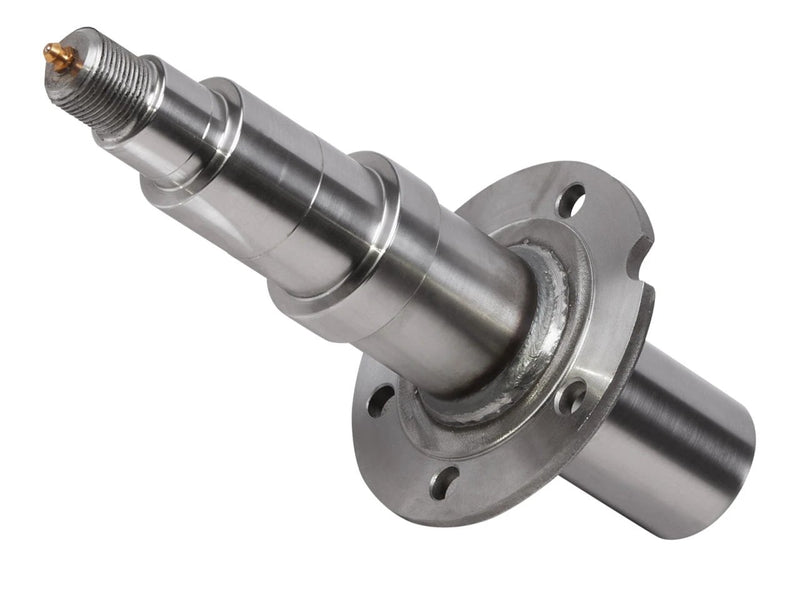

Trojan 3000Kg Stub and Flange for Electric and Hydraulic Brake Systems (280mm)

The Trojan 3000Kg Stub and Flange combines a precisely machined stub axle with a robust mounting flange, delivering a single, integrated hub solution designed for demanding electric and hydraulic brake systems rated up to 3,000 kg. Built to withstand heavy-duty use, this assembly ensures dependable performance in industrial applications where strength and reliability matter most.

Key features that matter in real-world braking setups

• Heavy-duty load capacity: engineered for up to 3,000 kg systems, making it suitable for demanding industrial braking and actuation environments.
• 1045 medium-tensile steel stub axle: manufactured to AS1442 standards to balance strength, toughness, and wear resistance under high-stress loading.
• 280mm mounting flange: a substantial flange diameter that provides a secure, wide mounting surface for stable rotor/disc alignment and long service life.
• Precision machining: tight tolerances on the spindle and flange interfaces to promote accurate rotor alignment, smooth braking response, and reduced wear on mating components.
• Integrated hub design: a unified stub-and-flange assembly that simplifies installation and maintenance by reducing loose parts and alignment errors.

Who this is for

Ideal for fleets, workshops, and job sites that rely on robust electric or hydraulic braking systems operating in tough environments. If your equipment requires a durable hub assembly capable of supporting heavy loads with precise rotor alignment, this Trojan stub and flange is a reliable foundation for your braking solution.

Use cases and practical applications

• Industrial trailers and equipment where a strong, easily-maintained hub is critical for consistent braking performance.
• Electric or hydraulic braking installations in material-handling gear, heavy-duty carts, and mobile equipment.
• Repairs and refurbishments where restoring a precise, rigid mounting interface is key to extending rotor life and reducing downtime.

Why choose Trojan

Trojan combines meticulous engineering with proven materials to deliver hub assemblies that resist wear and maintain alignment under repetitive braking cycles. This 3000Kg Stub and Flange reflects Trojan’s commitment to reliability, precise fabrication, and compatibility with established braking systems, helping you minimize maintenance headaches and maximize uptime.

Specification at a glance

• Purpose: Stub axle with flange for electric and hydraulic braking systems
• Capacity: Up to 3,000 kg
• Material (stub): 1045 medium-tensile steel, AS1442 compliant
• Flange diameter: 280 mm
• Configuration: Integrated hub/stub assembly for straightforward installation

Maintenance and installation tips

• Verify proper alignment between the hub, rotor, and mounting surface during installation to maximize rotor life and braking performance.
• Inspect the spindle and flange surfaces for wear or damage during routine maintenance and replace if excessive wear is detected.
• Follow standard torque specifications for flange mounting to ensure even clamping and prevent distortion.

Note: This description refers to the stub-and-flange assembly designed for 3-ton electric and hydraulic braking setups. Confirm compatibility with your specific rotor/disc and mounting configuration during installation.
