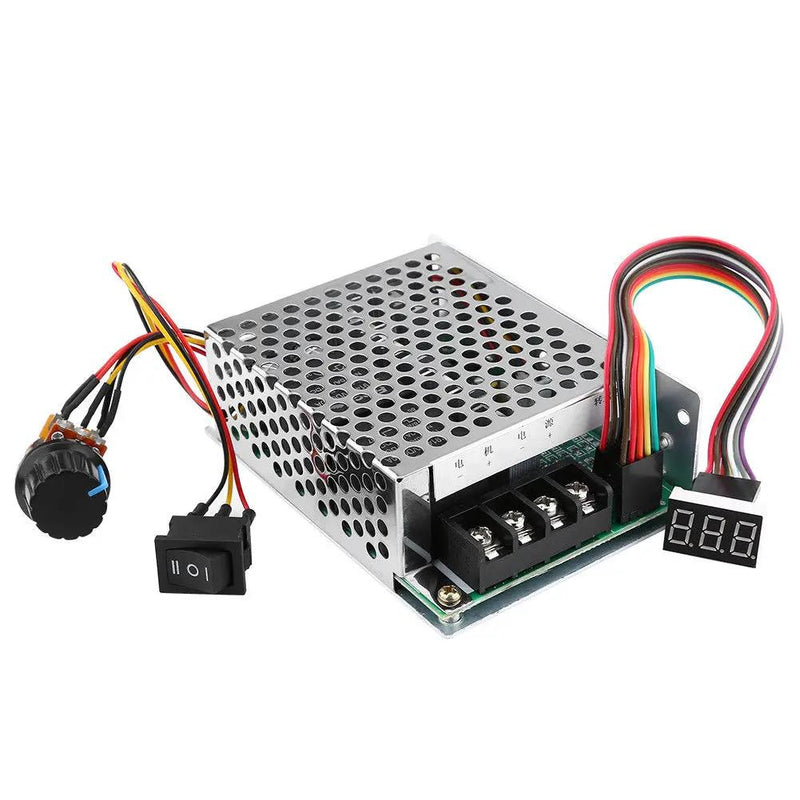

This is a simple and easy-to-use DC motor speed controller of elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 55V. This speed controller with high power allows setting rotation direction.
Features:
*Speed controller is made with high quality circuit board which ensures a longer service life.
*This simple and easy-to-use DC motor speed controller has an elegant appearance and stable performance.
*Well design case can protect the controller board from damage as well as dissipate heat.
*Designed with a digit display that shows the rate in percent of actual speed to maximum speed.

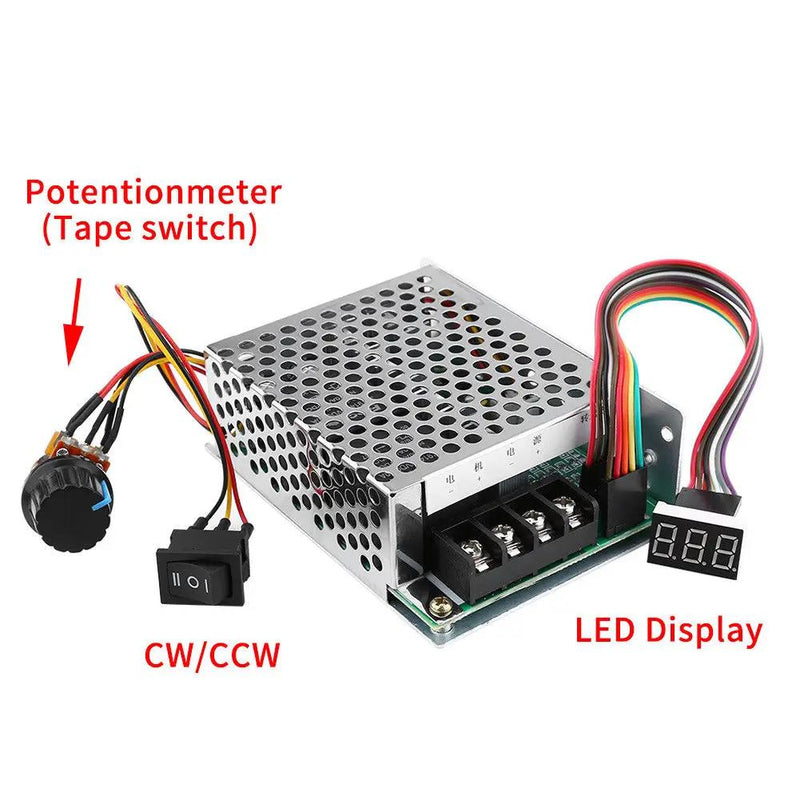

*This motor speed controller would allow setting direction of rotation that accomplishes reversing the motor's direction.

Specifications:
*Input Voltage: DC10V-55V
*Output Voltage: Linear with load
*Max. Current: 60A
*Continuous Current: 40A
*Speed Range: 0% to 100%
*Forward & Reverse: Support
*Regulation Method: Potentiometer(linear)
*Regulation Type: Regulating Current
*Control Frequency: 15KHz

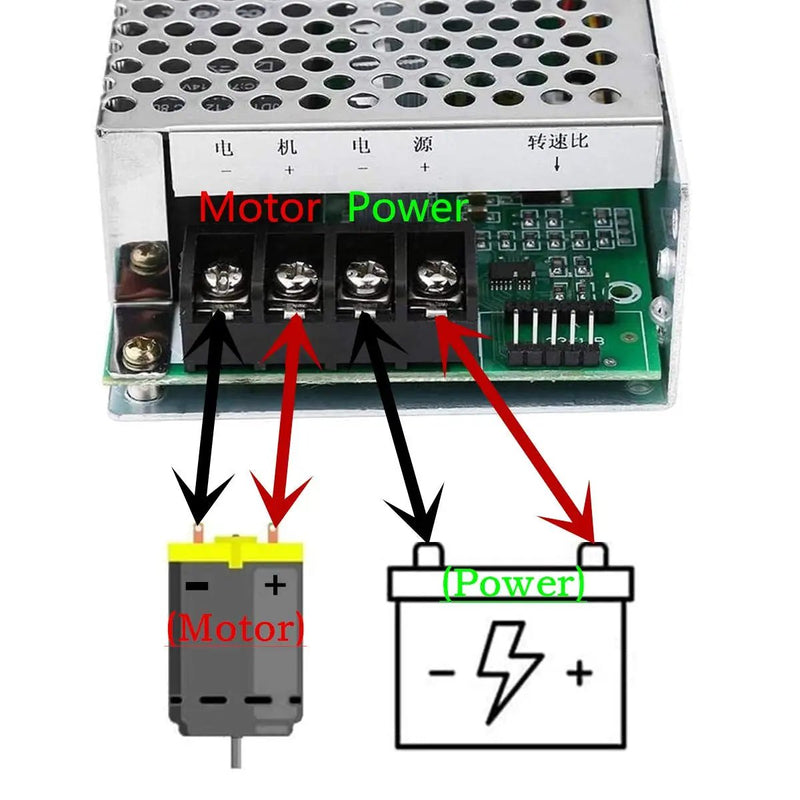

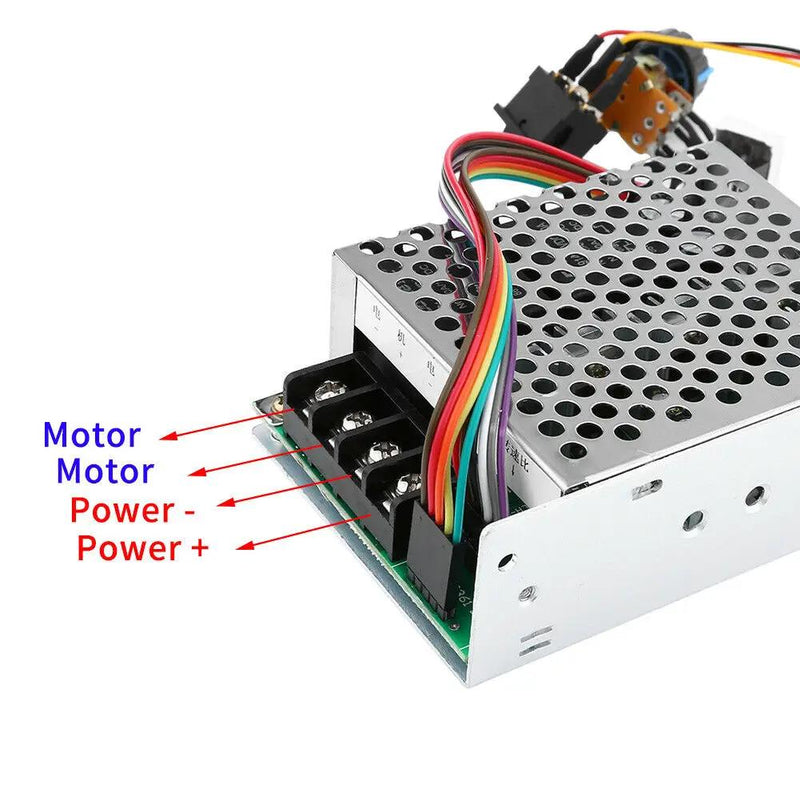

*Wiring Type: Screw terminal
*Rotary Knob: 100K(with switch)
*Suitable for: Brushed DC motor

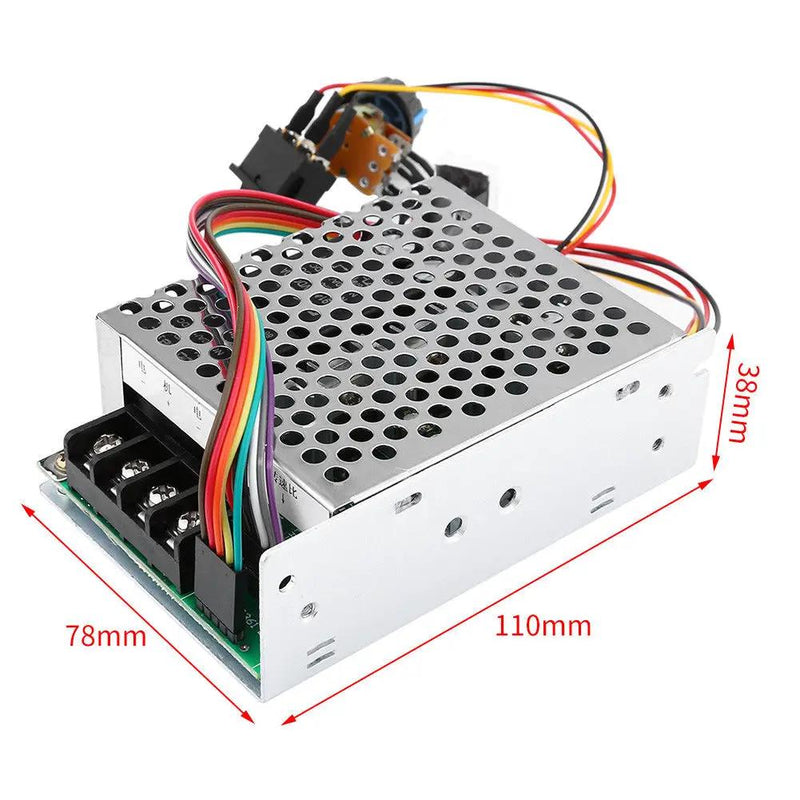

*Size: 100 x 76 x 28mm / 3.93 x 2.99 x 1.1"

Package Includes:
1 x Speed Controller
