MC4 Y Branch Connectors Cable Solar Panel Cables Connector MC4 Cable Connector
Supplier Direct/Internet Order Only
* Please do not visit the shop
(Inc. GST)
1 Pair MC4 Y Connector Cable Plug Inline Solar PV Panel IP67 2 connection
Cable specification: 20A (4mm2) 30A(6mm2)
Rated Current: 30A
Rated voltage: 1000VDC
Contact resistance: <= 2mm ohm
Waterproof degree: IP67
Flame class: UL94-VO
Safety Class: II
Withdrawal force: >=50N
Insertion force: <=0N
Insulation material: PPO + PA
Connecting system: Crimping connection
Temperature range: -40C ~ +105C

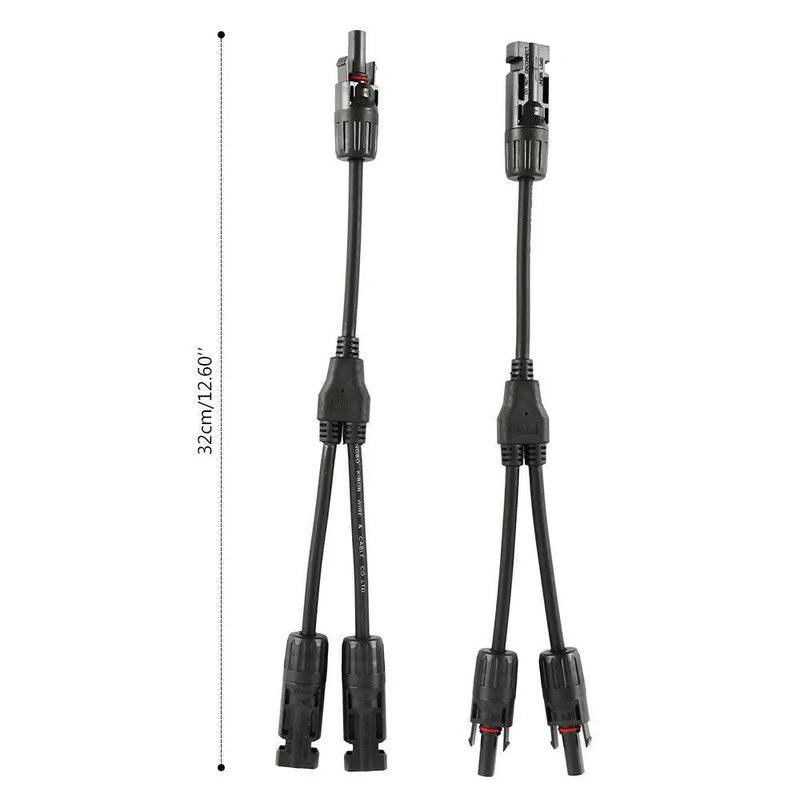

Cable length: 32cm/12.60in
Features:
This Y Style MC4 compatible Solar Cable Connector Set (Part # RX- MC4Y-P) is a perfect solution to parallel connect multiple panels together

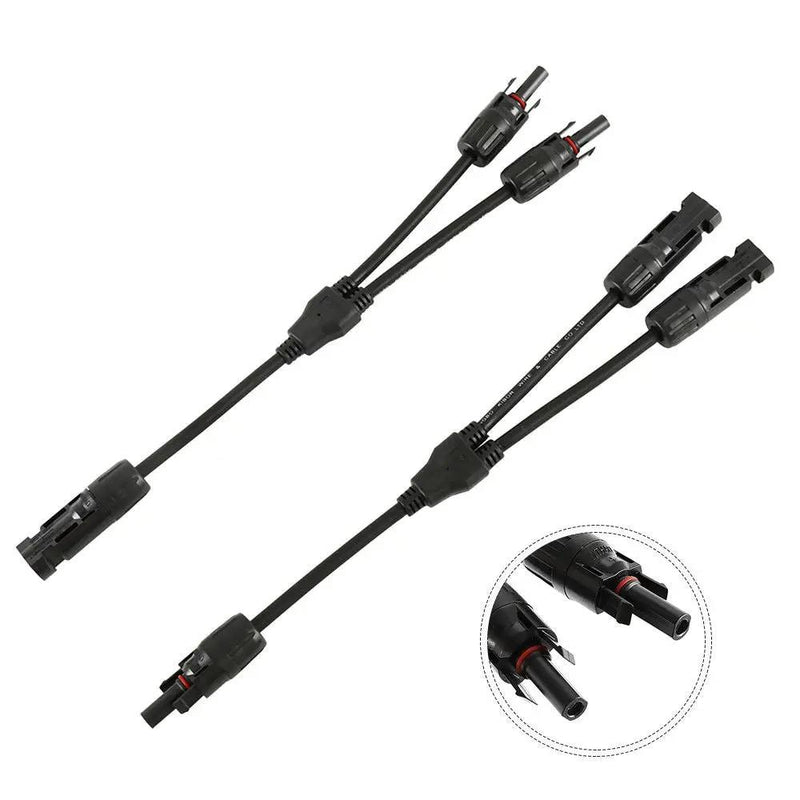

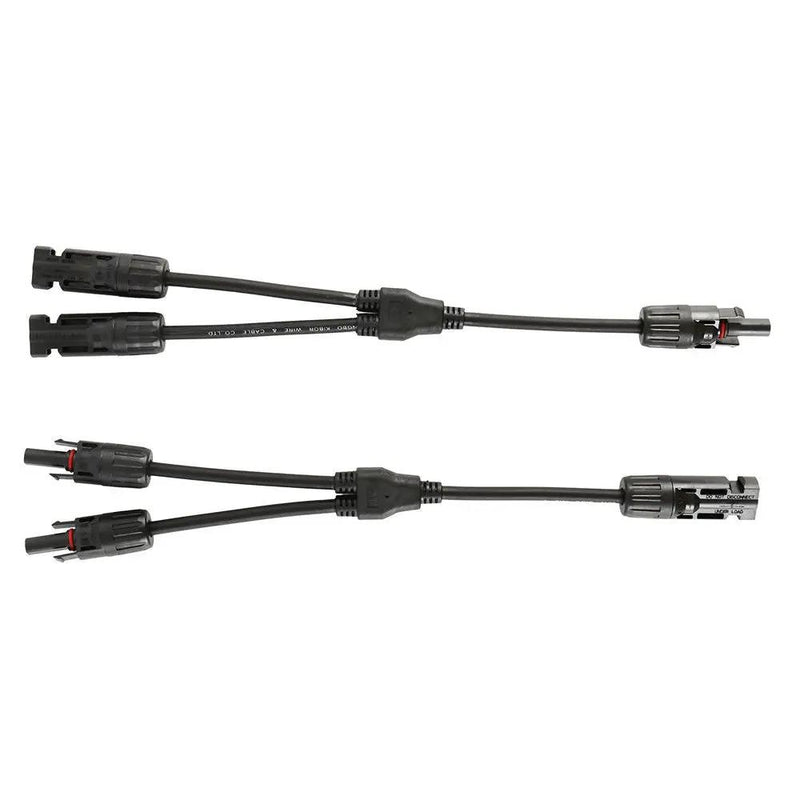

The Y MC4 Solar Cable Connector Set includes one Y style MC4 cable connector one female to double male (F/M/M) and one Y style MC4 cable connector one male to double female (M/F/F)
Electron-beam cross-linked compounds UV and ozone resistant
Hydrolysis resistant
High temperature resistant, the materials do not melt or flow
Good cold flexibility
Long life cycle
Package included:
1 Pair of Y Type MC4 Solar Panel cable Connectors (one Male & one female)
