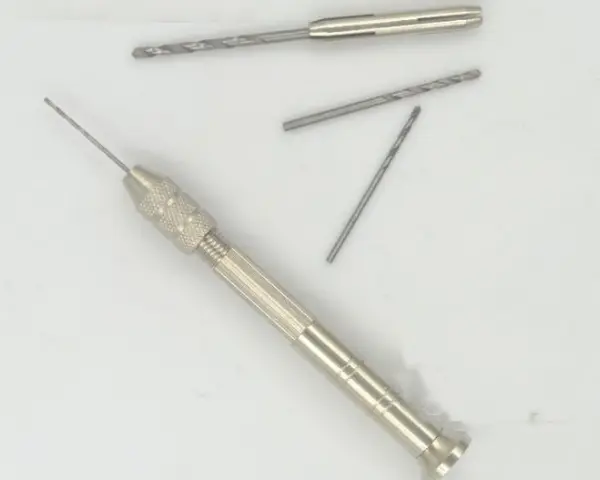

Pin Vise Manual Drill with 4 Pcs Drill Bits

Manual pin vise with 4 drill bits for drilling resin pendants, keyrings and jewellery. Precise control, no power needed. Shop tools at Resin Art NZ.

Product details and specifications

Manual Drill suitable for craft job and resin art.

Bits: 1x 1mm, 1x 1.5mm, 1x 2mm, 1x 2.5mm.

Step-by-Step Instructions

1. Select the Drill Bit

Choose the drill bit size that matches the hole you need.
Use smaller bits for delicate or precise work.

2. Insert the Drill Bit

• Loosen the pin vise chuck by turning it counter-clockwise.

• Insert the drill bit fully into the chuck.

• Tighten the chuck by turning clockwise until the bit is firmly secured.

⚠️ Tip: Ensure the bit is centered to prevent wobbling or breakage.

3. Secure the Workpiece

Hold the material firmly or clamp it in place.
Make sure the surface is stable before drilling.

4. Drill the Hole

• Hold the pin vise vertically with gentle downward pressure.

• Rotate the handle slowly between your fingers.

• Let the drill bit cut naturally — do not force it.

🔁 For deeper holes, pull the bit out occasionally to clear debris.

5. Finish and Remove

Once the hole reaches the desired depth:

• Stop rotating

• Gently pull the drill bit out

• Loosen the chuck to remove or change the bit

Safety & Care Tips

• Always drill slowly to avoid snapping small bits

• Wear eye protection when drilling hard materials

• Clean drill bits after use

• Store bits in a dry place to prevent rust
