Lenco 101 XDS Short Actuator

Lenco 101 XDS Short Actuator - This is the shortest Actuator Lenco Manufacture - Corrosion proof Vandar Mounts

Lenco 101 XDS Short Actuator 12V

Features

Lenco 101 XDS [Short] Power Cylinder

This is the shortest Actuator Lenco manufactures.

• The top cap gland seal sheaths the actuator cable outer jacket and internal conductors for maximum waterproofing.
• Corrosion-proof Vandar mounts
• Stainless steel ram won’t flex, even under extreme loads
• Double O-ring for maximum protection
• Ballscrew rotates freely on 12 ball bearings at both ends of its stroke, so there’s no need for complicated limit switches and clutches.
• Self-locking ballscrew locks into position and will not drift
• Precision moulded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
• Tough, high-torque motor easily transfers 750 lbs
• Available in the 12-volt motor. Kit includes a 12-volt motor
• High-impact, ultraviolet-resistant nylon 66, 50 per cent glass fibre reinforced thermoplastic housing
• Corrosion-proof Vandar cap and mount stand up to severe loads
• Solid stainless steel billet end available for heavy-duty, extreme duty, and super-strong applications

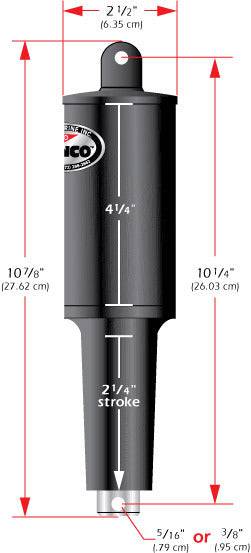

Specifications

• Stroke 2-1/4inch[5.72 cm]
• Length overall10-7/8 inch[27.62 cm]
• Length pin to pin 10-1/4inch [26.03]
• Diameter [upper housing] 2-1/2 inch[6.35]

THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS

PRODUCT CODE 5617
