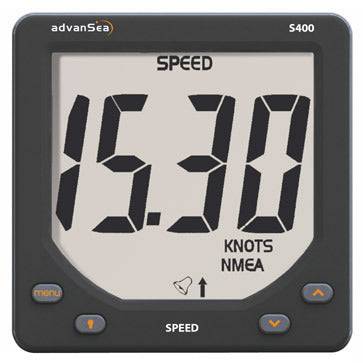

advanSea Speed S400 with plastic thru-hull tdx

advanSea Speed S400 with plastic thru-hull tdx - The advanSea S400 series uses cutting-edge technology. Product Code PL57757

advanSea Speed S400 with plastic thru-hull tdx

Features

• advanSea Speed S400
• LOG-SPEEDO
• GIANT DIGITS (45 MM)

The advanSea S400 series uses cutting-edge technology to provide accurate data for cruisers or racers.

• Accuracy, optimal legibility, flexibility and ease of installation are the key benefits of the S400 series, together with easy intuitive operation with direct function access.
• LCD screens with wide-angle viewing and supersize digits for unmatched visibility. Watertight display facia (IP66); displays feature an anti-fogging coating for optimal safety even in extreme conditions.
• The S400 series is available with a choice of compatible transducers manufactured by Airmar or Plastimo. The instruments can also operate as "stand-alone" with intelligent transducers or an NMEA0183 source.

The advanSea depth, speed and multi-instruments are fully compatible replacements for the Navman 3100 and Northstar 310 series, as the same transducers can be used.

The advanSea Speed S400 offers:

• Giant Digits (45mm)
• Water speed: 0-60 knots, 0-69 mph, 0-111 km/h.
• GPS speed of connected to compatible (NMEA0183) navigator.
• Total and trip log.
• Elapsed time and countdown race timer.
• Water temperature.
• Speed trend indication.
• Surface speed high and low alarms.
• Low battery alarm.
• Simulation mode.
• advanSea instruments come with a 2-year warranty, with worldwide support from the Plastimo network.

Delivers all speed, distance, time and temperature data, together with a countdown function.

Specifications

Common Features

• External unit dimensions: 112 x 112 mm
• Operating voltage: 10 V to 16.5 V
• Display power consumption: Below 150 mA Incl. backlighting
• Operating temperature: -10 to + 50° C
• Storage temperature: -20 to +60° C
• Drilling Ø: 48 mm
• Fixing: Rear locking collar
• “O” ring for bulkhead mount: Yes
• Buzzer/external alarm output: Yes / Yes
• Screen: Monochrome LCD, TN technology (Twisted Nematic)
• Backlit keys: Yes
• Backlit screen: Yes, amber, 5 levels (Off, 1, 2, 3, 4)
• Anti-fogging screen: Yes
• LCD: Transflective
• Waterproof rating: IP66 front face
• Intuitive menu: Yes
• Weather cover: Yes
• Simulation mode: Yes

Instruments Specific Features

• Water speed: 0 to 60 knots
• Depth speed: Yes if connected through NMEA0183
• Speed resolution: 0.01 at 19.99 kts / 0.1 from 20 to 60 knots
• Display damping: 1 - 30 steps
• NMEA0183 input ports: 1
• NMEA Input sentences: VHW/ VTG/ DPT/ VLW/ MTW/ RMC/DBT
• NMEA0183 output ports: 1
• Output sentences: VHW/ VLW/ VTW
• Proprietary bus: Half-Duplex series connection (38400 bauds on one wire)
• Countdown: Yes
• Digits size: Upper line: 45mm
• Units: °F & °C - Feet - Metres - Knots - Km/hr - Miles/hr - V - Miles - Km
• Alarms: High & low speed / Low battery

Product Code PL57757
