Trojan

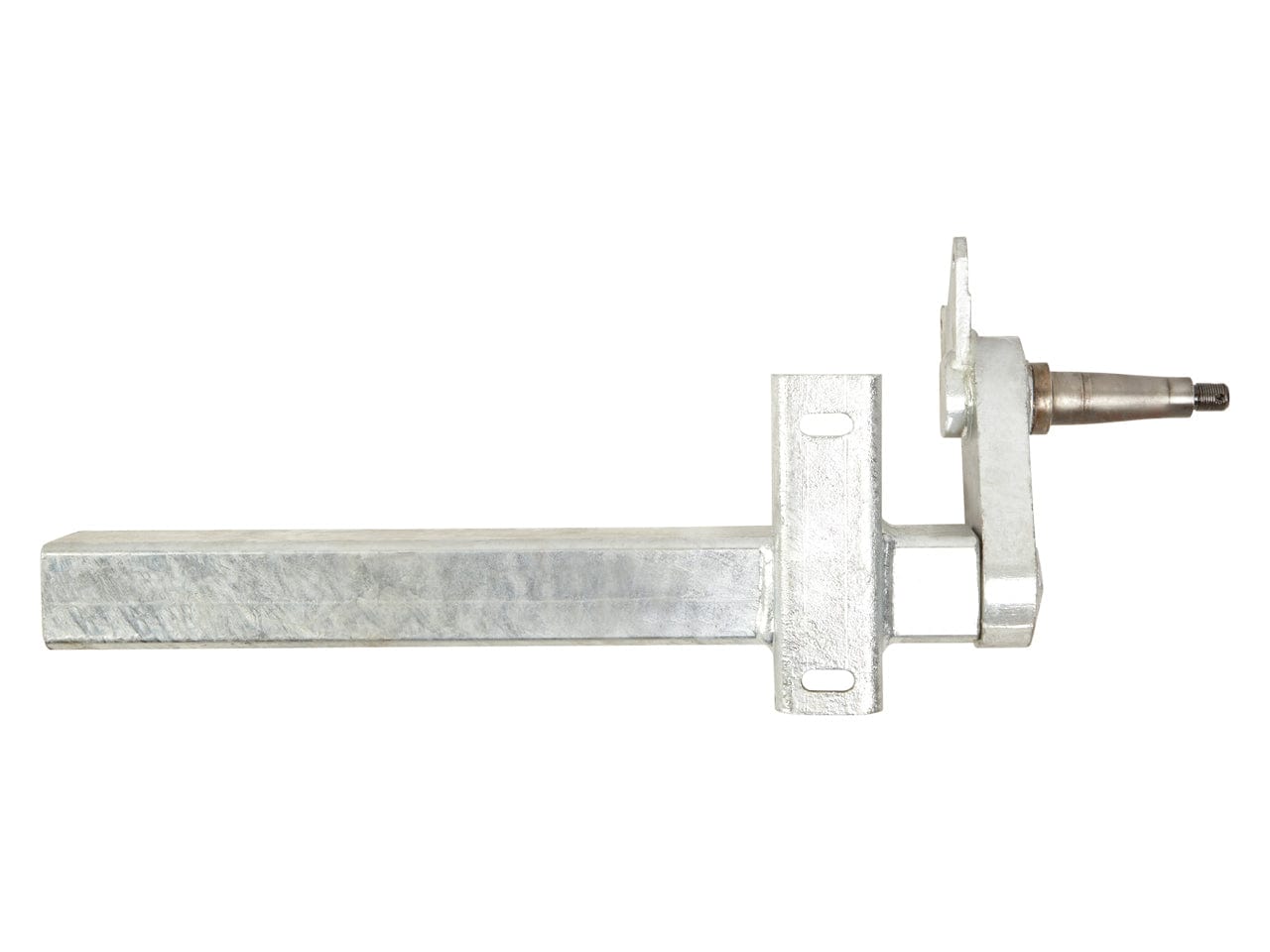

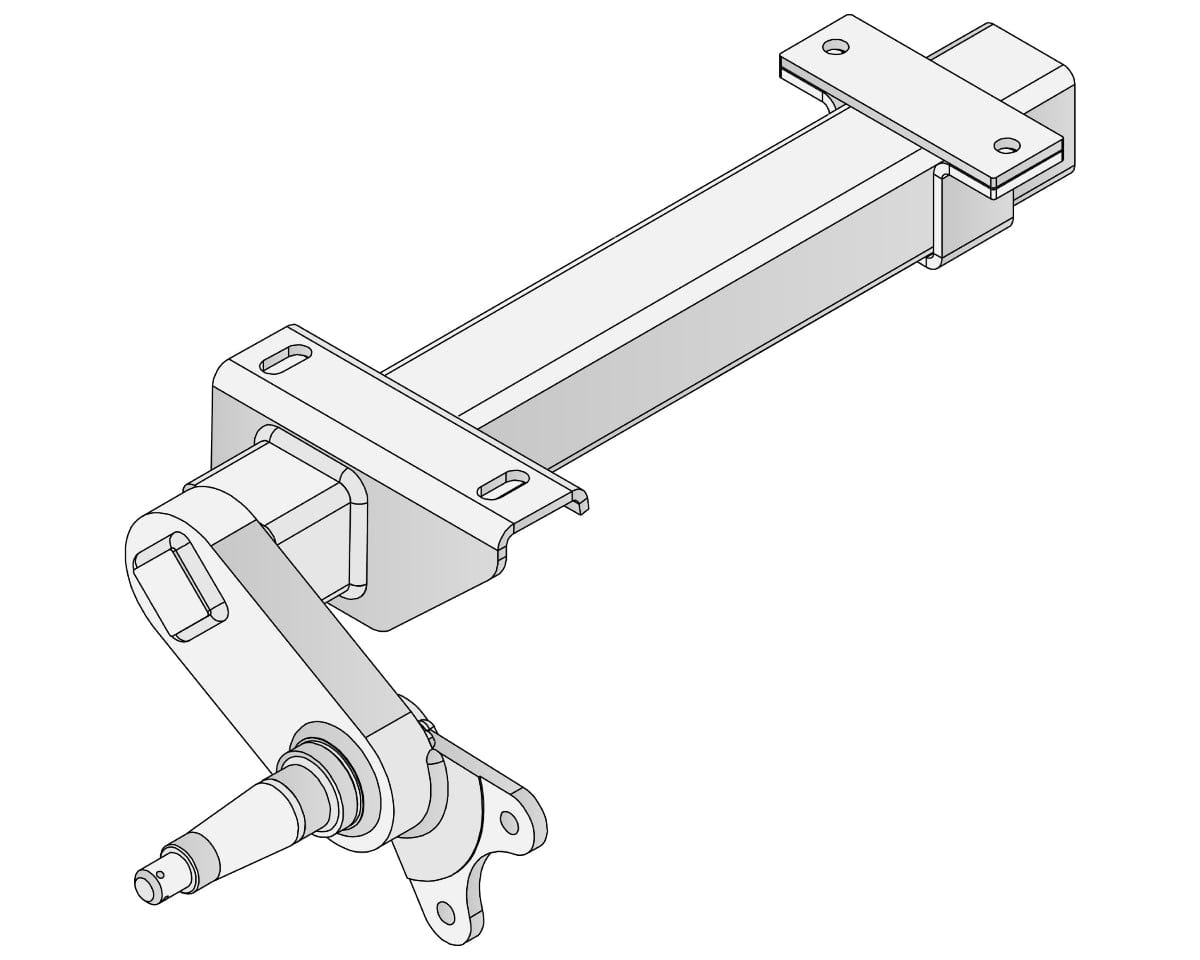

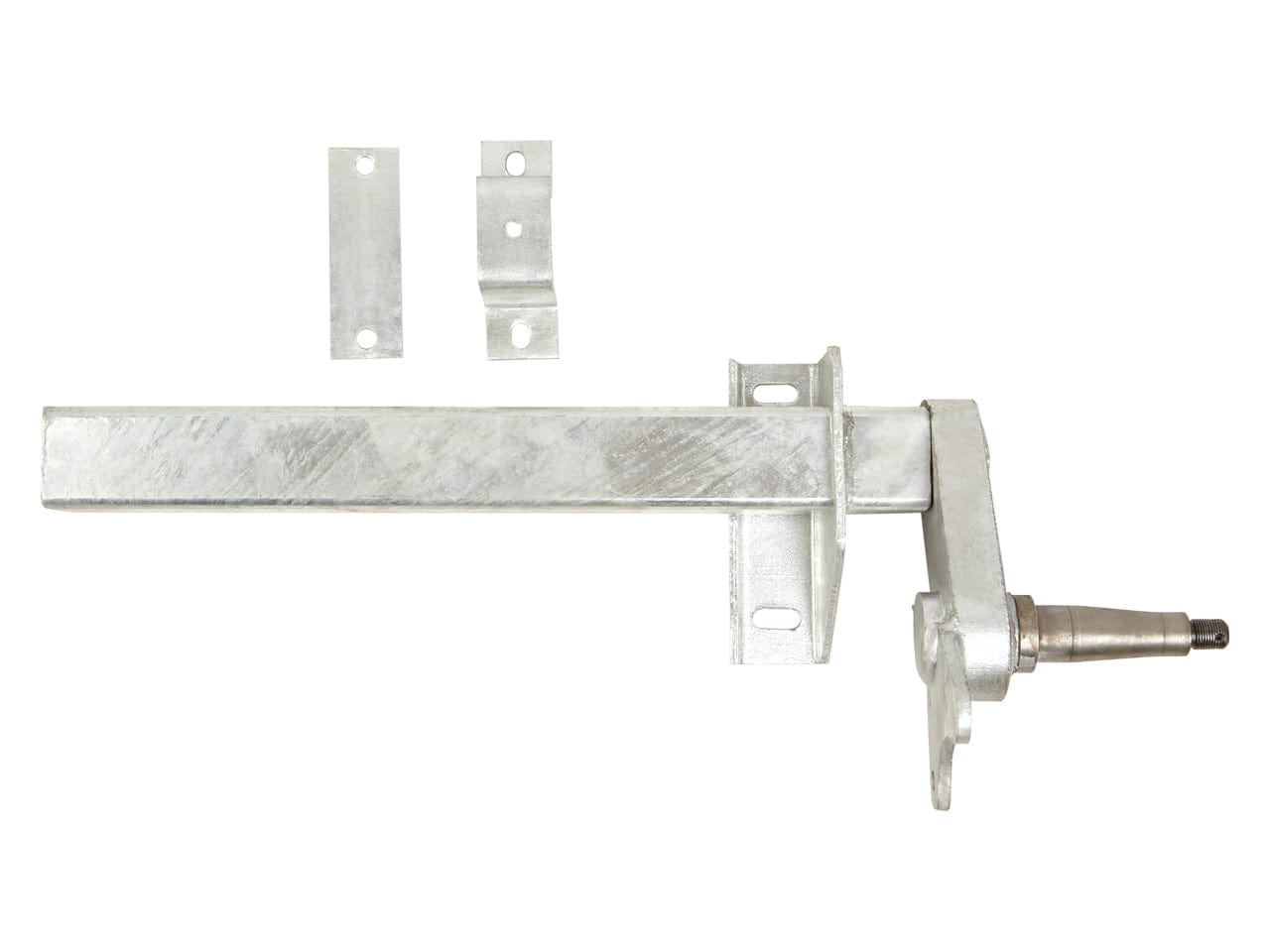

Duratorque Half Beam Axle Multi LH ( rated @2200kg/Pair)
Sent from NZ Supplier (1-2 Days)
Duratorque Half Beam Axle Multi LH 2200kg/Pair -Fixed length to suit any width trailer; hubs sold separately
Duratorque Half Beam Axle Multi LH 2200kg/Pair
Features
THIS ITEM IS MANUFACTURED PER ORDER - Each Side is Sold Separately.
The maximum weight rating is 2200kg per Pair - 1100kg per Side.
These half types are sold and priced per side. Each side has the same part number followed by either LH or RH.
Those shown as RETRO fit are a direct replacement for very early versions. The capacity stamped on each half is the capacity for one pair, not each.
2200kg is the maximum weight rating per Pair. This information helps you work out that the total weight of the trailer plus the anticipated load should always be less than 2200kg
Fixed length to suit any width trailer; hubs sold separately.
These half types are sold and priced per side. Each side has the same part number followed by either LH or RH.
Those shown as RETRO fit are a direct replacement for very early versions. The capacity stamped on each half is the capacity for 1 pair, not each one.
Not sold by the pair
- Pack Size- EA
- Weight- 20kg

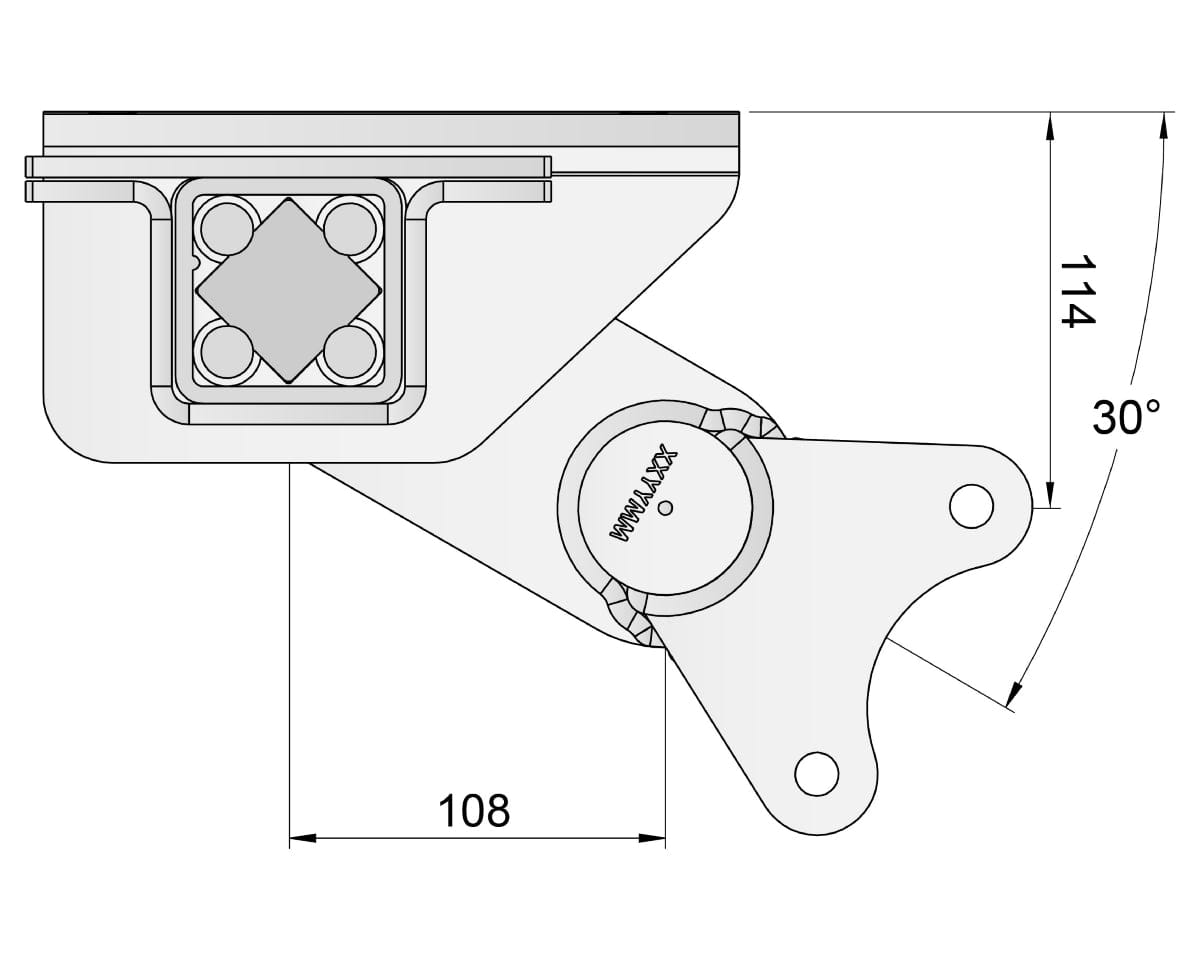

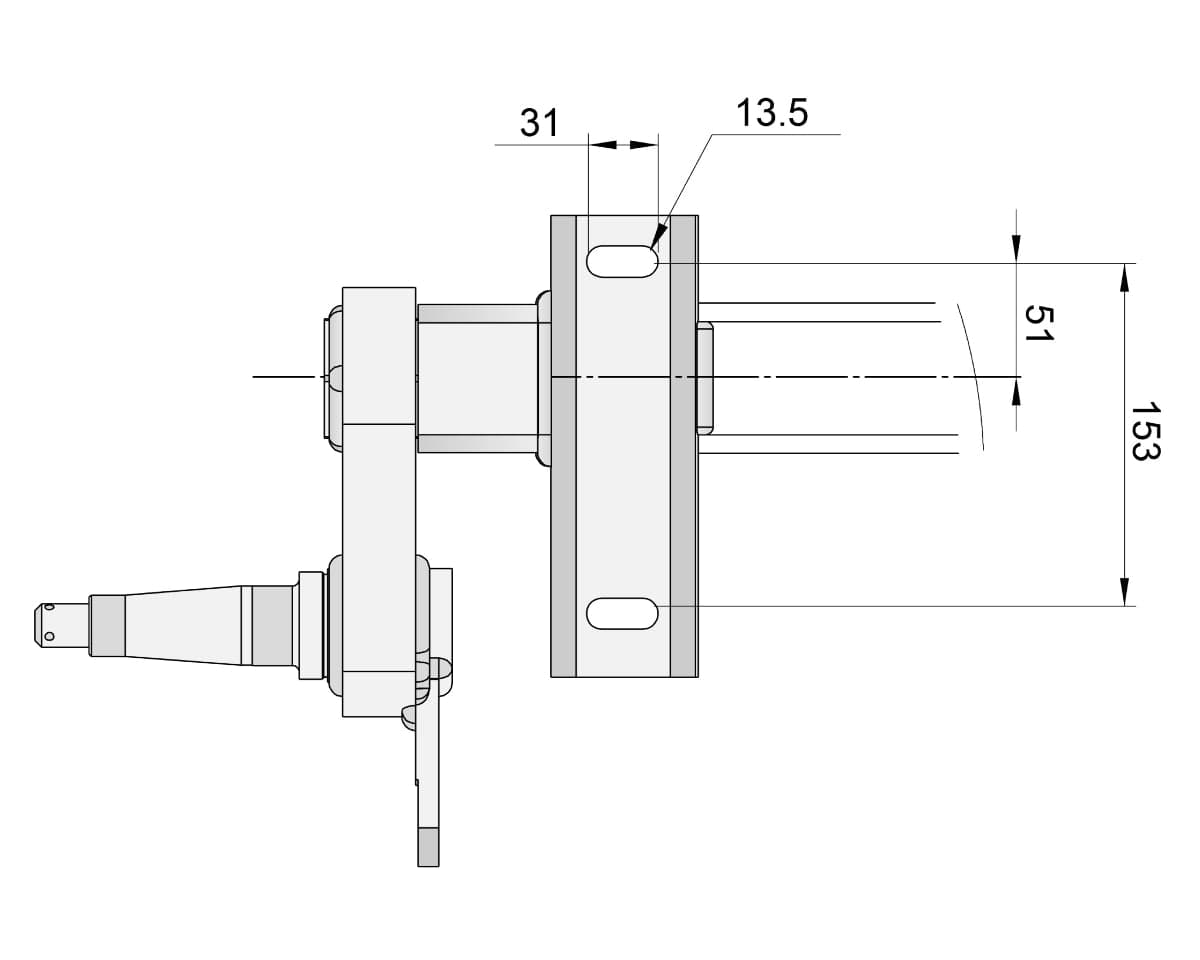

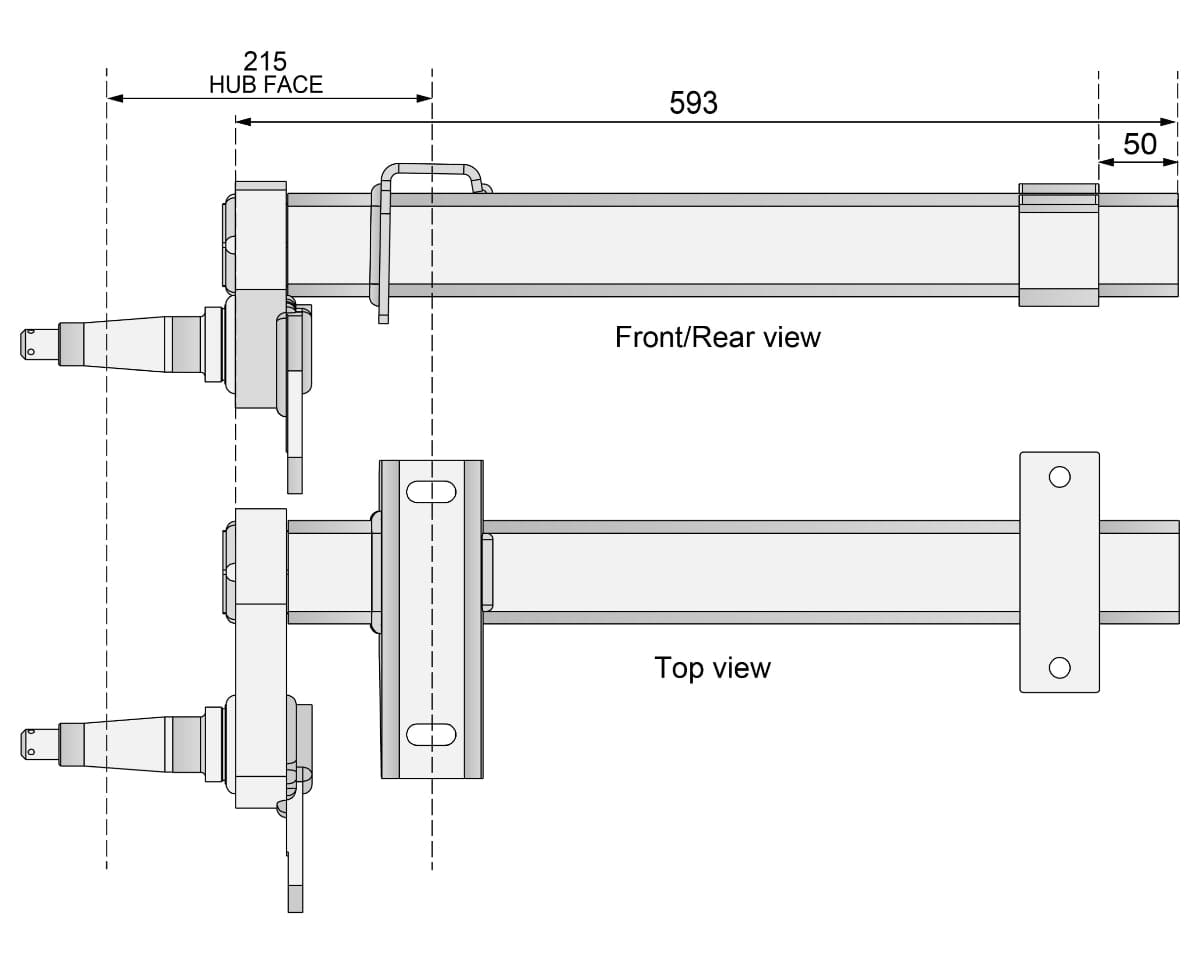

The table details the minimum measurements from the hub face to the spring/bracket mounting centre.
Fig |
Model Type: |
1000kg, 1500kg, 1750kg |
2200kg |
3000kg |
---|---|---|---|---|
A |
Two Piece |
220mm |
210mm |
N/A |
Two Piece Retro |
200mm |
N/A |
N/A |
|
B |
Two Piece |
340 - 440mm |
340 - 440mm |
N/A |
C |
All Disc |
163mm |
165mm |
165mm |
Hyd Drum |
80mm |
N/A |
N/A |
|
Elec Drum 10" |
95mm |
N/A |
N/A |
|
Elec Drum 12" |
N/A |
N/A |
N/A |
|
D |
All |
60mm |
60mm |
25mm |
E |
All |
30mm |
30mm |
30mm |
F |
All |
145mm |
125mm |
145mm |
Note: Hub equipment is to be ordered separately. Early model hubs will not fit on retro Duratorques.
Part No |
Capacity |
Type |
Hub Type |
---|---|---|---|
T081010LH / RH |
1000kg |
Non-braked and disc braked |
|
T081015LH / RH |
1000kg |
Retro |
Non-braked and disc braked |
T081016LH / RH |
1500kg |
Retro |
Non-braked and disc braked |
T081020LH / RH |
1500kg |
Non-braked and disc braked |
|
T092055LH / RH |
1500kg |
Electric braked |
|
T092057LH / RH |
1750kg |
Electric braked |
|
T092040LH / RH |
2200kg |
Non-braked and disc braked |
This product does not have any spare parts.
These products are built to order - Please contact us for delivery times
These products are shipped directly from our supplier
These products are not sold as a pair - weight refers to load capacity
Hubs and Stubs are not included
Made to Order
