Lenco 102 XD [Extended] Actuator 24V

Lenco 102 XD [Extended] Actuator 24 Volt - Stainless steel ram won’t flex, even under extreme loads - Product Code 5617L-24V

Lenco 102 XD [Extended] Actuator - 24V - Pre Order - Due in stock on 17th Nov

Features

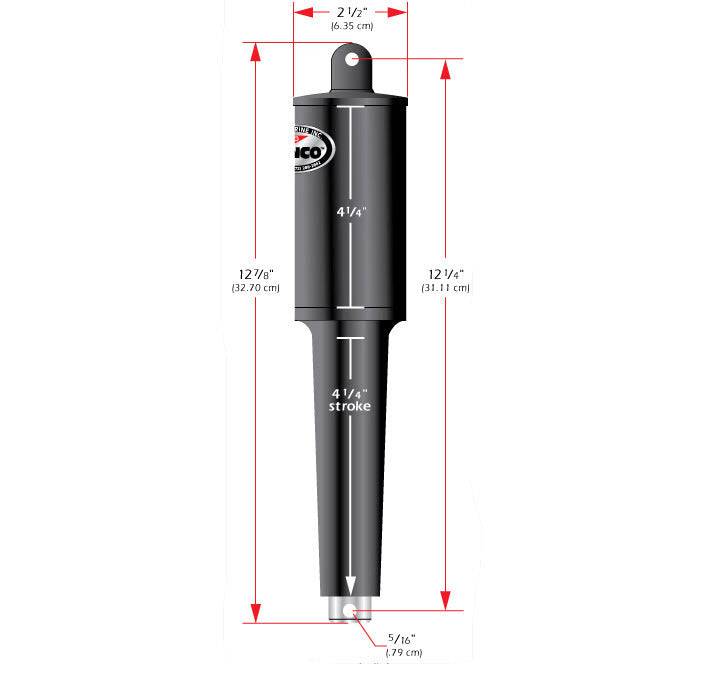

Lenco 102 XD Actuator


Stroke: 4-1/4in [10.8 cm]

Length overall- 12-7/8in [32.70 cm]

Length pin to pin- 12-1/4in [31.11 cm]

Diameter [upper housing] 2-1/2in [6.35 cm]

Mounting hardware- 5/16in [.79 cm]

Lenco Part No.15060-001 [102-2] 12 Volt w/6'[1.83m] leads with Deutsch connectors [replacement length]

• Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
• Corrosion proof Vandar mounts
• Stainless steel ram won’t flex, even under extreme loads
• Double O-ring for maximum protection
• Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there’s no need for complicated limit switches and clutches
• The self-locking ballscrew locks into position and will not drift
• Precision moulded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
• Tough, high-torque motor easily transfers 750 lbs
• Available in 12- or 24-volt motor. Kit includes a 12-volt motor
• High-impact, ultraviolet resistant nylon 66, 50 per cent glass fibre reinforced thermoplastic housing
• Corrosion-proof Vandar cap and mount stand up to severe loads
• Solid stainless steel billet end available for heavy-duty, extreme duty and super strong applications

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIER

NZ Code 5617L-24
