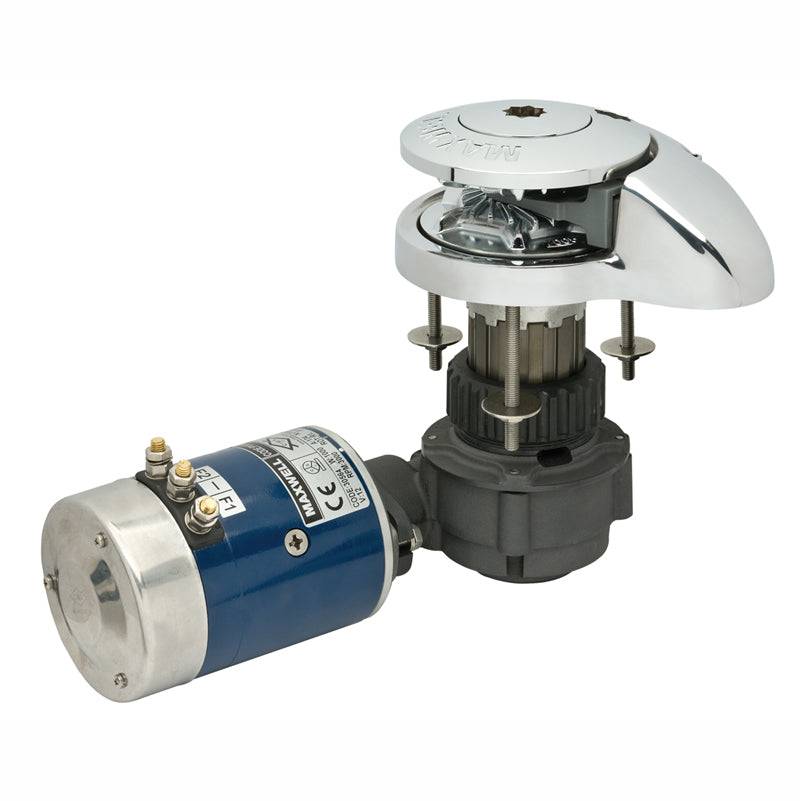

Maxwell Windlass RC8-08 - 24V/1000W

24V-DC Maxwell Windlass RC8-08 - 1000W - A sleek, Low Profile version and a MAX-grip capstan drum version

Maxwell Windlass RC8-8 - 24V/1000W email for eta thanks

Includes circuit breaker & up/down switch - FREE Worth over $200

Features:

• The all-new stainless steel RC8-8 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4 inch) chain spliced to 12mm (1/2 inch) three strand or 8-brait (plait) rope.
• The larger stainless steel RC88 can be used with an 8mm (5/16 inch) chain spliced to 14mm (9/16 inch) three strand or 8-plait rope.
• The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series.
• A sleek, Low Profile version and a MAX-grip capstan drum version, with a drum made in chromed bronze, are available.
• Simple two-piece installation saves time and money and allows easy retrofitting without disassembly of the windlass.
• Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self-aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.
• The RC8 features Maxwell's revolutionary, and patented, new Wave Design chainwheel.
• The heavy-duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance.
• In combination with a heavy-duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.
• The RC8 works just as effectively with all-chain rodes.
• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
• Full disassembly capability of the top works utilising only the handle provided and an Allen key.
• Manual override and Free Fall, using the emergency crank/clutch handle provided.
• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel.

• What's included in the box:

1. Windlass/motor/gearbox
2. Reversing Heavy Duty Solenoid
3. Up/Down Panel Control Switch
4. 135 Amp Circuit Breaker/Isolator

Specifications:

• Model: RC8-8
• Maximum Pull/Lift: 600kg
• Static Hold: 1200kg
• Chain: Short Link 8mm 5/16”
• Rope Size: (Nylon)* 14-16mm (3 strand or 8 plait recommended) 9/16-5/8”
• Chain Speed (Anchor Retrieval): 32m/min, 105ft/min
• Rope Speed (Anchor Retrieval) :28m/min 92ft/min
• Power Supply (DC): 24V
• Motor Power: 1000W
• Net Weight 16.5kg

Maxwell's Revolutionary New Chainwheel Design\
