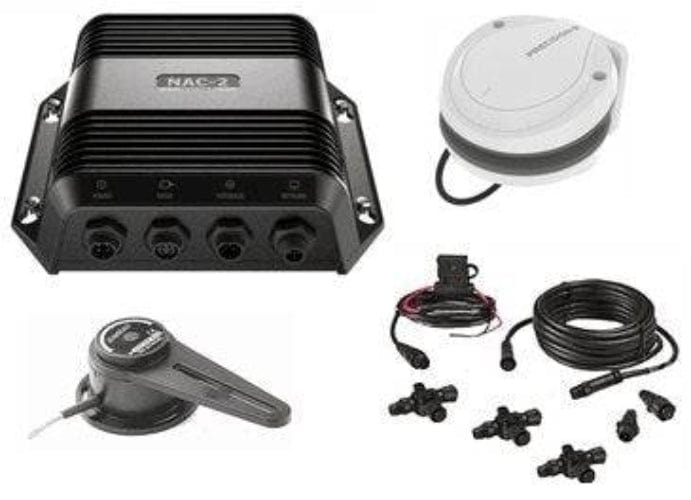

Simrad NAC-2 Autopilot Core Pack up to 10m

Simrad NAC-2 Autopilot Computer - brains behind your autopilot system, it was designed for boats up to 10meters in length. 000-13335-001

Simrad NAC-2 Autopilot Core Pack -

The NAC-2 Autopilot Computer is the brains behind your autopilot system.

NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units.

The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).


The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

Features

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000
• Heading and ROT calculated using sensor data from 9 axes of rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2 degrees after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof, best in class
• Simple installation with a single NMEA 2000 connection

NZ Product Number 000-13335-001

Please note this is not sold in our store - It is Shipped from a secure Location - Online Orders Only
