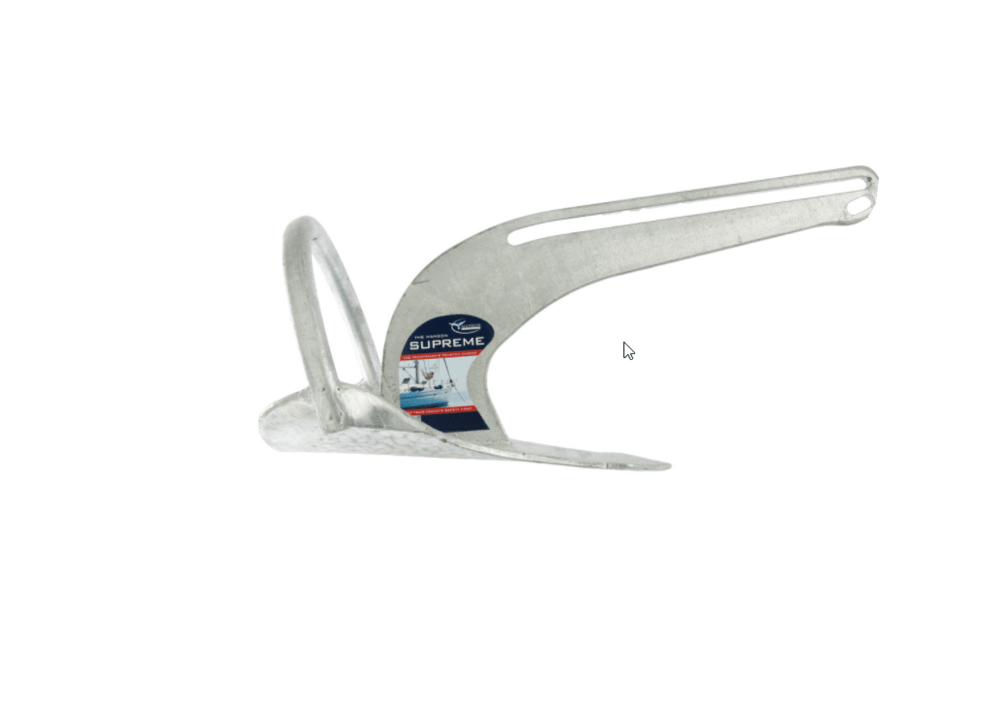

Manson Anchors Galvanised Supreme Boat Anchor

The Manson Anchors Galvanised Supreme Boat Anchor is the pinnacle of modern anchor engineering. Crafted in New Zealand by Manson Anchors, this anchor range spans sizes from 2 kg through to 100 kg, making it suitable for most boat types—from small trailer-boats to large cruising yachts and commercial work-vessels. Whether you’re moored off a remote island, anchored in a bay for the night, or working in challenging seabed conditions, the Manson Supreme offers the confidence, strength, and peace of mind you deserve.

Manson Supreme Galvanised Anchor – Key Features

The Manson Supreme Galvanised Anchor is engineered for extreme holding power and exceptional performance across a wide range of seabed conditions. Built from high-tensile galvanised steel, it offers superior strength, reliability, and long-term durability for serious boaters.

Features:

• Designed for all seabed types – delivers exceptional holding power in sand, mud, and rocky bottoms.

• High-tensile galvanised steel construction – built for strength and corrosion resistance.

• Dual shank anchoring – provides maximum stability and holding efficiency.

• 800 MPa high-strength steel shank – ensures robust performance under heavy loads.

• Supreme roll bar – automatically rolls the anchor into the correct setting position every time.

• Supreme winglets – lateral flaps help the anchor set instantly for a secure hold.

• Bow roller compatible – fits all standard bow roller systems and fully self-launches.

• Spearhead tip – pierces even the toughest seabeds for quick and reliable setting.

• Laminated nose – dual steel layers reinforce the fluke for added strength and durability.

• Certified Super High Holding Power (SHHP) – approved by Lloyd’s Register EMEA.

• Lifetime guarantee against breakage (damage from deformation or bending not covered).

Please note that D-shackles are not supplied with this anchor. Choose from our wide range of D-Shackles here.

Choosing the Correct D-Shackle Size:

When purchasing an anchor for your boat, it’s important to choose the correct D-shackle to connect your rope and chain securely to the anchor.

As a general rule, the recommended D-shackle size is one size up from your chain size. For example, if your chain is 6 mm, use an 8 mm D-shackle. If your chain is 7 mm, then an 8 mm or 9 mm D-shackle will provide the best fit and strength.

This ensures a secure connection and reliable performance when anchoring your boat.



Why Manson Anchors?

Manson Anchors are designed and manufactured in New Zealand, using high-tensile steels and precision fabrication techniques. They have achieved global certification, including approval by Lloyd’s Register EMEA as a “Super High Holding Power (SHHP)” anchor. Manson Anchors NZ+3Manson Anchors NZ+3West Marine+3

This certification means the anchor meets rigorous standards for setting performance, holding power and durability under extreme loading—giving insurance underwriters and boat owners high confidence in the gear.

Made in New Zealand — Proven Worldwide

Manson Anchors’ manufacturing facility in New Zealand ensures every anchor—from 2 kg to 100 kg—benefits from Kiwi engineering, quality welding, and strict testing protocols. As one user put it: “I have toured the Manson factory … the attention to detail … any vessel I own will always be fitted with a Manson Anchor.” Manson Anchors NZ+1

Thousands of boat-owners globally trust the Manson Supreme—whether anchoring in coral bays of the Pacific, muddy tidal flats of New Zealand, or sandy anchorages off the coast of the U.S.A. Outdoor reviewers evaluate its performance in sand, rock and mud and consistently rate it among the best. Practical Sailor+1

Insurance & Safety Approved

Because of the SHHP certification and independently verified high holding power, many insurance underwriters recognise the Manson Supreme as a premium anchor choice. With the right size anchor, proper chain/rode and deployment technique, you can demonstrate significant risk mitigation—reducing chances of dragging, grounding or anchor failure in adverse conditions. Many seasoned skippers consider the anchor as “insurance” for their vessel and crew.

Core Construction & Technical Highlights

Shank – Constructed from high-tensile steel (Bisalloy 80) rated at approx. 780 MPa, compared to mild steel at ~260 MPa. The result: far greater resistance to deformation under load.

Fluke – Reinforced double-skinned laminated toe section ensures the forward loading zone is extremely robust.

Roll-bar / Self-Righting Design – Rather than relying solely on tip weight, Manson uses a roll bar to ensure the anchor self-rights and engages the seabed correctly. This enhances both setting speed and holding power. West Marine+1

Dual-Shank (Dual Slot) Feature – One slot is optimised for rock and coral seabeds (“rock slot”), allowing the shackle to slide and free the anchor if snagged. The other slot (“sand slot”) is ideal for sand, mud, weed, and grass bottoms, as well as heavy-weather mooring. superyachtdoc.com

Penetration & Surface Area – The sharpened spear-head, combined with a broad fluke area, ensures excellent bite and deep embedment. Independent testing shows superior fluke engagement compared to many legacy anchor types. Practical Sailor+1

Robust Welding & Fabrication – Welders are Lloyd's ticketed; raw materials and production processes are audited and certified. Quality assurance is real. superyachtdoc.com

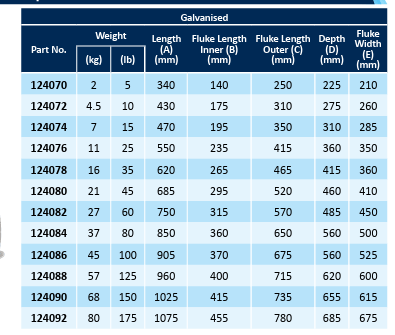

Sizes & Range (Galvanised Supreme)

The Galvanised Supreme anchor range covers weights from 2 kg up to 100 kg, positioning it to suit a wide variety of vessels:

• 2 kg – Micro craft, tenders
• 5 kg – Small runabouts, day-boats
• 10-15 kg – Trailer boats, small cruisers
• 20-30 kg – Offshore fishing boats, mid-sized cruisers
• 50-100 kg – Large yachts, commercial craft

Despite the size range, all models share the same design philosophy and robust construction. You get top-tier engineering with either the 5 kg or 100 kg version.

Why Choose the Galvanised Version?

The galvanised finish offers excellent corrosion resistance for saltwater use, whilst keeping costs lower than stainless steel. It’s ideal for most applications where aesthetics are secondary to performance. For those seeking ultimate finish or longevity (especially in stainless steel environments), the stainless steel version is available. Manson Anchors NZ+1

Uses & Applications

With its versatile design, the Manson Supreme Galvanised Anchor is suited for:

• Cruiser yachts anchoring overnight off exposed coastlines
• Fishing boats anchoring in rocky reef or coral bottom environments
• Commercial workboats needing high-holding anchors in tidal or current sweeps
• Mooring setups or remote anchorage where reset speed and holding are critical
• Insurance compliance for vessels with heavy windage or high risk of dragging

Whether you’re anchoring for the night in a remote bay, mooring in a tidal harbour, or simply want peace of mind when the conditions deteriorate—the Supreme gives you that extra margin of safety.

Key Benefits

1. Fast Setting – The roll-bar design and spear head allow the anchor to set quickly, even with short scope or challenging seabeds.

2. Super High Holding Power – Certified SHHP means it holds up to 4× the load of typical anchors (depending on vessel/rode). West Marine

3. Versatility Across Seabed Types – Dual-shank slots allow effective use in sand, mud, grass, rock and coral.

4. Strongest Shank in Class – Shank strength elevated vs. competitors—reducing risk of deformation or failure under extreme loads. West Marine

5. Peace of Mind & Insurance Value – With high certification and proven performance, reduces risk of dragging, grounding or anchor failure—critical for insurance and skipper confidence.

6. NZ-Made Quality & Support – Manufactured in New Zealand with rigorous quality control; local support, parts, and expert advice behind you.

7. Lifetime Guarantee Against Breakage – Manson offers lifetime guarantee (under normal use) against breakage in Supreme anchors. Manson Anchors NZ+1

Selecting the Right Size & Matching Your Boat

When choosing an anchor, several variables matter: boat displacement, windage, mooring location, expected weather, seabed type, chain or rope rode length, and scope. Manson provides a sizing guide, but best practice is to size up rather than down—especially in exposed anchorages. Independent reviews emphasise that even top-anchors underperform if rode-scope is inadequate or the bottom type is poor. Mantus Marine+1

Important factors:

• Use appropriate chain/rode length and ensure heavy-chain for shock absorption.
• Practice setting and retrieval in known good bottom to familiarise yourself with the anchor’s behaviour.
• Bow roller fitment: Manson Supreme is shaped to fit standard bow rollers but check fit before purchase. Some users note it may take more space for stowage. Practical Sailor+1

Real-World Feedback & Performance

Independent testing (e.g., Practical Sailor) found that the Manson Supreme sets well in sand, rock and mud, showing excellent fluke penetration and holding performance. Practical Sailor+1

Forum users worldwide share stories of extreme holds:

“The anchor didn’t budge … rode out hurricane Joaquin (25 miles west of the eye).” Manson Anchors NZ

“Our Manson Supreme has not dragged in six months and visited 26 countries.” Manson Anchors NZ

While no anchor is fool-proof—correct setup, scope, chain and bottom assessment matter—many users say the Manson Supreme offers a step-change in security and confidence. Some criticisms exist (e.g., a user struggling with setting in sand) YBW Forum+1 but the consensus remains favourable when used and sized properly.

Benefits Summary

• Superior setting & reset performance — Fast embedding and secure hold.
• High tolerance for multiple seabed conditions — Sand, mud, grass, rock, coral.
• Reduced risk of anchor drag or failure — critical for safety, insurance and peace.
• NZ-made craftsmanship — verified materials, welding and QA.
• Lifetime guarantee — built-in long-term value.
• Range of sizes — from small craft to large yachts/commercial.
• Insurance-friendly — SHHP certification boosts credibility.
• Dual-shank flexibility — rock slot and sand slot for specific ground conditions.
• Self-launching and bow-roller compatible — installs easily on standard gear.

Why Buy From Action Outdoors?

At Action Outdoors (Auckland, New Zealand), we stock the full range of Manson Anchors—including the Galvanised Supreme series—from 2 kg to 100 kg. Our team offers expert installation advice, anchor sizing support, and local backing for warranty, service and parts. By choosing us you also benefit from fast local shipping, hands-on guidance and genuine factory support—not just a catalogue listing.

Final Thought

If there’s one investment onboard that can make the difference between a restful night and a stressful anchor drag, it’s the right anchor. The Manson Anchors Galvanised Supreme Boat Anchor delivers proven world-class performance, NZ-made quality, certification you can trust and the backing of owners globally. Whatever your boat size or anchoring environment, this anchor gives you the best chance of staying put, no matter what nature throws at you.
