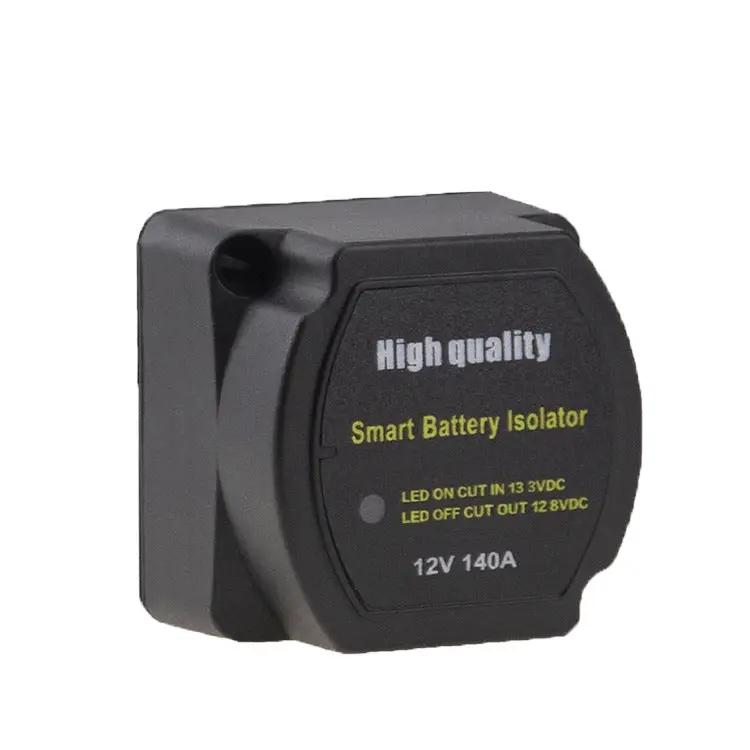

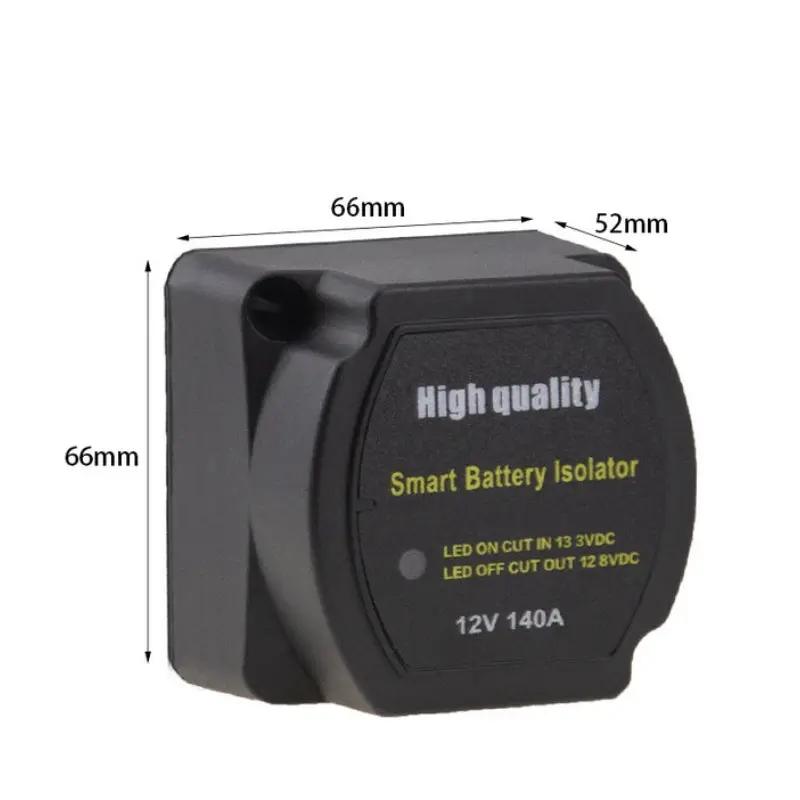

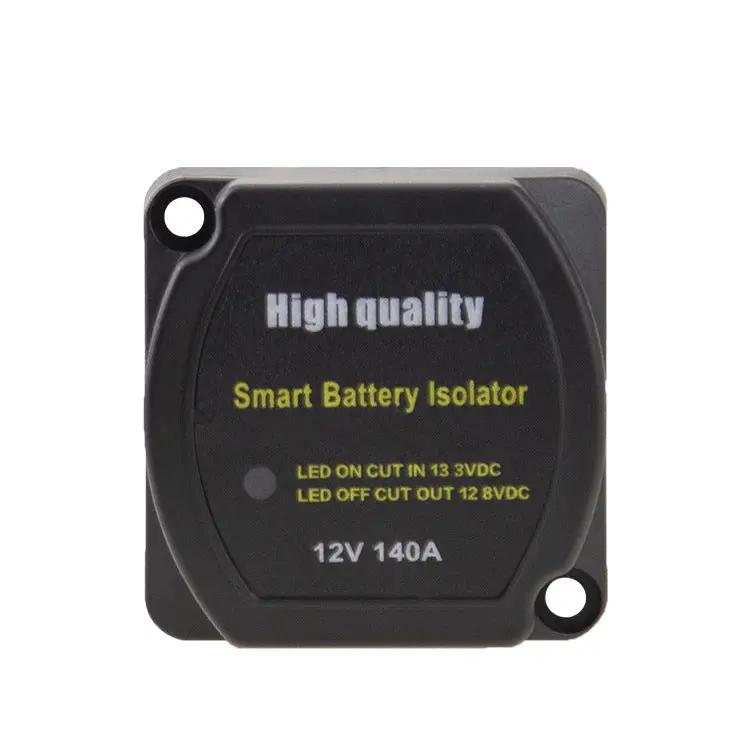

12V 140 Amp Dual Battery Smart Isolator

12V 140A Smart Dual Battery System Isolator Box Voltage Sensitive Relay VSR

Principle of use:
1. When the battery current is insufficient, disconnect the laying battery to ensure the charging and working of the main battery first.
2. When the main battery is full, it will automatically charge the auxiliary battery without affecting the power supply of electric equipment.
3. Automatically cut off the connection between the main and auxiliary batteries when not charging without worrying about the lack of power to start the engine.

Type: 12V Voltage Sensitive Relay
Continuous current: 80-100A
Instantaneous current: 125A
Current consumption-charging: 240mA
Current Consumption-Standby: 8m
Disengagement delay: 5-10 seconds
Fuse: 80Amp
Power stud: M6 copper screw nut
Surge Protection: Built-in
Product net weight: 190g

Package Included:

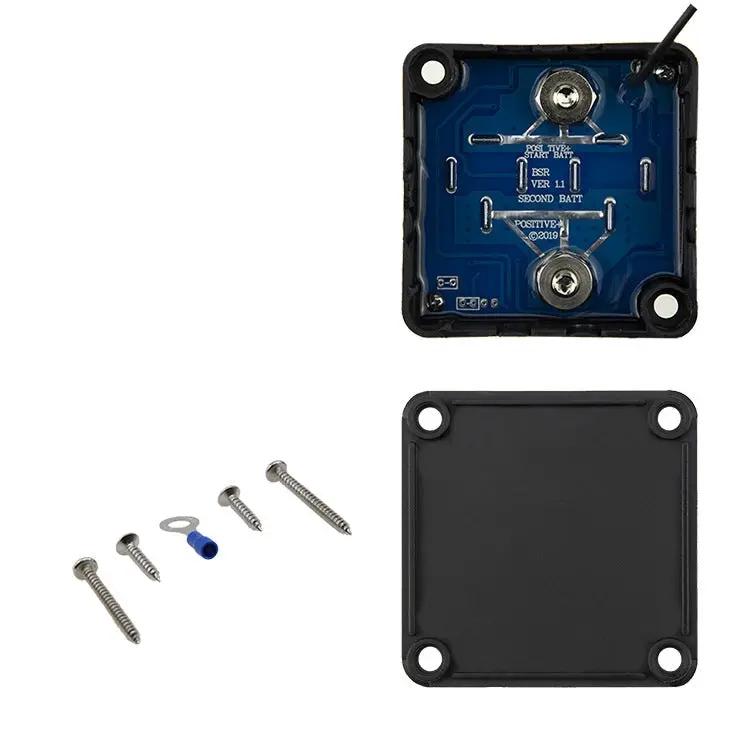

1 x 140A Smart Dual Battery System Isolator Box
