28L Degassing Vacuum Chamber Pump Remove Air/Bubble From Resin And Silicone Systems Pre-order ONLY!
Supplier Direct/Internet Order Only
* Please do not visit the shop
(Inc. GST)
Freight Quote Required
This item requires freight delivery. For the best price, fill in the form below and we'll get back to you with a quote.
- Delivery: 3–5 working days (may be longer depending on destination)
- Main towns & business addresses only
- No rural delivery (RD addresses) — contact us first to confirm
- Depot collection may be required
🔗 Or organise your own freight / get your own quote:
Pre-order ONLY.

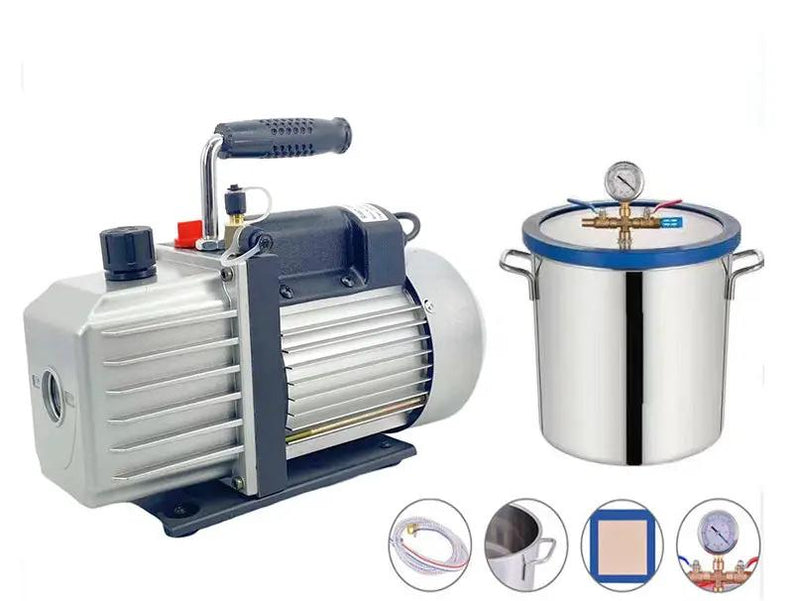

This degassing vacuum chamber is designed to remove air from resin and silicone systems prior to pouring.
Chamber Features & Engineering
The chamber is manufactured from sturdy 1.5mm 304 grade Stainless Steel. A clear 20mm acrylic lid provides perfect visibility into the chamber during the degassing operation whilst a custom silicone seal ensures reliable and fast sealing of the chamber.
Also includes two welded handles for easy moving.
Internal Dimension: W*350mm Dia*350mm L*350mm
Volume: 28L
Vacuum Pump Features & Engineering
High quality valves, fittings, oil and a glycerine-filled vacuum gauge complete the chamber and ensure years of trouble-free service.
Flow Rate: 6CFM 170L/MIN
Ultimate Vacuum: 5Pa, 0.05Mbar
Stages: 1
Motor Size: 3/4 HP
Voltage: 240 V
Oil Capacity: 300 ml
Dimensions: 360mm x 135 mm x 270 mm
Weight:19 kg.
One-stage oil-sealed rotary vane
Wide Stable Base Plate
See-through oil sight glass
Lightweight Aluminium Design.
Some assembly required
Quick assembly in 10 minutes. Easy to follow instructions (PDF format)
