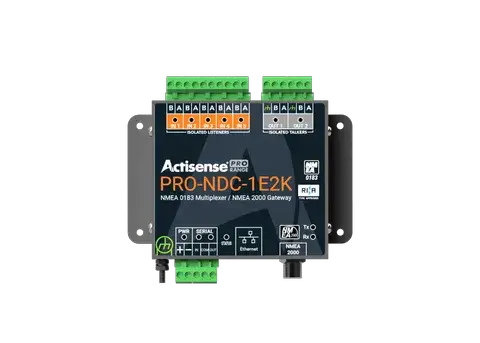

Actisense PRO NDC-1E2K NMEA 0183 Multiplexer NMEA 2000 Gateway

On the water, you don’t want data bottlenecks or mismatched interfaces slowing you down. The Actisense PRO NDC-1E2K is a purpose-built solution that seamlessly bridges legacy NMEA 0183 devices with modern NMEA 2000 networks while delivering data reliably over Ethernet. It’s more than a multiplexer—it’s a robust gateway designed for real-world marine environments where every sentence matters.

Why the PRO NDC-1E2K stands out

• Five opto-isolated NMEA 0183 inputs provide galvanic isolation to protect connected sensors from noise, surges, and fault conditions—crucial when mounting near high-current devices or antennas.
• Two ISO-Drive NMEA 0183 outputs deliver safe, isolated transmissions to display units, plotting devices, or exhibitors without compromising other gear on the network.
• Built-in NMEA 2000 connectivity means you can directly forward data to an NMEA 2000 backbone without adding a separate gateway, simplifying wiring and reducing failure points.
• Ethernet streaming for NMEA 0183 and NMEA 2000 data enables modern systems, tablets, chartplotters, and onboard servers to access live data without extra converters.
• Automatic baud-rate matching ensures 38400 and 4800 baud devices operate together through the same multiplexer, eliminating manual reconfiguration.
• Sentence-level filtering lets you selectively block or pass specific sentences to outputs, dramatically reducing bandwidth usage on busy networks.
• Web-based configuration means setup is quick and OS-agnostic—no special software required, just a browser on any device.
• Bi-directional serial port enables two-way communication between legacy equipment and newer systems, opening pathways for data sharing that used to require multiple adapters.
• RINA Type Approved and rugged stainless steel housing provide marine-grade reliability for leisure boats, commercial vessels, and Type-approved installations.
• Diagnostic LEDs and status indicators offer clear at-a-glance health checks, so you can spot issues before they impact navigation or monitoring.

What you can achieve with the PRO NDC-1E2K

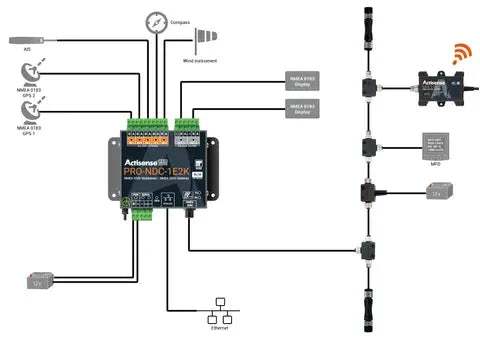

Imagine integrating a fleet of classic NMEA 0183 sensors (wind, depth, radar or AIS) with a modern NMEA 2000 backbone and an onboard Ethernet network. The PRO NDC-1E2K does the heavy lifting—routing data where you need it, filtering out noise, and ensuring critical information reaches the devices that rely on it. The result is a cleaner network with fewer dropped sentences and improved overall situational awareness.

Ideal use cases

• Small to mid-size sailing and commercial vessels that maintain a mix of legacy sensors and modern NMEA 2000 equipment.
• Marinas, inspection vessels, and research boats that require reliable data routing with type-approved hardware for regulatory compliance.
• Systems where you want to stream NMEA data to Ethernet-enabled displays, PCs, or cloud-connected monitoring tools.

Key specifications at a glance

• Inputs/Outputs: 5 configurable NMEA 0183 inputs (opto-isolated) and 2 ISO-Drive NMEA 0183 outputs
• Networking: NMEA 0183 Ethernet streaming; NMEA 2000 Ethernet streaming; NMEA 2000 output via M12
• Serial: 1 bi-directional, configurable, isolated serial port
• Configuration: Web-based UI for easy setup; automatic baud rate matching
• Protection: Fully isolated inputs/outputs with ISO-Drive technology
• Diagnostics: Multi-LED indicators + bi-color status LED for quick health checks
• Durability: Panel-mountable design with stainless steel housing
• Compliance: Type-approved (RINA) for both leisure and commercial installations
• Firmware: Free updates to keep the device future-proof

Why choose Actisense

Actisense has built its reputation on practical, field-tested marine electronics that deliver tangible reliability. The PRO NDC-1E2K embodies that ethos with a thoughtful balance of isolation, flexibility, and performance. It removes guesswork from complex data routing, protects your instruments, and helps you squeeze more value from every sentence your onboard network generates.

Incredible value for a professional-grade gateway

Whether you’re outfitting a pleasure craft or a commercial vessel, the PRO NDC-1E2K provides a single, robust solution to interconnect disparate data streams. Its combination of five opto-isolated NMEA 0183 inputs, two ISO-Drive outputs, NMEA 2000 integration, and Ethernet streaming means you can design cleaner, more reliable marine networks—without sacrificing compatibility or future-proofing.
