ANCEL BM200 Input Voltage 6V-20V Battery Monitor

SPECIFICATIONS
1. Product Name: Battery Monitor
2. Bluetooth Version: 4.2
3. Bluetooth Name: BM200
4. Input Voltage: DC6v - 20V
5. Voltage Accuracy (9V-16V): ±0.03V
6. Average Working Current: 1.5mA
7. Working Temperature: -40C-90C(-40F-194F)
8. Reverse Connection Protection: Buit in
9. Short-circuit Protection: Built in
10. Waterproof: lP67
11 . Dimensions: 55x41x12.5mm

Main Functions

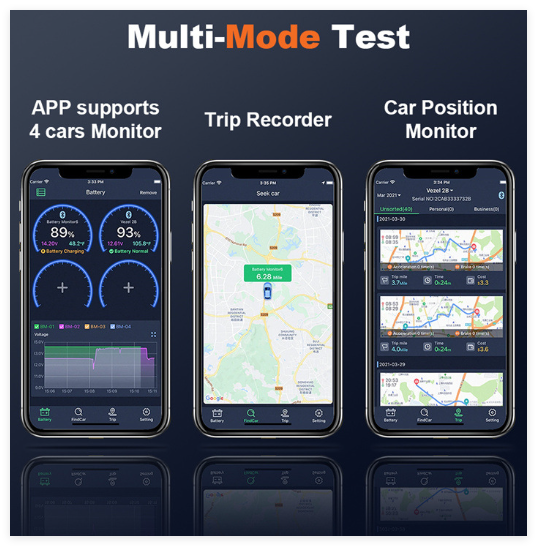

1. Display the real-tíme battery power, voitage and temperature
2. Guide user back to the vehicle by automatically recording the parking position.
3. Record the track, cost and driving habits of each trip, and can export data in Excel
4. Automatically monitor the starting and charging systems of the vehicle, and activelynotify if abnormal
5. Support multiple devices, one page can view 4 devices at the same time.
6. Store historical data in device up to 30 days(voitage, charge percentage andtemperature).

Key Features
1.Built-in recoverable fuse and protection of reverse connection.
2.Save historical data in device every 2 minutes. Historical data can be used to trace
battery usage
3.Able to manually turn on or off the track record function.
4.Free app download and free firmware upgrade.

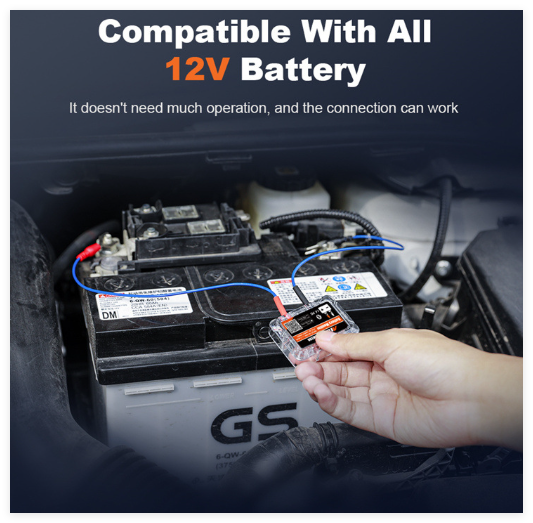

5.Suitable for 12V lead-acid and LiFePO4 starting batteries of vehicle.

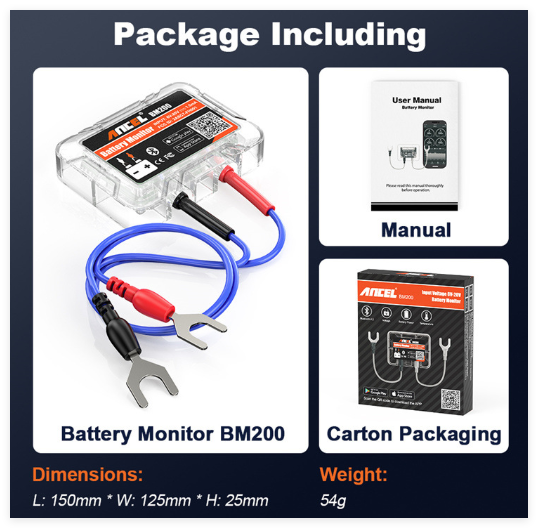

Package included:
1x ANCEL 12V Car Battery Tester - BM200
1x User Manual
