ASM

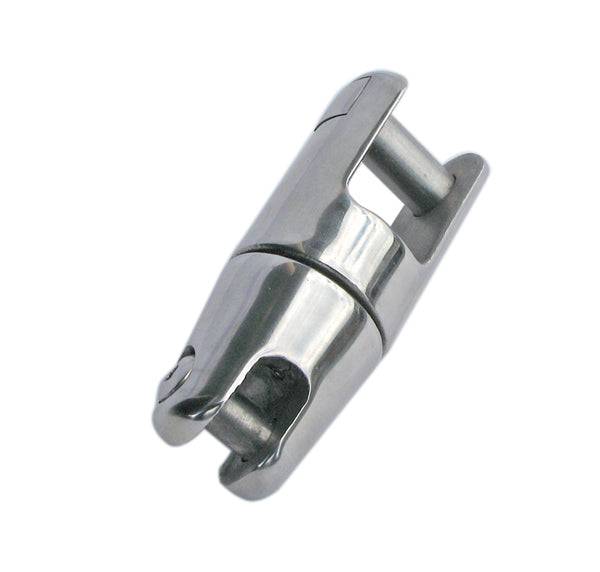

Anchor Swivel for 10mm to 12mm Chain
Sent from NZ Supplier (1-2 Days)
High-Quality Anchor Swivel for 10-12mm Chain 95mm (l) x 38 (w) - Suits 15kg - 30kg Anchors
Anchor Swivel for 10-12mm Chain
Features
Suits 15kg - 30kg Anchors
Rated to
3000lbs / 1250kg - Working Load
12500lbs / 5000kg - Maximum Load
The oval-shaped joint allows perfect sliding of the anchor through the bow roller with no risk of damaging the components. Each unit is quality tested and with stamped specifications.
Anchor swivels are designed to avoid twists on the chain/rope when launching the anchor. Tidal anchorages allow vessels to rotate around the anchor and create a situation where the chain or rope twists. The anchor may come up sideways or upside-down and get caught and obstructed on the bow roller. Anchor swivels prevent this.
Installing the swivel directly onto the shank of an anchor is not recommended as they are not designed for lateral loads. Installing inline with a few links of chain between the anchor and the swivel is good practice.
Dimensions
95mm (l) x 38 (w)
Connection Pins Dia - 12mm AND 10mm
5-2024
