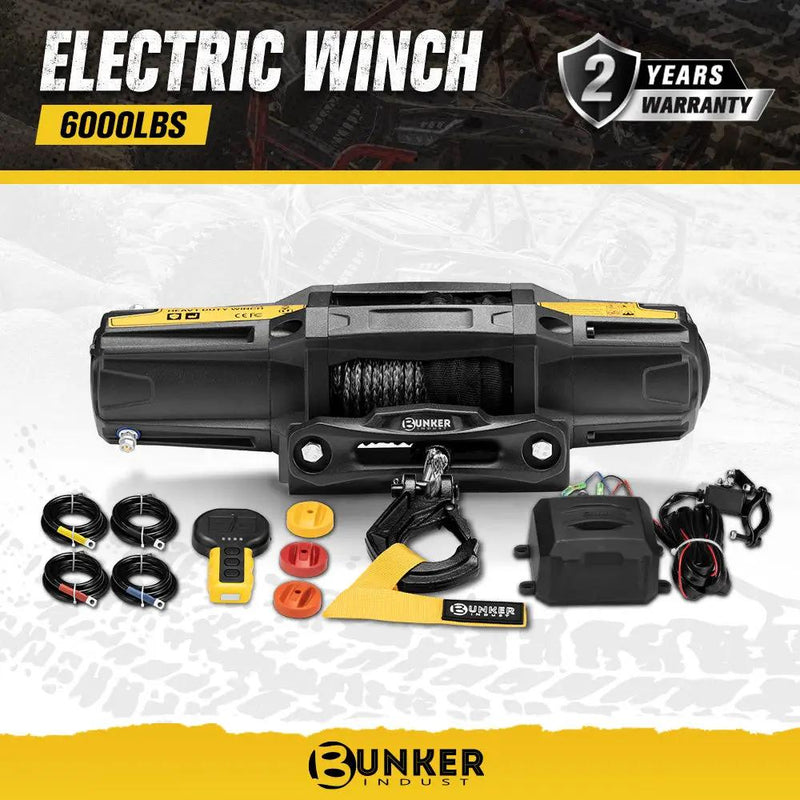

Bunker Indust 6000 Lbs Electric Winch 12V for UTV/ATV with Synthetic Rope

When you’re pushing through rough terrain, you need a winch that’s ready to back you up with serious pulling power and dependable reliability. The Bunker Indust 6000 Lbs Electric Winch delivers on that promise, engineered for quick, confident recoveries on UTVs and ATVs alike.

Power, speed, and pulling capability

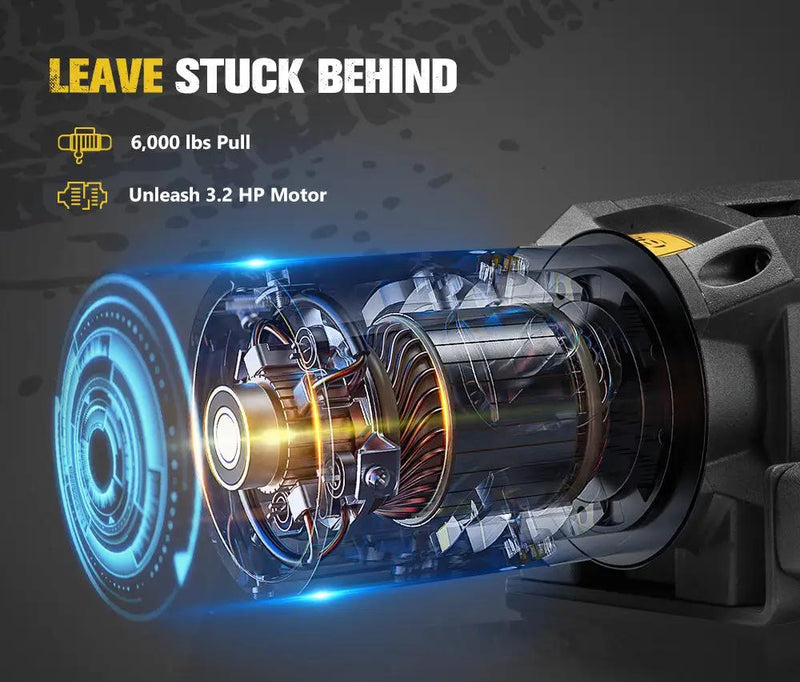

• 3.2 HP permanent magnet motor for robust, steady torque when you need it most.

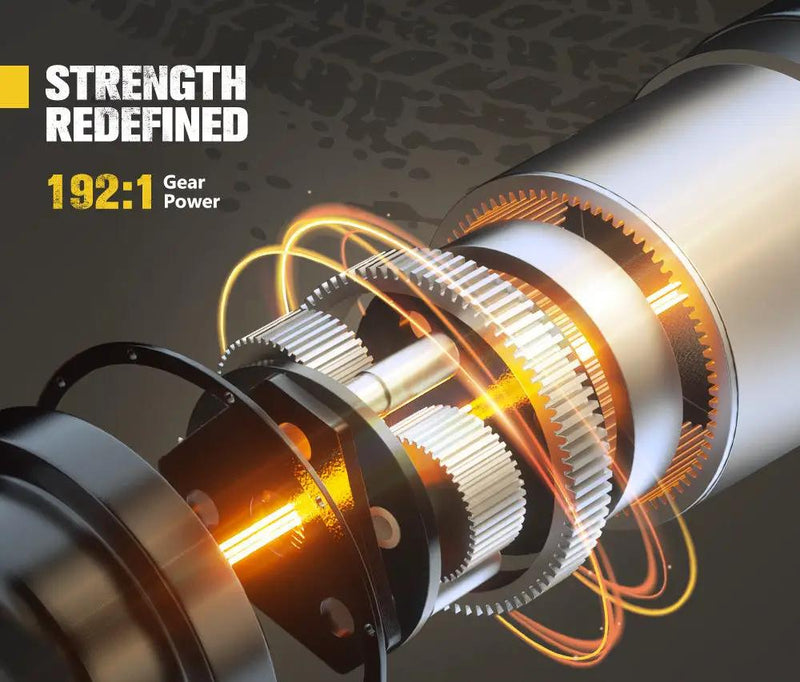

• 3-stage planetary gear train with a 192:1 gear reduction for strong low-speed pulling and smooth line control.
• Single-line pull rated at 6,000 lbs (2,722 kg) with 15 meters of UHMWPE synthetic rope for safer handling and improved rope longevity.
• Unmatched rope performance with a 7,716 lbs (3,500 kg) breaking strength and a temperature-resistant sleeve for added protection.

Rugged build designed for the outdoors

• Aluminum housing finished in matte black powder coating, paired with UV-resistant treatment to endure sun, mud, and rain.

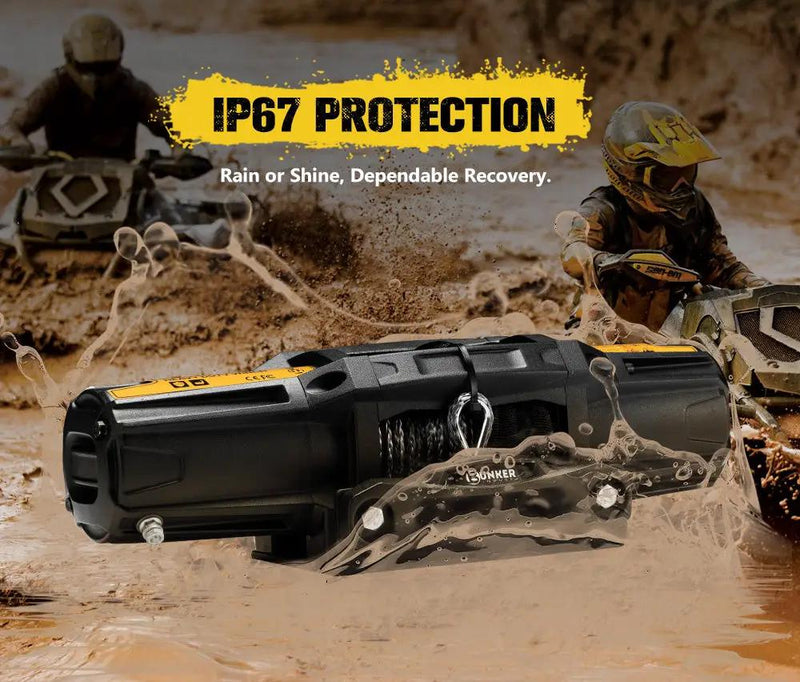

• IP67 waterproof rating for serious outdoor use and mud-filled recovery scenarios.
• Strengthened drum with a steel-reinforced design to reduce rope wear and prepare you for future upgrades if needed.

Braking, control, and convenience

• Automatic load-holding brake delivers secure stops on steep inclines and during tricky recoveries.

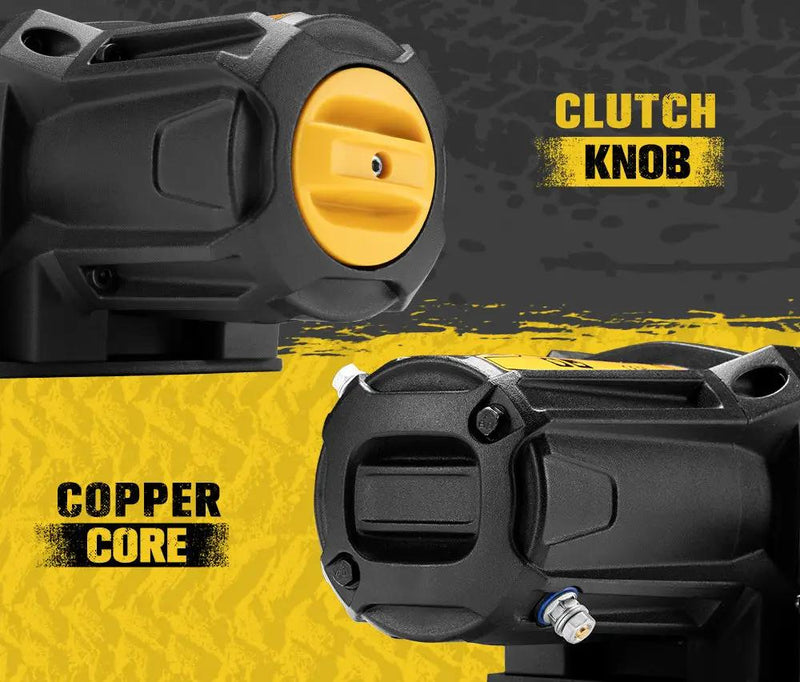

• Free-spooling clutch for easy rope payout and precise line control.

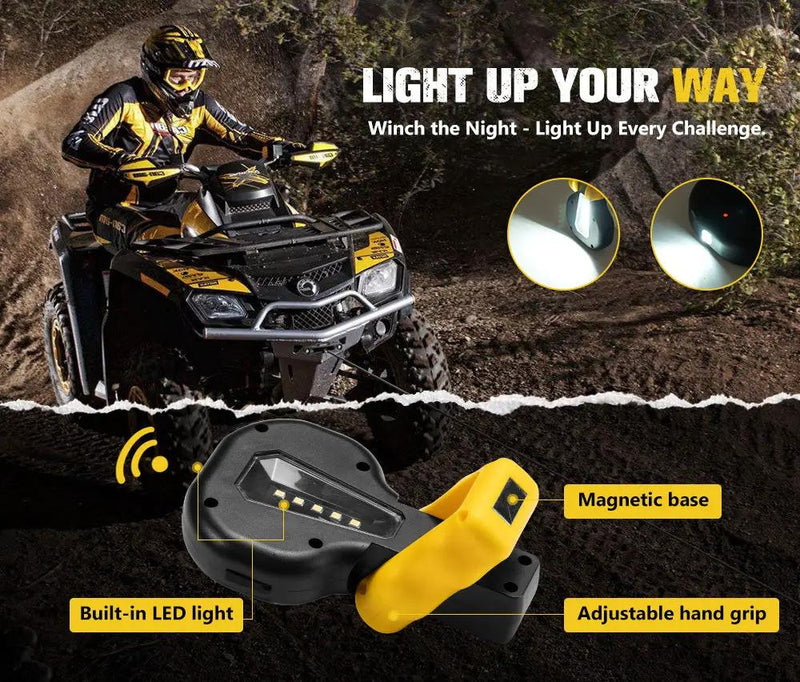

• Remote controller with integrated LED work lights doubles as a handheld work light; wired or wireless control options provide flexible winching in the field.

Installation, compatibility, and practical details

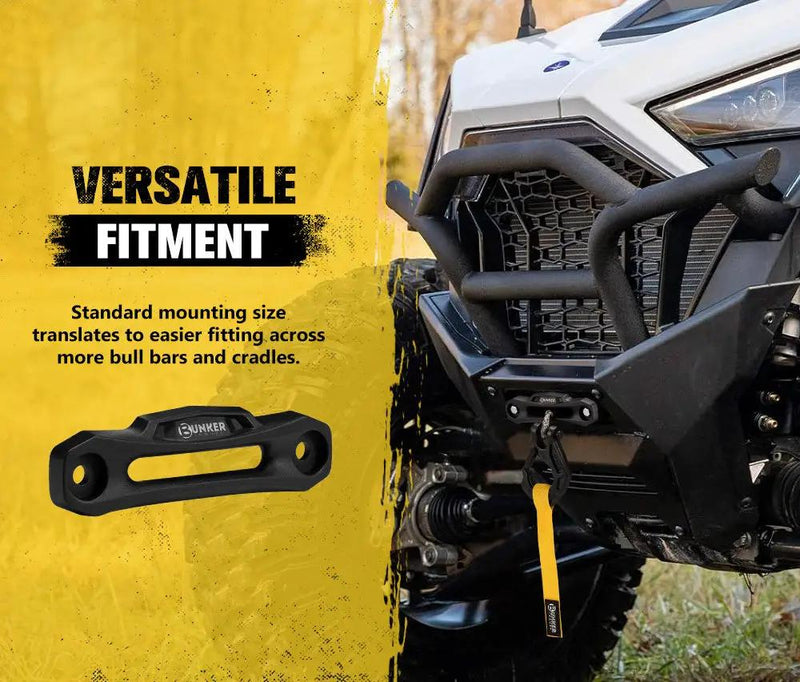

• Bolt-on installation designed for quick mounting on UTV/ATV with a mounting bolt pattern of 168 mm x 74 mm.
• Designed for 12V electrical systems with a recommended battery of 175 CCA to ensure reliable start-up and performance.

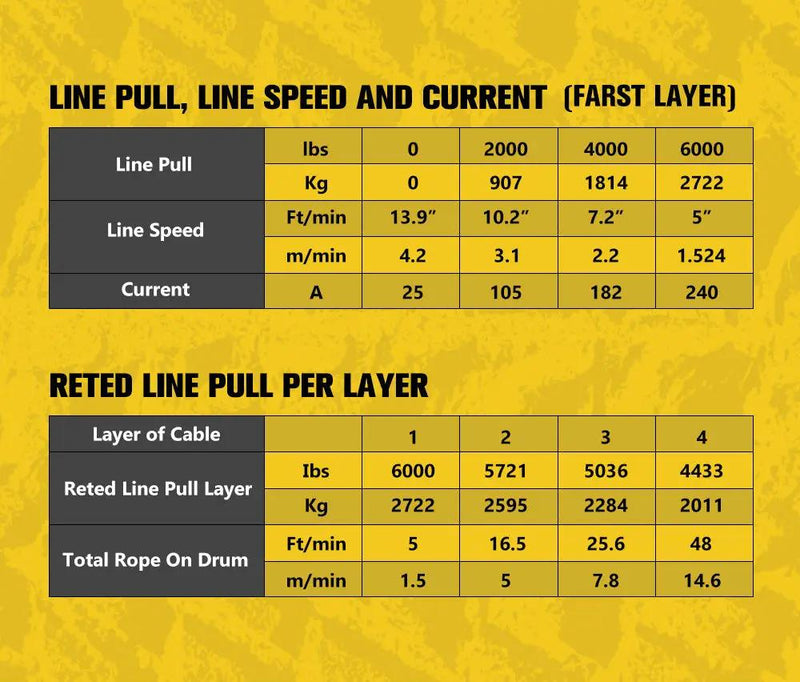

• Full-load line speed of 1.524 m/min and no-load line speed of 4.2 m/min provide predictable, steady winching in real-world conditions.
• Maximum current draw reaches up to 240 A under full load for a powerful, responsive pull when recovering from challenging spots.

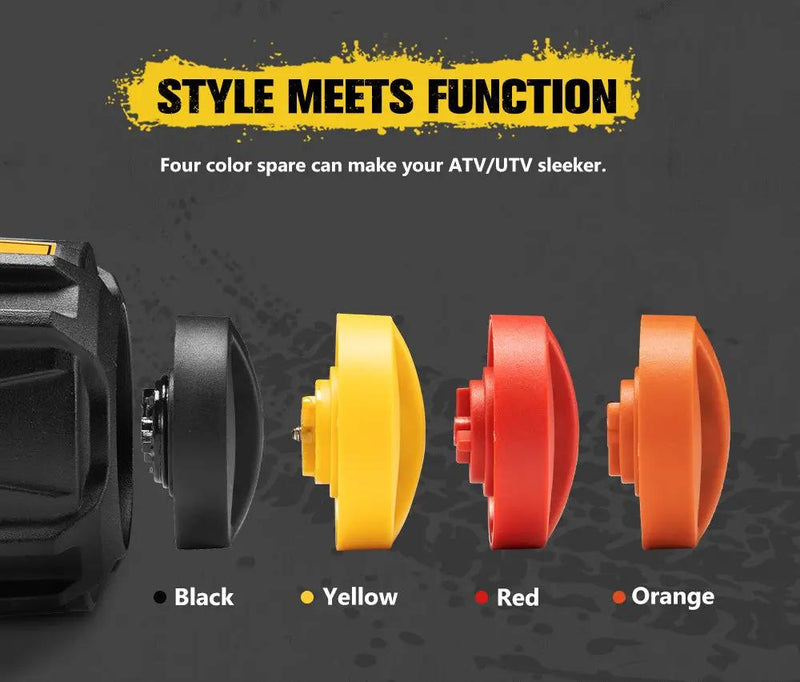

• Clutch caps offered in yellow, orange, red, and black to tailor the look of your rig while maintaining ergonomic control, even with gloves.

Technical snapshot

• Housing: Aluminum; Finish: Matte Black Powder Coating
• Hawse: Aluminum; Hook: Forged Steel
• Waterproof: IP-67
• Line Pull (Single Line): 6,000 lbs (2,722 kg)
• Motor: 3.2 HP (2.4 kW); Permanent Magnet
• Gear Train: Differential Planetary; 3-Stage
• Gear Reduction Ratio: 192:1
• Free Spooling Clutch: Turn
• Drum Diameter/Length: Ø50.08 mm x 127.5 mm
• Brake: Automatic Load-Holding
• Duty Cycle: Intermittent Per SAE J706 Section 6.2

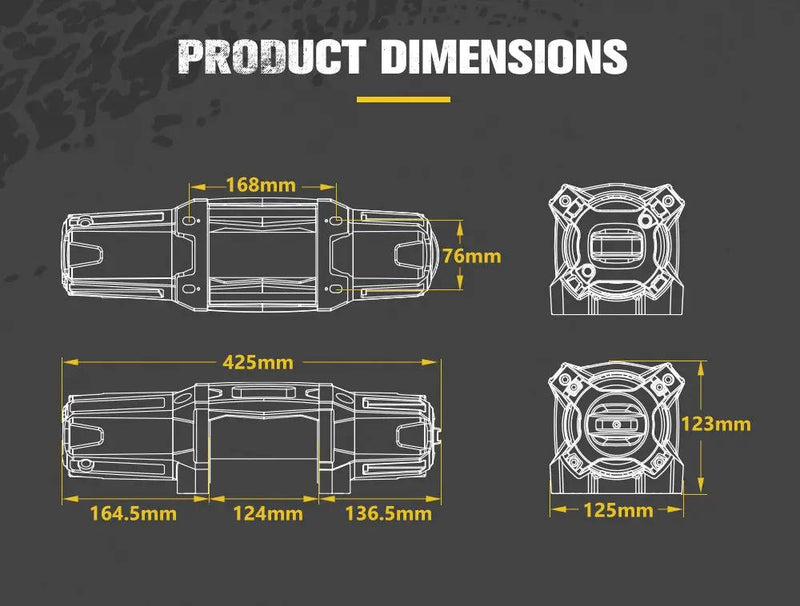

• Mounting Bolt Pattern: 168 mm x 74 mm
• Remote Controller: 433 MHz; Range up to 15 m; 5V input

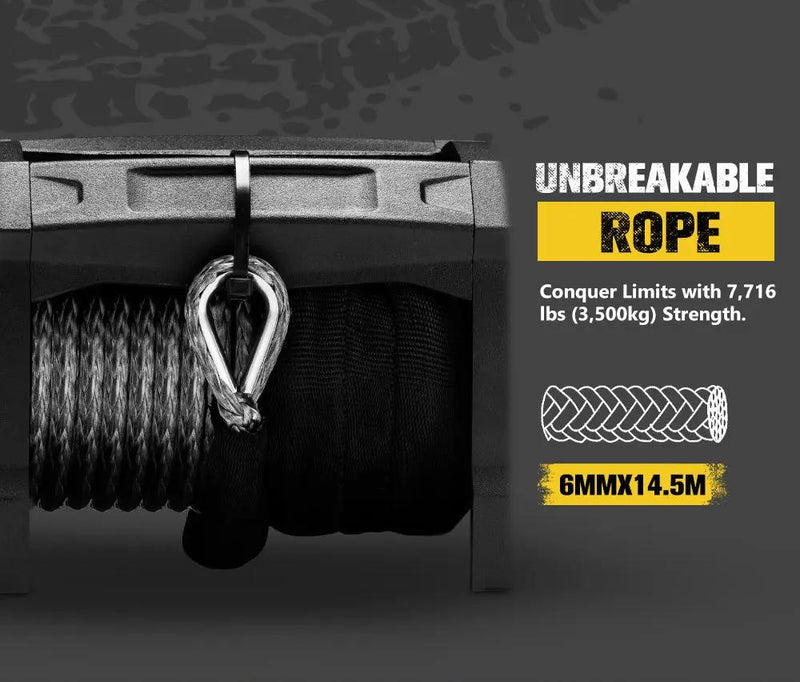

• Rope: Synthetic UHMWPE; Length 15 m; Breaking Capacity 7,716 lbs (3,500 kg)

From quick bolt-on installation to rugged, field-ready performance, the Bunker Indust 6000 Lbs Winch is built to keep you moving. It’s the dependable choice for off-road recovery, with a compact footprint that fits most UTV/ATV setups and a setup that’s simple enough to get you back on the trail in minutes.
