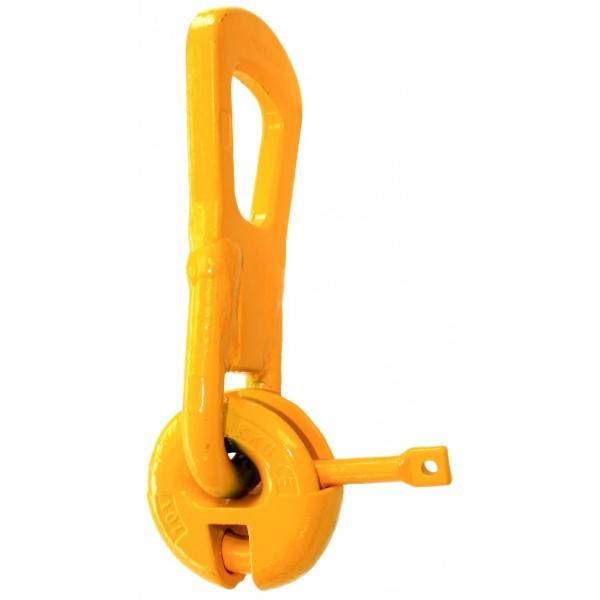

Concrete Lifting Ring Clutch - SLR G80 2.5T WLL

Concrete Lifting Ring Clutch - SLR G80 2.5T WLL - Super Cast Alloy Locking Ring Product Number SLR-547-0.7-2.5T

Concrete Lifting Ring Clutch - SLR G80 2.5T WLL

Features

• Super Cast Alloy Locking Ring
• Lifting Ring is Forged Alloy Steel
• 100 percent Magnaflux Crack Tested
• Yellow Powder Coated Protection
• Safety Factor of 5;1
• Rating; 2.5T WLL

[Reid Formida Type]

Annual Proof Load 1.2 x WLL [AS3850]

Markings on Clutch

Cast Locking Ring; SLR, CE, A-Z, Rating

Forged Ring; SLR, CE, WLL, Factory Batch No.

Box Quantities; 2.5T / 10, 5.0T / 4,

2.5T Ring Lifting Clutch Minimum Fit; 16mm Connector, 10mm Sling or Safety Hook

5.0T Ring Lifting Clutch Minimum Fit; 22mm Connector, 13mm Sling or Safety Hook

Ring Load Pin Dia; 2.5T / 13mm, 5.0T / 17mm

Please Note;

The 2.5T Ring Clutch will not fit the 1.3T Reid Eye Anchors

The 5.0T Ring Clutches will fit 7.0T Anchors but MUST NOT be used over 5.0T WLL

PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS

THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING

Product No. SLR-547-0.7-2.5T

F - 30.12.21
