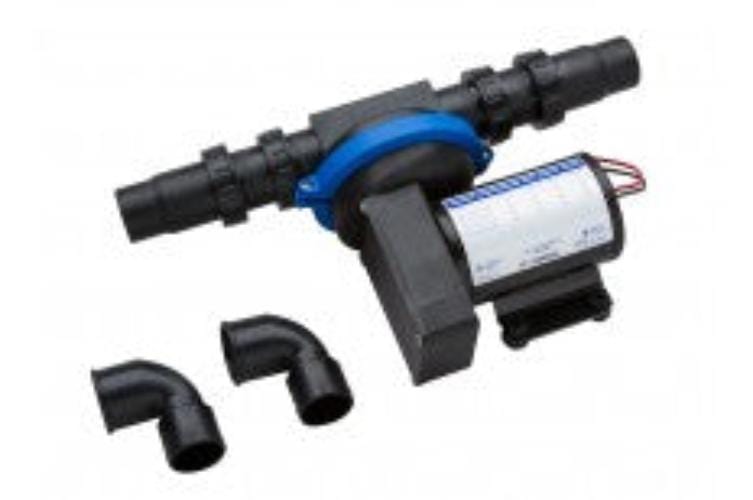

24V Diaphragm Waste Water Pump - Designed to Handle Grey, Bilge Water or unmacerated Toilet Waste. Code NS67-24V
Diaphragm Waste Water Pump 24V
Features
A single diaphragm pump is designed to handle grey, bilge water or unmacerated toilet waste.
• 24V DC motor
• Flow Rate: Up to 11L/min
• Pressure: 0.6 bar (8.7 psi)
• Diaphragm Material: Santoprene or Viton
• Maximum Fluid Temperature: 50°C (122°F)
• Inlet and Outlet Ports with Standard Inter
- Self-priming pump and can be run dry.
- Non-choke valve, no filter required.
- It can pump a mixture of air and water.
- In-lined inlet and outlet valves to allow free flow of debris.
- Double outlet valves to ensure continuous flow.
- An adjustable clamping ring allows the head assembly to be rotated 360 degrees to accommodate the plumbing position.
Product Code NS67-24V
