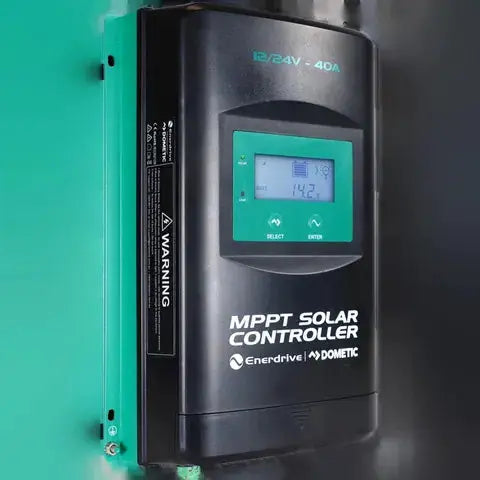

Enerdrive MPPT Solar Charge Controller 40A 12V 24V With Display

Unlock the full potential of every solar panel with the Enerdrive MPPT Solar Controller. Built to maximize energy harvest in real-world conditions, this 40A unit automatically adapts to 12V or 24V battery systems and delivers precise, rapid tracking of the maximum power point (MPP) to squeeze more usable energy from your PV array. Compared to traditional PWM charging, it can boost solar energy utilization by 20–30%, helping you run longer between charges on the road, at sea, or in remote off-grid setups.

Why this MPPT controller stands out

At the heart of Enerdrive’s design is an advanced MPPT control algorithm that minimizes MPP loss rate and loss time. The result is consistently high harvest efficiency, with tracking performance up to 99.5% and a maximum DC/DC transfer efficiency of 98.6%. The controller also delivers accurate recognition and tracking of multiple peak power points, so even fluctuating angles, shading, or changing light conditions won’t leave energy on the table.

Smart charging that protects and extends battery life

The Enerdrive unit features a self-adaptive three-stage charging profile (bulk, absorption, float) managed by a digital control circuit. This approach optimizes charge current during each phase, reduces thermal stress, and extends battery life for both traditional lead-acid types and modern lithium chemistries. Built-in temperature compensation adjusts charging behavior to keep batteries healthy in hot or cold environments.

Comprehensive protection and reliability for demanding environments

Design for durability matters when you’re off-grid. This MPPT controller is equipped with:

• Overcharge and over-discharge protection
• PV and battery reverse polarity protection
• IP33 ingress protection for dust and water splashes in outdoor installations
• Isolated RS485 communication port for future system integration
• CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)

A display you can rely on for real-time insight

The integrated LCD gives at-a-glance visibility into PV voltage, battery voltage, charging status, and real-time energy statistics. This immediate feedback helps you optimize panel placement, diagnose issues, and plan maintenance without hunting for data in a separate app or device.

Versatile, ready-to-use for diverse setups

Whether you’re wiring an RV, a boat, or a remote cabin, this controller is designed for practical versatility. It supports multiple load modes and provides robust protection features that let you monitor and manage energy without constant babysitting. A dedicated comms port opens pathways for future expansion, firmware updates, or remote monitoring, keeping your system future-ready.

Key specifications and practical impact

• Output current: 40A; System voltage: 12V or 24V (auto-detects)
• High-efficiency MPPT tracking up to 99.5% and DC/DC transfer up to 98.6%
• Wide MPP operating voltage range for flexible panel configurations
• Supports lead-acid and lithium battery chemistries
• Real-time energy statistics with an easy-to-read LCD
• Three-stage charging with temperature compensation
• Multiple load work modes for efficient energy management
• Robust protections: overcharge/over-discharge, reverse polarity, IP33
• Isolated RS485 port for future applications and integration

What makes Enerdrive different

Enerdrive combines industry‑leading MPPT speed with smart, adaptive charging and a durable, protection‑driven design. The result is a reliable solar partner that consistently extracts more energy from your panels, protects your battery bank, and provides clear, actionable data at a glance. It’s not just a charger—it’s a core component of a smarter, longer-lasting off-grid energy system.

Ready-to-use and supported

Included in the ecosystem is a comprehensive user manual to guide setup and optimization, plus ongoing support to help you tailor charging parameters to your batteries and usage profile. This controller is a proven choice for anyone who wants a resilient, high-performance MPPT solution that grows with their solar needs.
