ePOWER 2000W/12V Inverter w/ AC Transfer, RCD
Sent from NZ Supplier (1-2 Days)

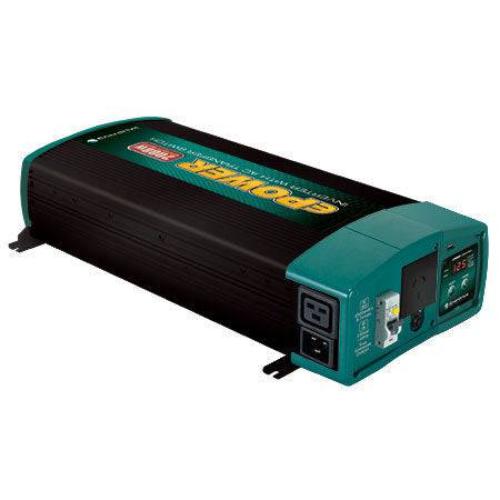

ePOWER 2000W 12V True Sine Wave Inverter with AC Transfer and Safety Switch - Converts your DC battery power to household AC power.
ePOWER 2000W 12V True Sine Wave Inverter with AC Transfer and Safety Switch
The ePOWER 2000W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive.
By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.
This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter.
This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The ePOWER 2000W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation.
All Enerdrive ePOWER Inverters are covered by our extensive 2-Year warranty.
ePOWER Inverter Features:
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
Model – Description |
EN1120X |
EN1120X-24v |
EN1126X |
|---|---|---|---|
AC Output Power |
2000W |
2000W |
2600W |
AC Output Current |
8.7A |
8.7A |
11.3A |
AC Output Voltage |
230 Vac / 50 Hz |
||
AC Output Waveform |
Sinewave (<3% THD) |
||
Nominal DC Input Voltage |
12.5 VDC |
||
No Load battery draw |
< 1.5 ADC |
||
DC Input Voltage operating range |
10.5 – 15.5 VDC |
21.0 – 31.0 VDC |
10.5 – 15.5 VDC |
Under Voltage Alarm |
11.0 / 12.1 VDC |
22.0 / 24.2 VDC |
11.0 / 12.1 VDC |
Under Voltage Alarm Recovery |
11.3 / 12.3 VDC |
22.6 / 24.6 VDC |
11.3 / 12.3 VDC |
Under Voltage Shutdown |
10.5 / 11.8 VDC |
21.0 / 23.6 VDC |
10.5 / 11.8 VDC |
Under Voltage Shutdown Recovery |
12.0 / 12.6 VDC |
24.0 / 25.2 VDC |
12.0 / 12.6 VDC |
Over Voltage Shutdown |
15.5 VDC |
31.0 VDC |
15.5 VDC |
USB Port |
5V, 750 mA |
||
AC Transfer Switch |
|||
Transfer Time |
< 30 ms |
||
Transfer Relay Rating |
16A (resistive load) |
||
AC Input socket IEC-C20 |
16A max |
||
AC Output socket IEC-C19 |
16A max |
||
AC Output Front GPO |
10A max |
||
Safety and Environmental |
|||
Conformance |
All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16 |
||
EMI / EMC |
CE EMC: EN/IEC 62040-2 category C1 |
||
Agency Markings |
RCM , CE |
||
Operating Temperature |
0°C to 40°C |
||
Storage Temperature |
-20°C to 60°C |
||
Relative Humidity |
5-90% non-condensing |
||
Operating Altitude |
Up to 3000 meters above sea level |
||
Weights and Dimensions |
|||
Weight |
5.9 kg |
5.9 kg |
7.0 kg |
Dimensions (W x L x H) |
435x230x115 mm |
560x230x115 mm |
|
Warranty |
2 Years |
||
Note: Specifications subject to change without notice.
ePOWER True Sine Wave Inverter EN1120X – EN1120X-24v – EN1126X User Manual
