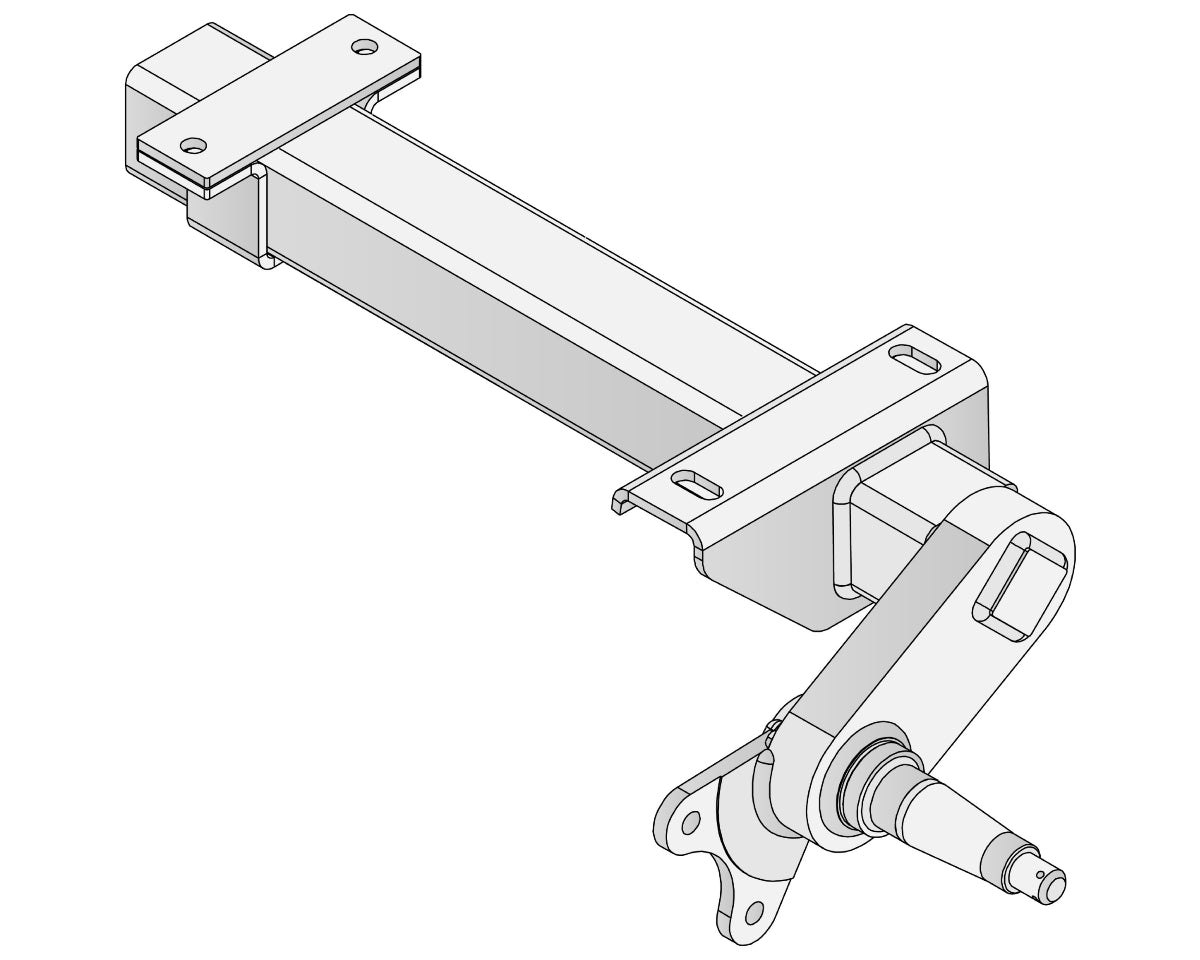

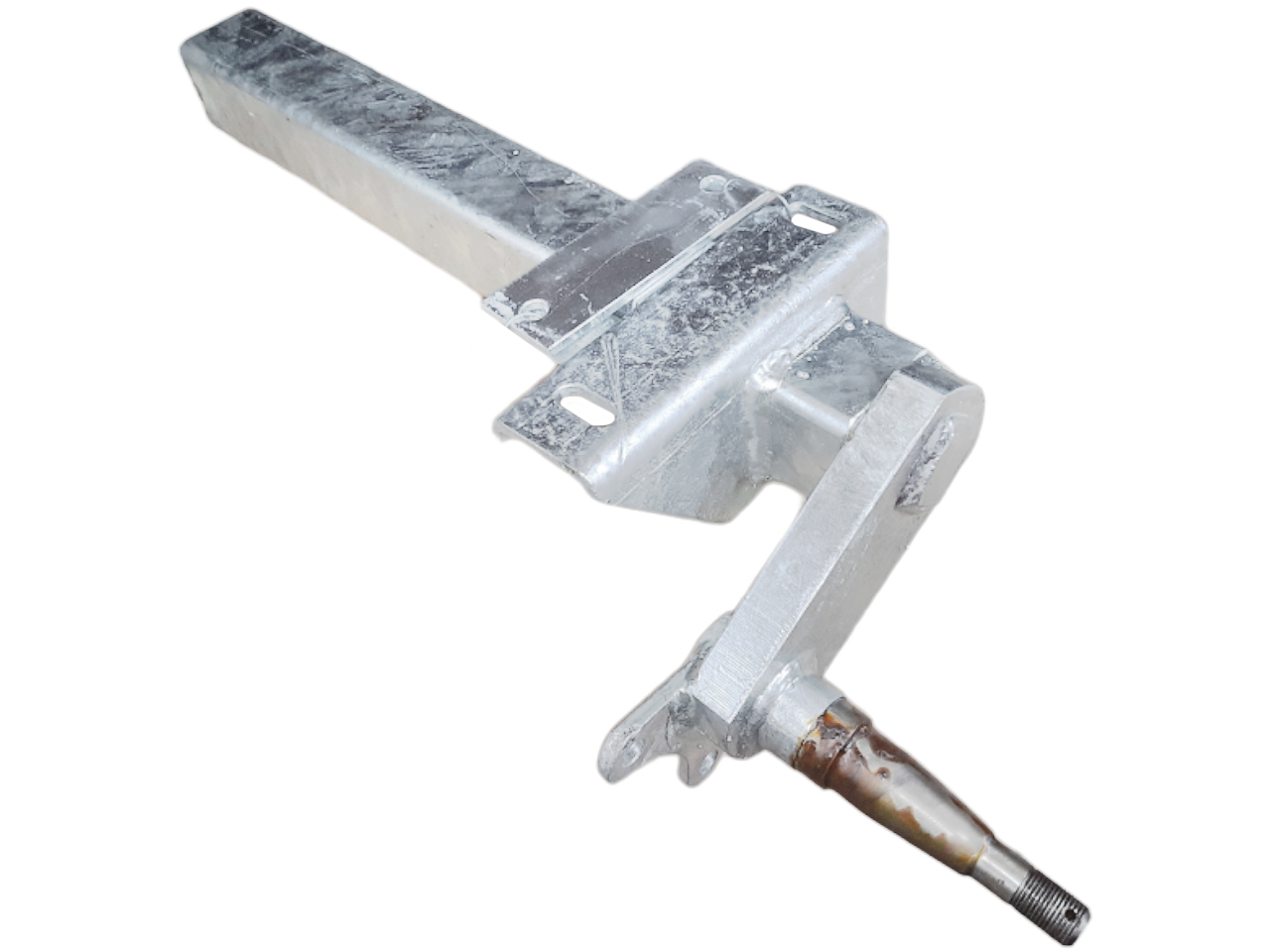

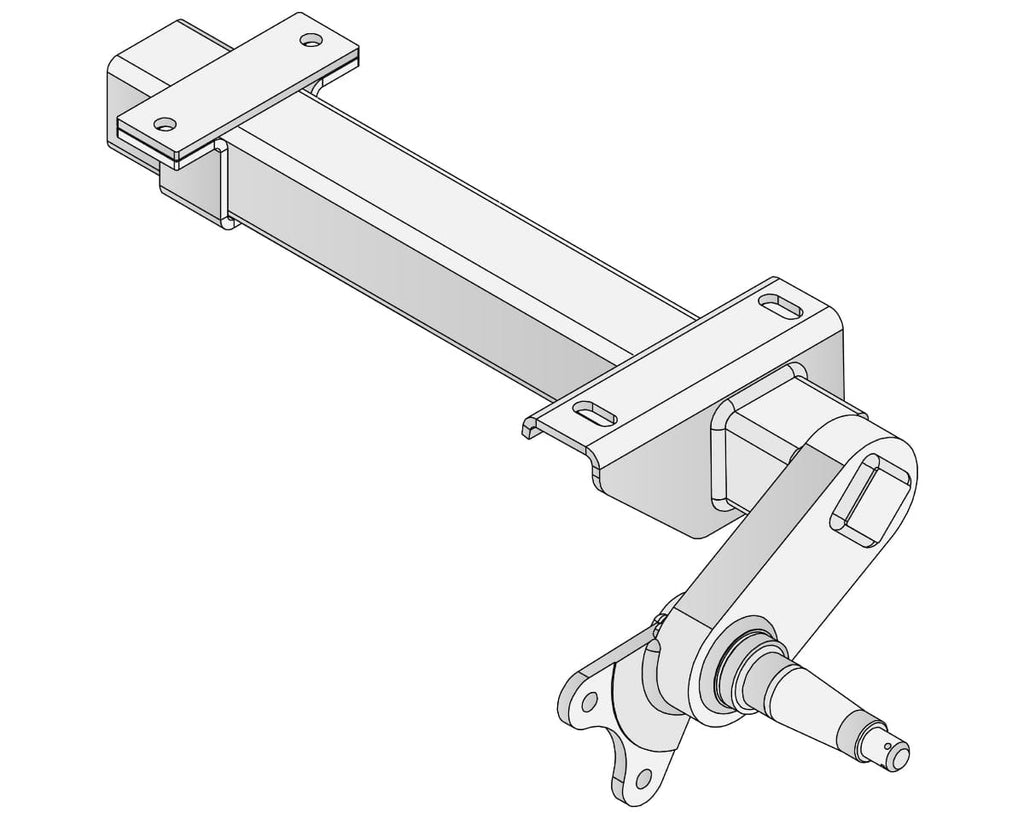

Half-beam Duratorque Right - 2200kg Per Pair T092040RH
Sent from Trojan (4-12 Days)
Half-beam Duratorque Right - 2200kg Per Pair T092040RH
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Non braked & disc braked, Rated 1100kg each
T092040RH
Note: These half type are sold & priced per side.
Each side has the same part number but it is followed by either LH or RH.
Those shown as RETRO fit are a direct replacement for very early versions.
The capacity stamped on each half is the capacity for 1 pair not each one.
SINGLE AXLE OR TANDEM.
If Tandem then the carrying capacity of each Duratorque is to be reduced by 25%
Specifications

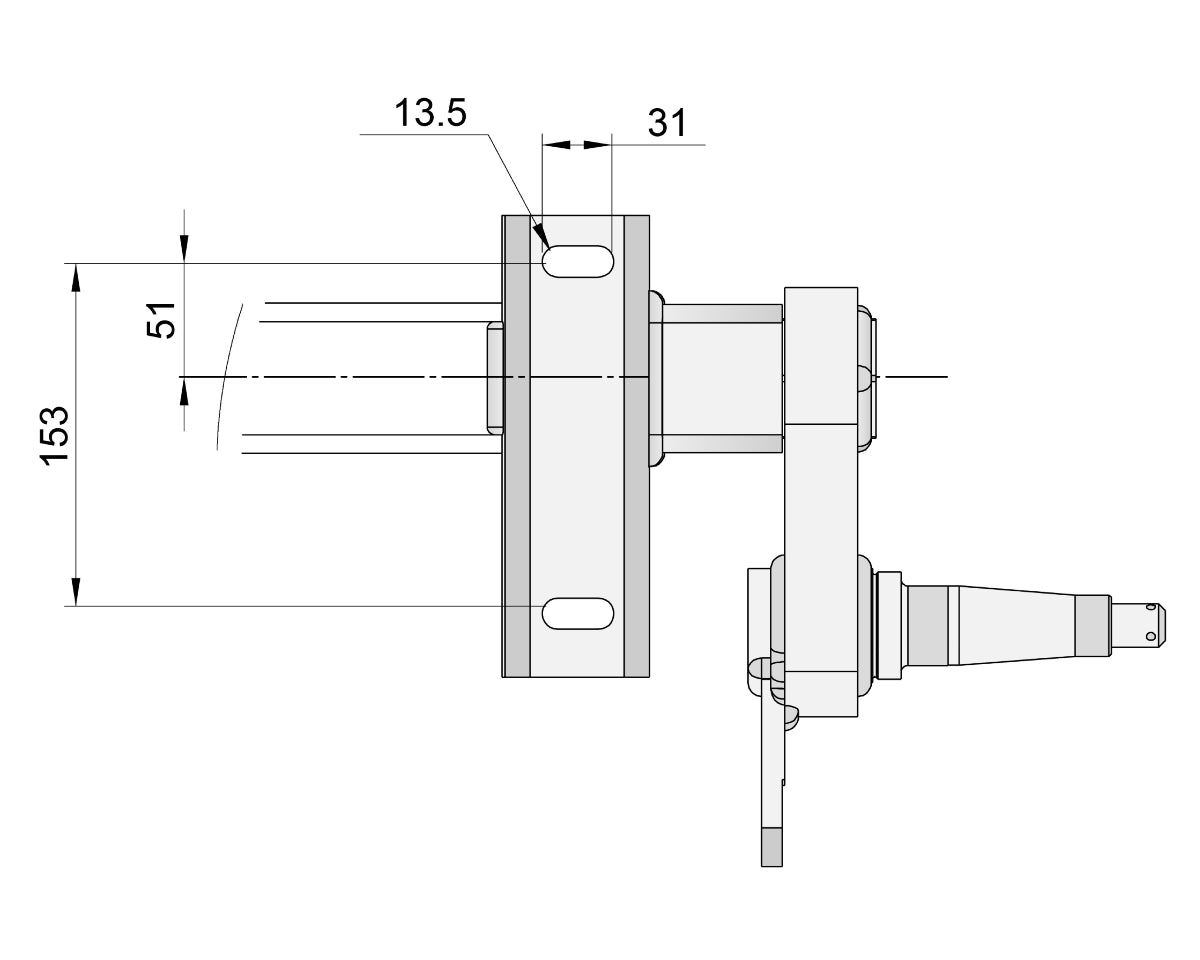

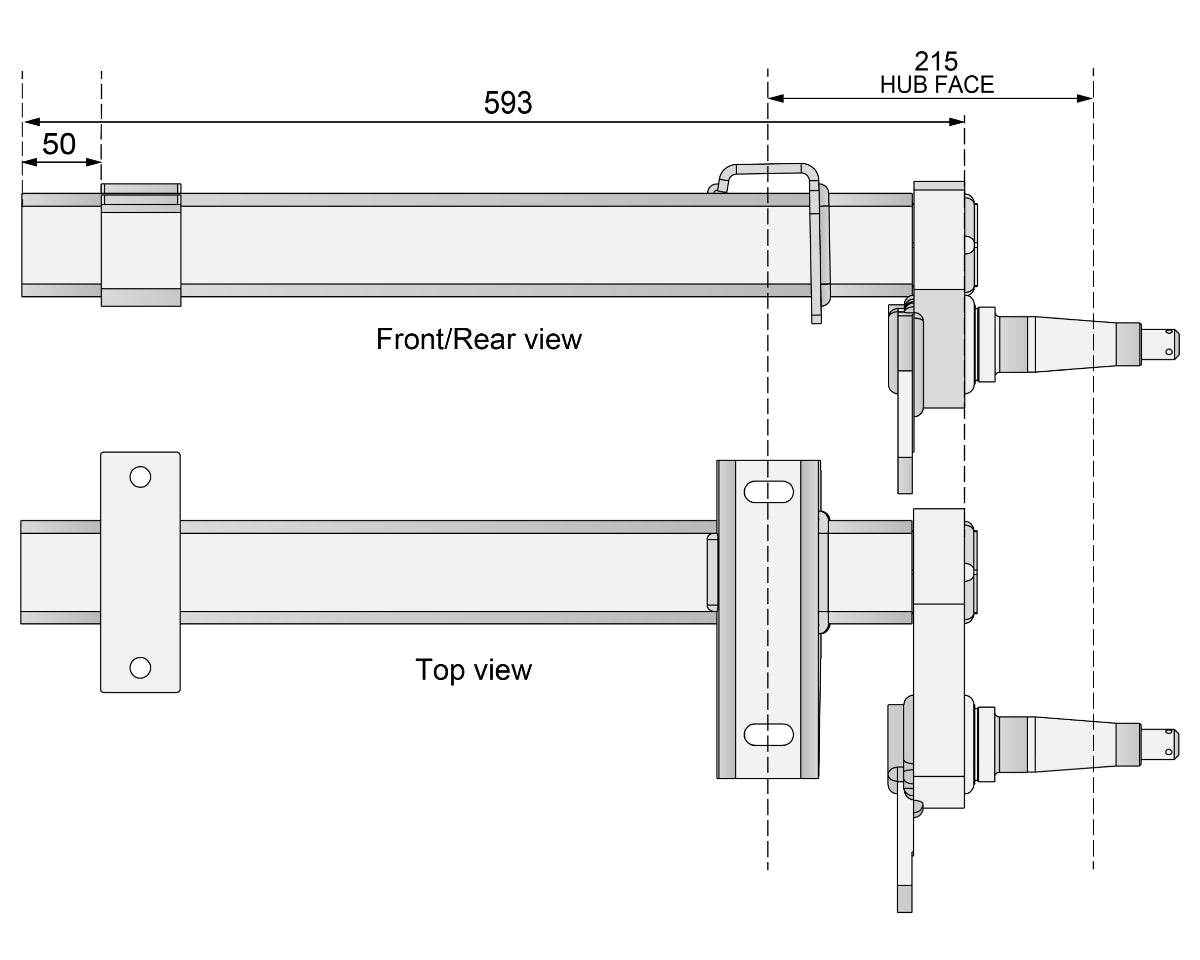

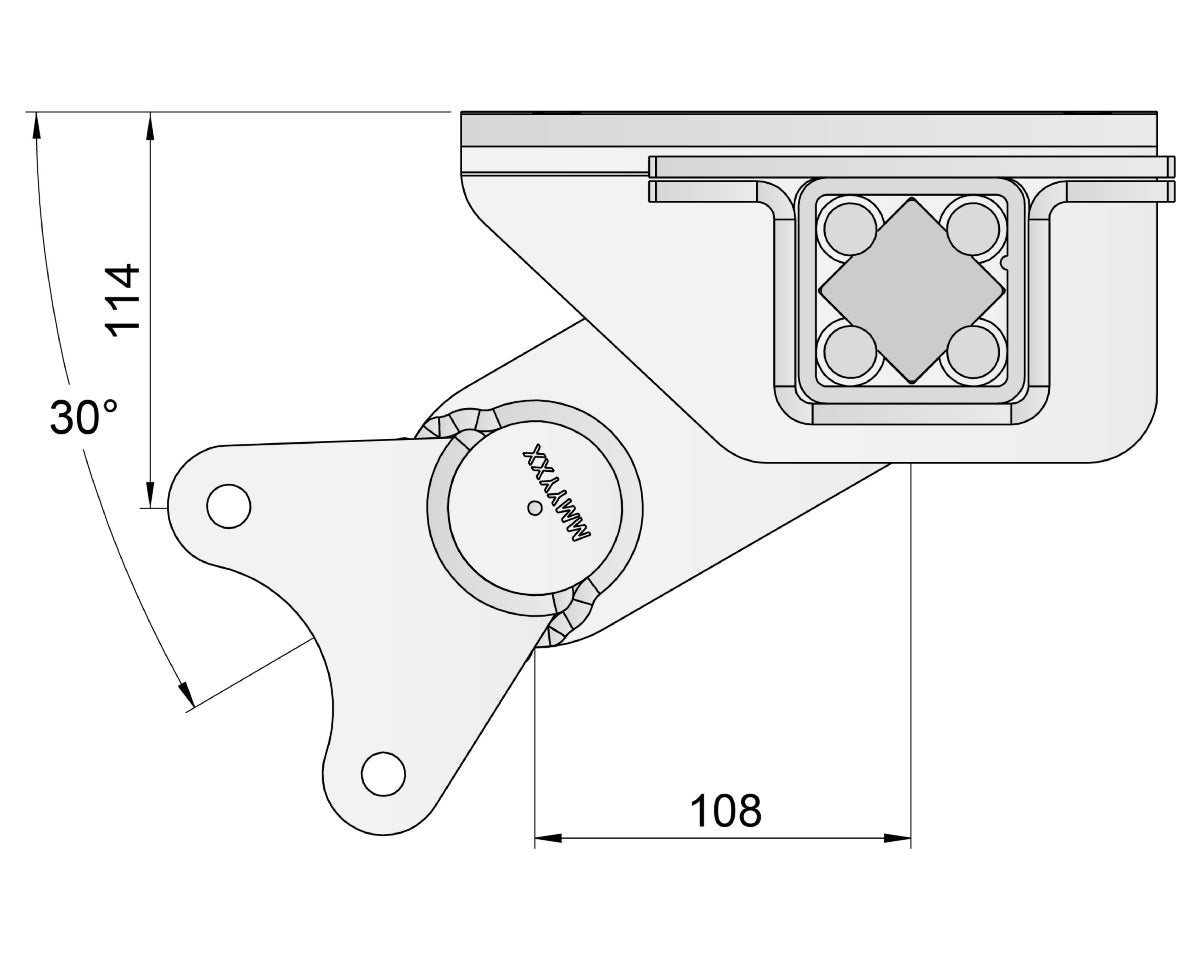

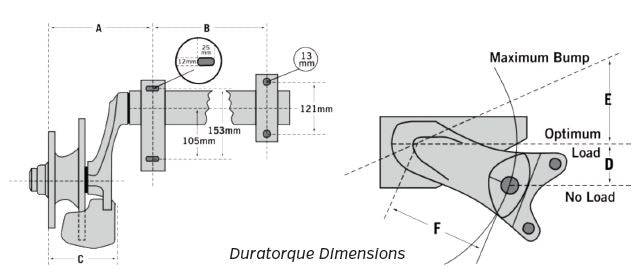

The following table details the minimum measurements from hub face to spring / bracket mounting center.
| Fig | Model Type: | 1000kg, 1500kg, 1750kg | 2200kg | 3000kg |
|---|---|---|---|---|
| A | Two Piece | 220mm | 210mm |
N/A |
| Two Piece Retro | 200mm |
N/A |
N/A |
|
| B | Two Piece | 340 - 440mm | 340 - 440mm | N/A |
| C | All Disc | 163mm | 165mm | 165mm |
| Hyd Drum | 80mm | N/A | N/A | |
| Elec Drum 10" | 95mm | N/A | N/A | |
| Elec Drum 12" | N/A | N/A | N/A | |
| D | All | 60mm | 60mm | 25mm |
| E | All | 30mm | 30mm | 30mm |
| F | All | 145mm | 125mm | 145mm |
Note: Hub equipment is to be ordered separately. Early model hubs will not fit on retro Duratorques.
| Part No: | Capacity: | Type: | Hub Type: |
|---|---|---|---|
| T081010LH / RH |
1000kg |
Non braked & disc braked |
|
| T081015LH / RH | 1000kg | Retro | Non braked & disc braked |
| T081016LH / RH | 1500kg | Retro | Non braked & disc braked |
| T081020LH / RH | 1500kg | Non braked & disc braked | |
| T092055LH / RH | 1500kg | Electric braked | |
| T092057LH / RH | 1750kg | Electric braked | |
| T092040LH / RH | 2200kg | Non braked & disc braked |
