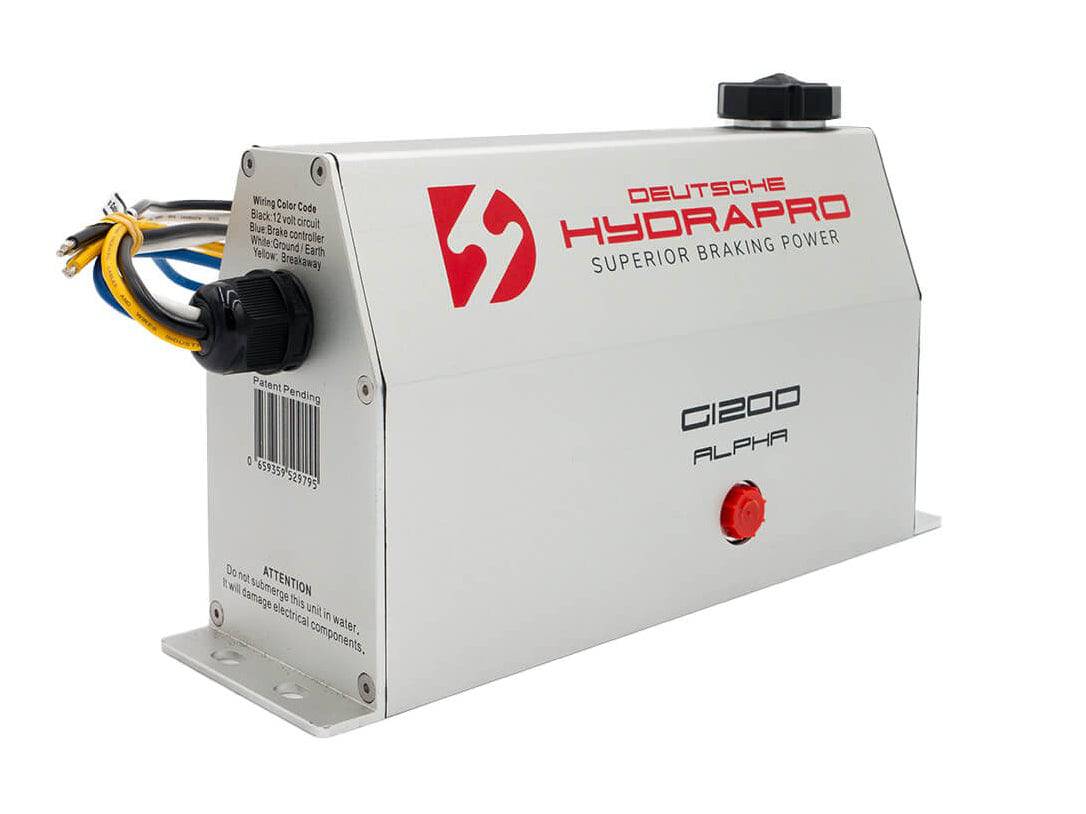

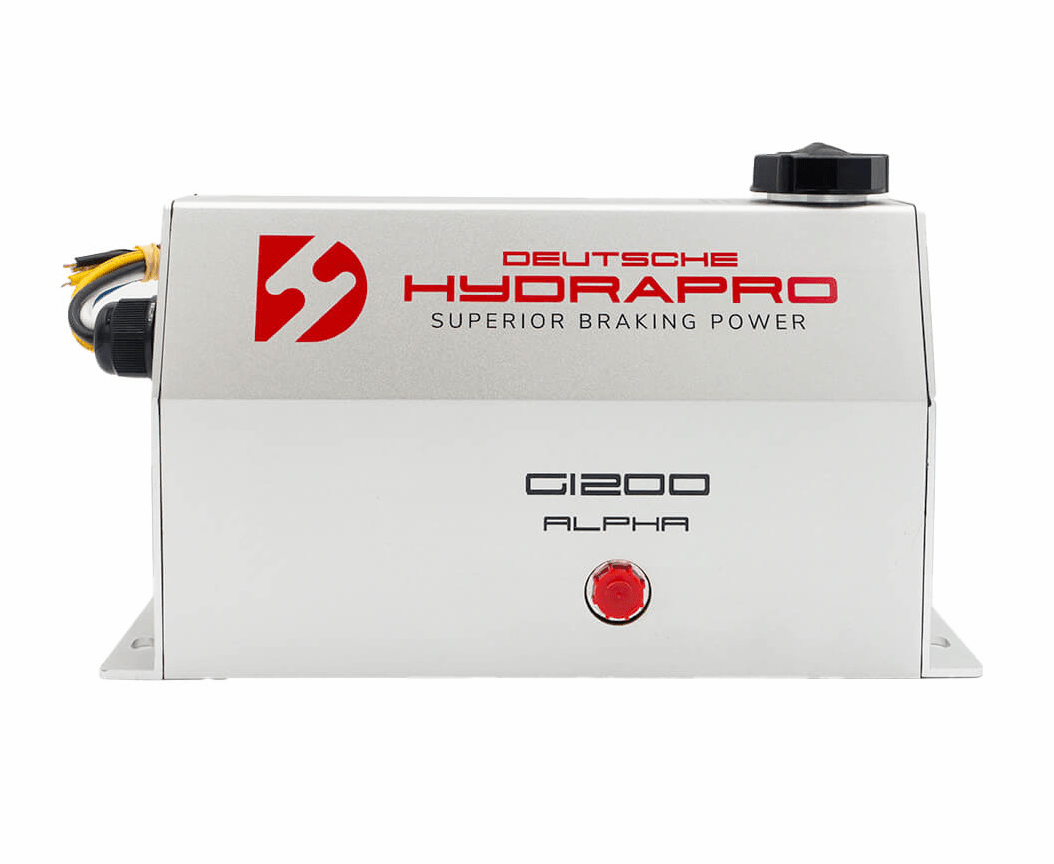

Hydrapro Alpha G1200

HYDRAPRO ALPHA G1200

Best used with DRUM BRAKES (Over 8,000lbs Axle Capacity)

Features:

• This device has an in-built compatibility adapter, so no external compatibility device is necessary.
• High-powered DC motor and quality pump with minimal moving parts.
• Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions).
• Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design.
• Independently sealed fluid tank.
• Conformal coating on the circuit board is designed to provide extra protection from moisture.
• Two-year no-hassle warranty.

Specs:

• DOT Compliant
• Trailer Mounted
• Application: Drum brakes for single, tandem, and tri-axle trailers
• Distance between mounting holes: 278mm & 35mm (10.95” & 1.38”)
• Mounting Hole Diameter 12 x 8 mm (1.2cm x 0.8cm) slot
• Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting)
• Dot 4 Brake Fluid
• Fluid Capacity of 15.7 oz
• Power: 12V DC (min 30 amp feed)
• Max Current Draw at full pressure approximately 18-24 amps.

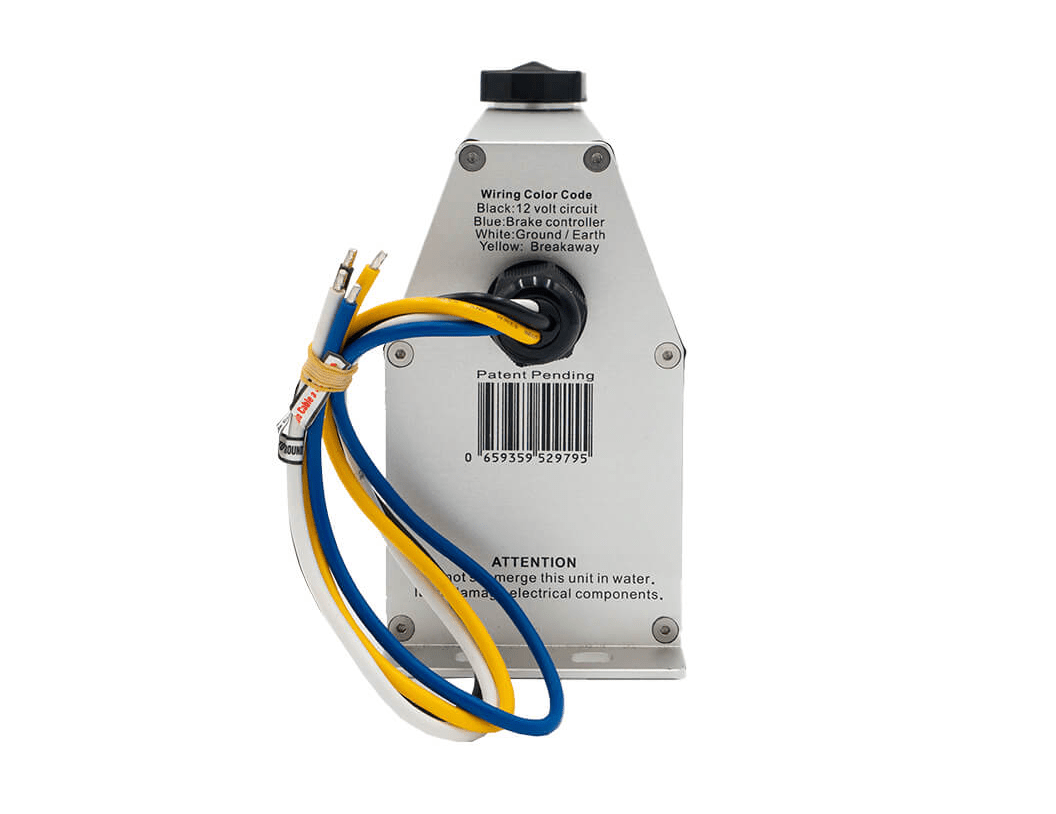

• Wire Configuration:
  • Black: 12-volt power
  • Blue: brake controller
  • Yellow: breakaway
  • White: ground
• Wire Gauge Recommendation
  • A minimum of 10 gauge on black and white
  • A minimum 12 gauge on blue and yellow
• Dimensions:
  • Length: 255mm (10”)
  • Height: 152mm (6”)
  • Width: 90mm Base / 44mm Top (3.6” Base /1.7” Top)
  • Mounting centres: 275mm L and 40mm W (10.9” and 1.6”)

Deutsche-Hydrapro™ Product Manual (Adobe PDF) 3.47MB
