Kilwell Sports Ltd
Kilwell Outrigger Base Complete ORB1 I/D 39mm
Sent from NZ Supplier (4-7 Days)
Complete Kilwell ORB1 stainless steel base. The tube has an internal dia of 39.5mm to be used with 38mm external dia Outrigger.
Kilwell Outrigger Base Complete ORB1 I/D 39mm[Ea]
Features

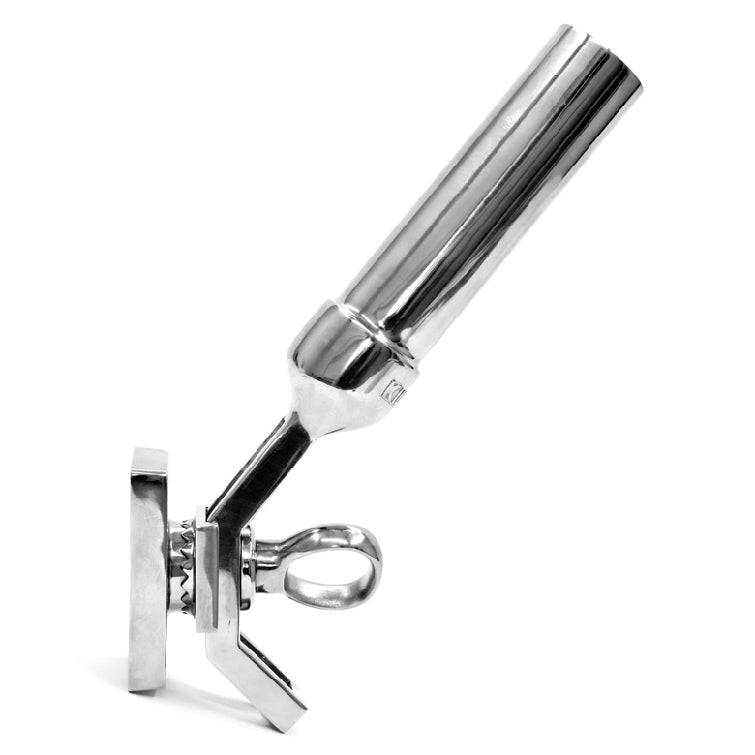

Complete Kilwell ORB1 stainless steel outrigger base assembly.
A compact lightweight base constructed from marine grade stainless steel.
The base will swivel through 360 degrees plus it has three positions on the pole; vertical, 45 degrees, or flat, which enables a multitude of mounting options to get the perfect trolling height and angle for your poles.
The small mounting plate needs to be permanently bolted to the gunwale or cabin top of your boat, but the outrigger pole is still removable.
The tube has an internal diameter of 39.5mm and is designed to be used with 38mm external diameterKilwell Outrigger blanks.
This base fitting can also be used as a heavy-duty adjustable rod holder for top mounting on your gunwale.
Sold per each.
Bolt-on Outrigger Base Installation Instructions.
Spare parts are available. See product codes
ORBHA - no. 1 Handle
ORBWA - no. 2 Washer
ORBTU - no. 3 Tube
ORBCL - no. 4 Base Clamp
ORBPL - no. 5 Baseplate
For mounting to an aluminium hull we recommend you add a Kilwell Outrigger Base Gasket [ORBGB] to prevent corrosion between the stainless fitting and your aluminium hull.
Like all Kilwell Branded Products, these have a Kilwell Lifetime Warranty.
THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS
PRODUCT CODE ORB1
