Lenco 101 XD Power Cylinder 24V

This is the shortest Actuator Lenco manufacture.

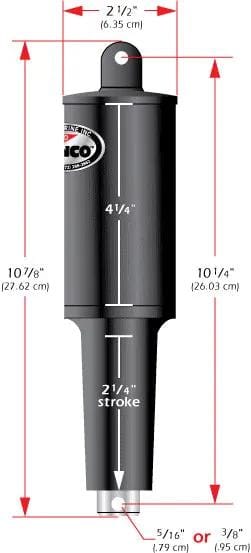

Stroke: 2-1/4" (5.72 cm)
Length overall: 10-7/8" (27.62 cm)
Length pin to pin: 10-1/4" (26.03)
Diameter (upper housing): 2-1/2" (6.35)

• Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
  * Corrosion proof Vandar mounts
  * Stainless steel ram won’t flex, even under extreme loads
  * Double O-ring for maximum protection
  * Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there’s no need for complicated limit switches and clutches
  * Self-locking ballscrew locks into position and will not drift
  * Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
  * Tough, high-torque motor easily transfers 750 lbs
  * Available in 12- or 24-volt motor. Kit includes 12-volt motor
  * High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
  * Corrosion proof Vandar cap and mount, stands up to severe loads
  * Solid stainless steel billet end available for heavy duty, extreme duty and super strong applications
  * Available in 12 or 24-volt motor

The 101 XD Actuator is used mostly with HD, XD, High Performance & Super Strong tabs. 2-1/4" stroke Overall length tip to tip = 11-3/8 inches.

24-volt actuator

5/16" upper & 3/8" lower mounting hardware

6' cable

Lenco’s ballscrew design is more reliable and twice as powerful compared to typical hydraulics.

Lenco's tough, high-torque actuator motor easily pushes 500 lbs. (227 kg)

Lenco Actuator connections use waterproof “Plug & Play” Deutsch connectors eliminating the possibility of water intrusion.
