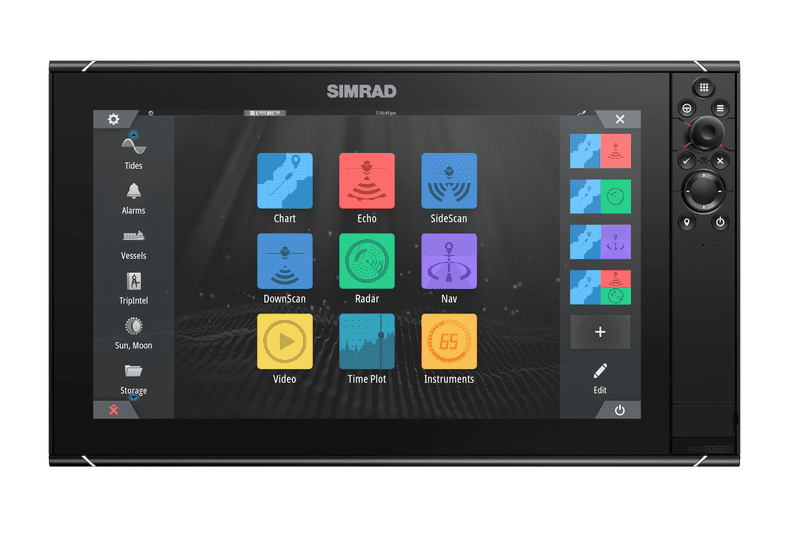

Simrad NSS Evo3S 16-Inch Marine Chartplotter with Fast Processor

The NSS evo3S 16-inch chartplotter from Simrad combines a crystal-clear Full HD display with a next‑generation processor that turbocharges every capability you rely on offshore. This is a mid‑life update to the original NSS evo3, delivering noticeably quicker menus, smoother multitasking, and faster chart rendering so you spend less time waiting and more time mapping routes, following marks, and staying on the compass of confident navigation. The 16" panel is designed for easy legibility in challenging conditions, making radar, sonar, and chart overlays easy to read at a glance.

Blazing-fast performance with a capable, all‑in‑one interface

• Next‑generation processor: higher speed and smoother transitions across all apps, from charting to radar and sonar overlays.
• 16-inch Full HD display: detailed charts and sonar returns with superb contrast and wide viewing angles for crew visibility in bright sunlight.
• Touchscreen and keypad control: multi‑touch navigation plus traditional keypad access and optional OP50 controllers for versatile vessel setups.
• HDMI output: connect to external displays or recording systems to share radar, sonar, or chart data with guests or crew.
• Dual video inputs: two composite inputs for quick camera or auxiliary video feeds to keep the deck informed.

Deep, capable navigation, sonar, and radar in one robust unit

• Reliable GPS performance: internal GPS with 10 Hz update rate, 34 satellite channels, and 3 m horizontal accuracy for fast, precise fixes.
• CHIRP sonar and advanced imaging: two Xsonic ports supporting CHIRP 50/200 kHz, HDI, and TotalScan with ForwardScan options for scanning beyond the bow.
• Radar compatibility: Broadband Radar, Halo Pulse Compression Radar, and HD Pulse Radar integration for confident situational awareness in low visibility.
• Auto pilot integration: full auto pilot control and commissioning, with multiple maneuver profiles to match your boat and conditions.

Charting that adapts to how you fish and cruise

• Flexible chart support: compatible with Insight, Navionics Gold/Nav+ Platinum+, and C‑MAP MAX N, plus NV Digital raster US charts for a layered, detailed map experience.
• Extensive data layers: precise depth contours, navigation aids, and weather overlays (SiriusXM via WM‑3 in the USA, and GRIB weather data) to plan days at sea.
• Memory and expandability: 16 GB internal storage plus two microSD slots (max 32 GB each; larger if NTFSed) for map packs, data logs, and chart updates.
• Waypoints and routes at scale: up to 6,000 waypoints, 500 routes with 100 points per route, and 50 tracks with as many as 12,000 points, so you can plan long passages and backtrack with confidence.

Designed for serious anglers and offshore cruisers

• Sport fishing readiness: integrated sonar and radar views help locate bites and mark structure, while the advanced autopilot keeps you on course between casts.
• Offshore cruising reliability: rugged data handling, 10 Hz positioning, and multiple data inputs ensure you stay on track even in demanding conditions.
• Versatile networking: NMEA 0183 connectivity for legacy devices (transmit/receive at standard baud rates) and internal Wi‑Fi for on‑board networking and updates.

Connectivity, data, and practical on‑board workflow

• NMEA 0183 with 1×Transmit and 1×Receive; supports multiple sentence streams including GGA, GLL, VTG, RMC, and more with optional data cable (P/N 000‑00129‑001) for integration with legacy systems.
• Video and data integration: two CHIRP‑capable sonar ports, video inputs, and HDMI output enable you to stream depth data, radar, or video to a secondary display on request.
• Weather and data services: SiriusXM weather (WM‑3 USA only) and GRIB weather data enable you to forecast conditions on the fly, directly within the plotter interface.
• Internal navigation aids: GPS corrections via WASS, EGNOS, MSAS, GLONASS to improve fix reliability in challenging environments.

Why this Evo3S model stands apart

The evo3S 16‑inch brings a noticeably sharper, faster, and more stable user experience than its predecessor thanks to its next‑gen processor, while preserving the familiar, modular Simrad ecosystem that many mariners trust. The combination of a bright 16" display, precise 10 Hz GPS, powerful CHIRP sonar, and flexible charting options makes it easier to navigate, fish, and cruise with confidence—without juggling multiple devices. It’s a single, integrated solution that scales with your needs, from day trips to long offshore expeditions.

The right tool for the job on any voyage

If you’re upgrading from an earlier chartplotter, the NSS evo3S 16" offers tangible benefits: quicker screen updates, smoother panning and pinch‑to‑zoom, and faster access to your favorite charts and data. For boats expecting expansive electronics networks, the onboard processing power, flexible storage, and rich data inputs mean you can run more layers at once—without compromising clarity or performance. This is the system to rely on when the goal is precise navigation, informed decision‑making, and a more enjoyable time on the water.

Note: All specifications reflect the NSS evo3S family and the 16‑inch model’s capabilities, including chart compatibility, multi‑touch operation, autopilot integration, memory options, and connectivity described above.
