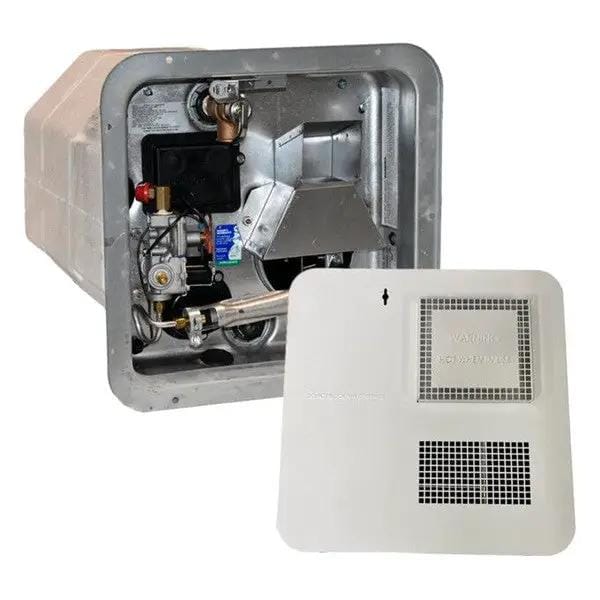

All Suburban Water Heaters are designed for easy installation, operation and maintenance.  The limit switch and reset button are conveniently located in a housing behind the removable outer door.  The combination drain plug/anode rod are also located there, making service a breeze.

Suburban uses a porcelain-lined, steel water heater tank with an anode rod to "absorb" the electrolytic action - just like your water heater at home.  The 'sacrificial' anode should be checked yearly, but usually last approx 2-3 years before needing replacement.

Features:

• Easy installation from outside
• Removable outer door for easy access
• Recovery rate of 40L per hour
• Longer Life - sacrificial anode
• Wall panel switch electronically ignites (via 12V) and controls the water heater
• Includes installation kit

Specifications:

• Heat Supply:   Gas only
• Set point temp:   54°C
• Burner Rating:   12,000 btu (approx) 4kW
• Recovery:   40L/hr at 45°C temperature rise
• Water inlet:   1/2" BSP female thread
• Weight:   15kg
• Dimensions:   320H x 320W x 490D (allow an extra 50mm depth for plumbing fittings)
• Fittings:   12mm John Guest fittings included

Please note:
Pump pressure must not be higher than 45 PSI
Installation must be done by a qualified gas fitter
