Torqeedo

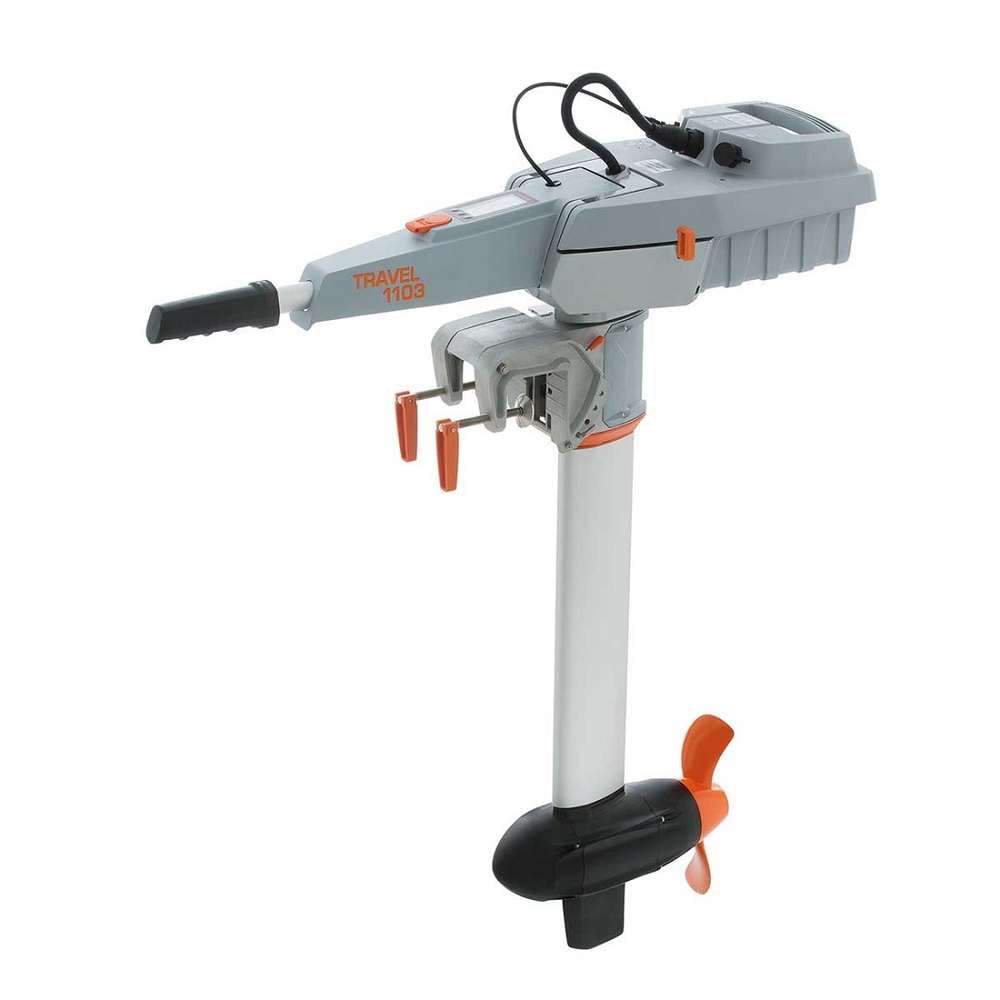

Torqeedo Travel 1103c Electric Outboard
Sent from NZ Supplier (1-2 Days)
Torqeedo Travel 1103c Electric Outboard - The new Torqeedo Travel 1103 C is suitable for boats up to 1,500 kg.
Torqeedo Travel 1103c Electric Outboard
The top-of-the-line 1103 C model is a new addition to the globally successful Travel series. Featuring a brand-new, direct-drive motor design, it comes with the high-capacity 915 Wh battery – a range-extending 73% increase in capacity compared to the base model. The 1103 C also delivers 10% more power from 1,000 to 1,100 W, a stronger aluminium pylon for increased protection from impact damage and an upgraded transom mount.
Motor noise is an ultra-quiet 33 dB. Just like the proven Travel 1003 model, the new 1103 C is suitable for boats up to 1,500 kg.
Travel 1103 Electric: 3 hp
Volts: 29.6 V
Weight: 17.3 kg (S) / 17.7 kg (L)
2-Year Limited Warranty.
Torqeedo Online Catalogue – Click here to view
Which Travel motor for which boat? The Travel 503 and 1103 models are both suitable for inflatables, small boats and sailboats. We recommend the Travel 503 for sailboats up to a weight of 750 kg, and the Travel 1003 for up to a weight of 1.5 tons. Both models consume the same level of energy at the same speed. The stronger Travel 1003 has a 30% higher battery capacity and therefore superior range.
Battery charge time: The battery recharge time from empty to full ranges between some 8 hours (Travel 503) and 10 hours (Travel 1103).
Lithium-manganese battery life expectancy: Charge cycles are not the main factor affecting the service life of the lithium-manganese battery. The battery does not have a memory effect. Generally, a loss of capacity of 4% per year can be assumed. Ageing is accelerated if the battery is exposed to high temperatures for long periods and if it is stored fully charged for long periods. Therefore, the battery can be used in very hot conditions but should be removed from the sun and stored in a cool place when not used. If it is stored for a longer period of time, its charge status should be about 50%. If these instructions are followed, your battery will have a life expectancy of some 6-10 years.
Integrated battery specifications: The batteries of the Travel motors have a capacity of 300 Wh (Travel 503) and 400 Wh (Travel 1103). The batteries are rated 10 Ah @ 29.6 V (Travel 503) and 13 Ah @ 29.6 V (Travel 1003).
Charging the Travel battery from solar and from the onboard power supply: The battery can be solar charged during use. It comes with a charge connector that accepts the CIGS solar charger on page 20 or other solar chargers with a voltage between 24 V and 60 V and a charging current of 4 Amps max. To charge the battery from an onboard power supply, you will need an inverter that converts the onboard voltage to a value between 100 and 240 V (standard power outlet voltage, country-specific voltages may vary). The charger provided in the supply package connects to the inverter. High-efficiency inverters are available on the market at very affordable prices.
Watertightness: All motor components are watertight, and protected against complete immersion. Safety: The motor shuts off when the magnetic key on the remote throttle control is removed. Therefore, for safety reasons, the magnetic key should be attached to the wrist or the life vest.
- Input power in watts: 1100
- Propulsive power in watts: 520
- Comparable petrol outboards: (propulsive power) 3 HP
- Comparable petrol outboards: (thrust) 4 HP
- Maximum overall efficiency in %: 49
- Static thrust in lbs*: 70
- Integrated battery: 915 Wh Li-Ion
- Nominal voltage: 29.6
- Final charging voltage: 33.6
- Total weight in kg: 17.3(S) / 17.7 (L)
- Motor weight without battery in kg: 11.3(S) / 11.7(L)
- Weight of integrated battery: 6.0kg
- Shaft length in cm: 62.5(S) / 75(L)
- Standard propeller
- v = speed in km/h at p = power in watts: v10/p1100
- Alternative propeller options: v10/p1100 weedless
- Maximum propeller speed in rpm: 1,450
- Control: Tiller
- Steering: +/-60° lockable
- Tilting device Manual, with impact protection
- Trim device Manual, 4-step
- Integrated on-board computer: Yes
- Stepless forward/reverse drive: Yes
Run time:
2.0knots (3.7km/h) 40.0sm (74.0km )20:00hrs
3.0knots (5.5km/h) 18.0sm (33.0km) 06:00hrs
5.5knots (10.0km/h) 4.6sm (8.3km )00:50hrs
- high-efficiency outboard with integrated 915 Wh high-performance lithium battery

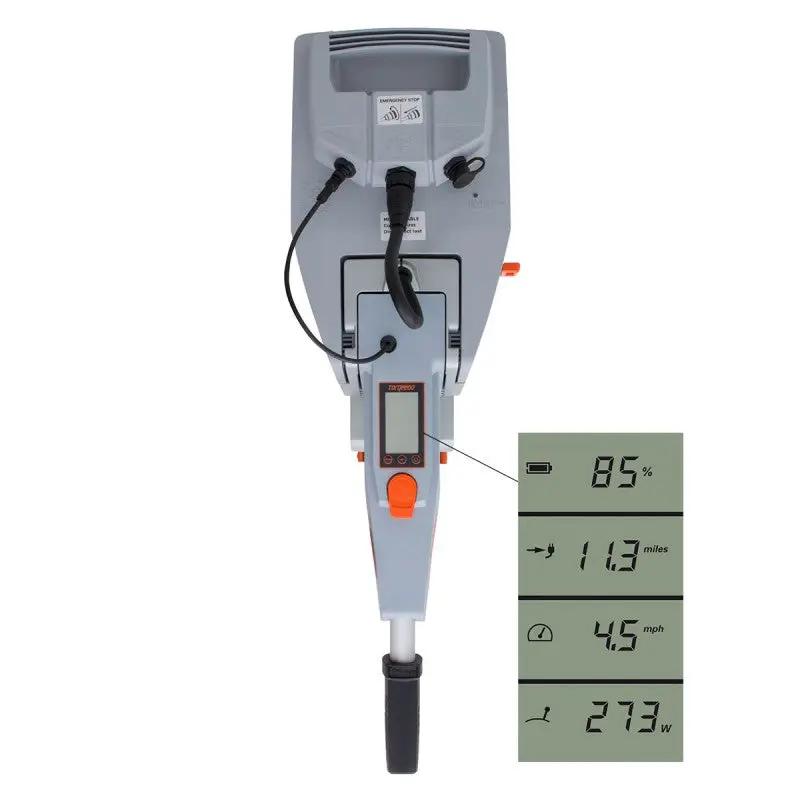

- including an onboard computer with GPS-based range calculation and charger
- ultra-quiet (33db), clean and compact
- silent direct-drive
- instantaneous throttle response
- 10% more power
- improved durability
- 3 HP equivalent
- emergency magnetic kill switch, short shaft
- completely waterproof (IP67)
- total weight 17.3 kg (S) / 17.7 kg (L)
- shaft length: short 62.5 cm
