The Overlay Beam Axle - 1500kg - Raw - 65SQ from Trojan is a purpose-built, heavy-duty solution for trailers and light industrial equipment that rely on a robust leaf-spring setup. Crafted to order, this axle is designed to meet your exact specifications, ensuring reliable performance under demanding loads and operating environments.

Key advantages that matter in the real world

• High-capacity, tailored construction: 1500 kg capacity with a 65 mm square hollow box section (65SQ) for superior torsional rigidity and load distribution, keeping your trailer stable even under dynamic road conditions.
• Multiple beam styles to suit your install: Available as straight, drop, or gull wing profiles to fit a wide range of chassis configurations while preserving leaf-spring suspension geometry.
• Braked or non-braked options: Choose the braking configuration that matches your towing needs and local regulations, without compromising wheel alignment or handling.
• Finish choice for longevity: Supplied as bare metal or galvanised, giving you corrosion resistance suited to your environment, whether coastal, rural, or harsh workshop conditions.
• Made-to-order certainty: Each axle is manufactured to your measurements and requirements, ensuring precise fitment and optimal performance on installation day.

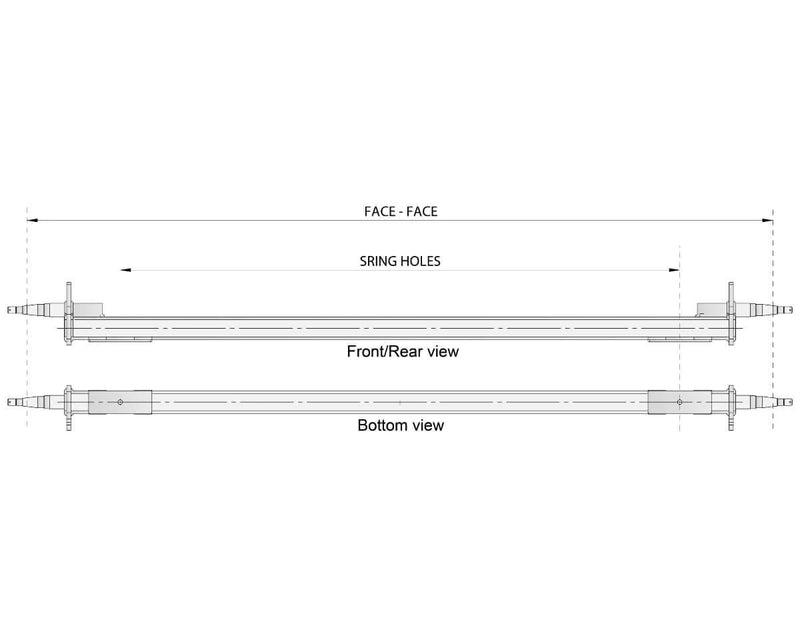

• Precise measurements for correct fit: Critical dimensions C (face-to-face hub-to-hub) and D (center-to-center of the springs’ mounted position) are specified during ordering to guarantee compatibility with your trailer layout.

Important ordering details

• This part is made to order, with a lead time of at least six weeks. Plan ahead to avoid delays in production and delivery.
• When ordering, download and complete the Axle Order Sheet (Adobe PDF) to capture your exact specifications. The order sheet ensures every parameter—from hub spacing to mounting points—is captured accurately.
• Hubs can be fitted to the new axle as an optional accessory; if you need hubs, refer to the related products and select the appropriate option during checkout.

Who is this for? The Overlay Beam Axle 1500kg - Raw - 65SQ is ideal for trailer builders, agricultural equipment haulers, utility trailers, and work vehicles that demand dependable loading capacity and durable construction. If you’re replacing a worn beam or designing a new trailer platform, this axle delivers the strength and customization you need without compromising on alignment or ride quality.

Why choose Trojan for overlay beam axles? Trojan brings decades of experience in manufacturing beam axles tailored to leaf-spring suspensions. The “made to order” model means you’re not compromising on fit or performance—every axle is configured to your exact C and D measurements and finished to your chosen specification, so installation is straightforward and reliable right out of the crate.

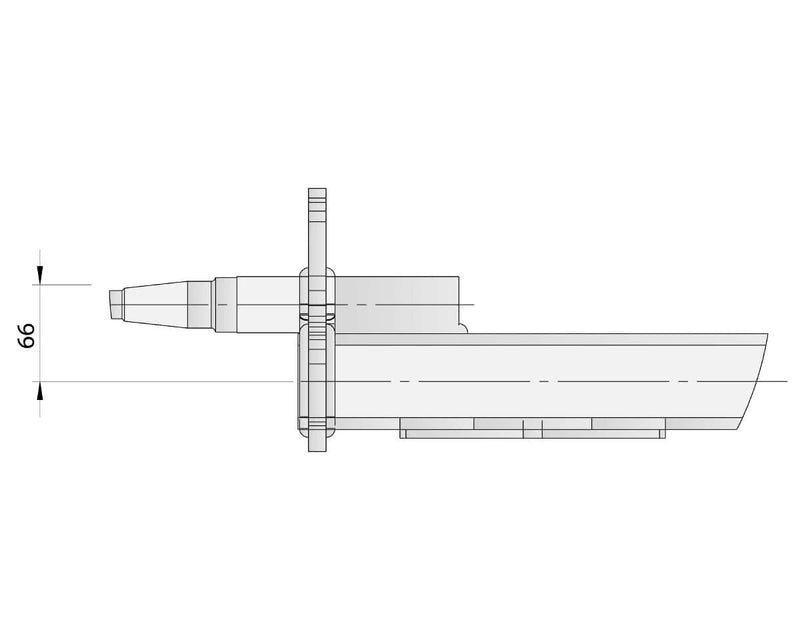

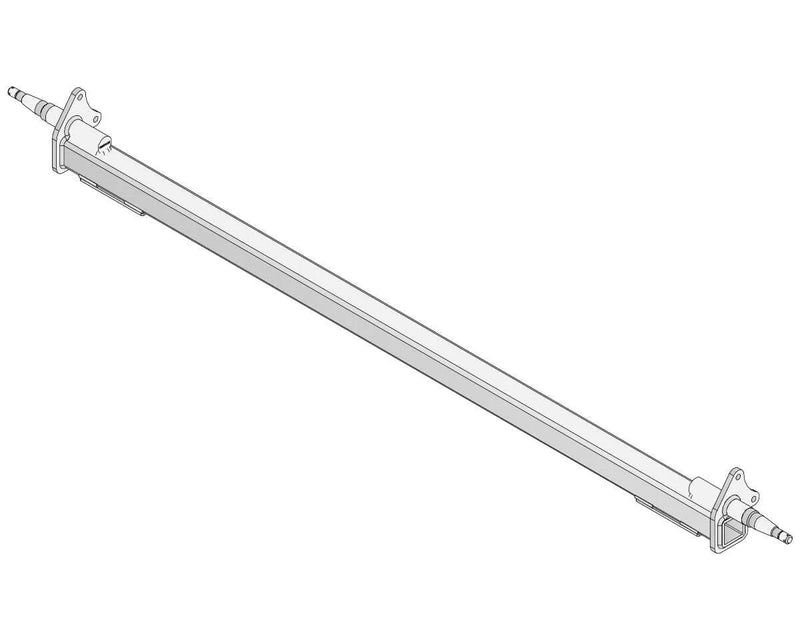

Included visuals show the product from different perspectives to illustrate the overall geometry and mounting interface—the same axle viewed from multiple angles to help you verify compatibility with your trailer frame and spring positions.

Axle Order Sheet (Adobe PDF)
