Description
Zipwake S Series 450mm Automatic Trim Tabs – Advanced Dynamic Trim Control for 20–50ft Boats
Experience next-level performance, stability, and control with the Zipwake S Series 450mm Automatic Trim Tabs, the most efficient and intelligent trim system for modern planing and semi-planing boats. Designed for vessels ranging from 20 to 50 feet (6–15 meters), this innovative system automatically adjusts your boat’s running attitude to eliminate pitch and roll, improving fuel efficiency, speed, and onboard comfort in all sea conditions.
Powered by advanced 3D motion sensors, GPS, and active control algorithms, the Zipwake S Series 450mm Chine Kit (Product No. 2011733) ensures precise, responsive trim correction far beyond conventional systems.
Superior Marine Performance with Smart Automation
Unlike traditional trim tabs, the Zipwake S Series 450mm Automatic Trim Tabs operate as a fully automatic, active trim control system, reacting instantly to changes in speed, acceleration, and sea state. Using 3D-Gyro and 3D-Accelerometer technology, it continuously adjusts for dynamic pitch and roll, delivering smoother handling, better visibility, and up to 12% improvement in fuel efficiency.
This intelligent system is 5–10 times faster than standard hydraulic or electric trim tab systems, offering near-instant stabilisation even in demanding conditions. Whether you’re accelerating onto a plane or navigating through choppy waters, the Zipwake S Series keeps your vessel balanced, level, and efficient.
Comprehensive Installation Kit Included
Each Zipwake S Series 450mm Automatic Trim Tabs kit includes everything needed for a professional installation:

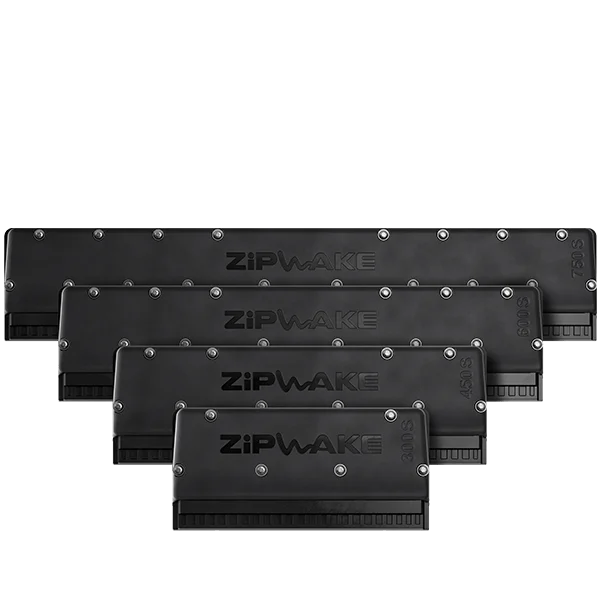

- (2) Interceptors – Width: 450mm (17.7”)
- (1) 3m Cable & Cable Covers

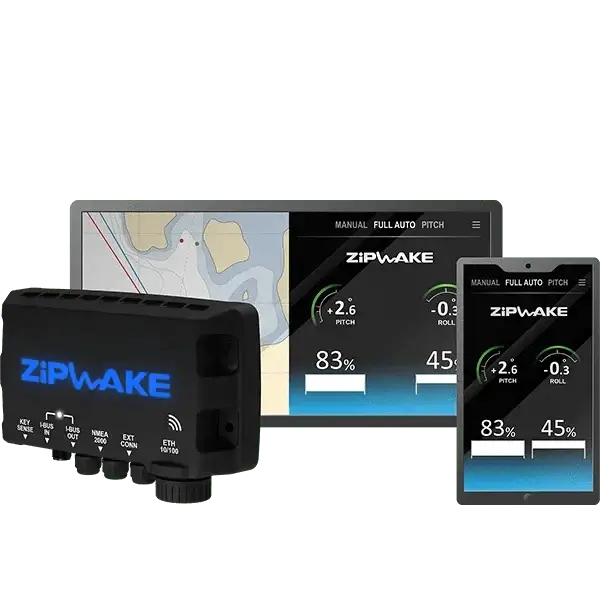

- (1) Distribution Unit with 4m Power Cable

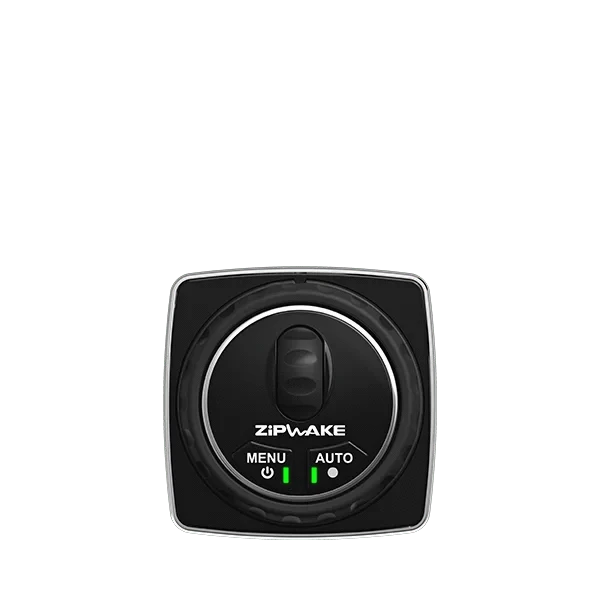

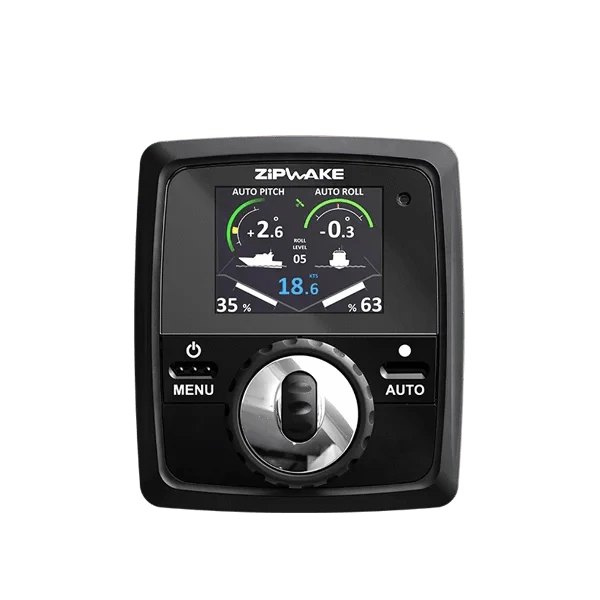

- (1) Control Panel with 7m Standard Cable
- (1) Extension Cable
The system supports NMEA 2000 integration, enabling seamless communication with multifunction displays, chartplotters, and other onboard electronics.
Key Features and Benefits
- Fully automatic dynamic pitch and roll control
- Built-in GPS, 3D-Gyro, and 3D-Accelerometer sensors
- Ideal for boats from 20–50 ft (6–15 m)
- Up to 12% reduction in fuel consumption
- 5–10x faster response than conventional systems
- Integrated NMEA 2000 interface for external device control
- CE and FCC certified for global compliance
- Waterproof IP68-rated construction, tested to 5m depth
- Auto power on/off, auto-dimming/night mode, and upgradeable firmware via USB
- Maximum operating speed: 60 knots
The Chinese configuration of this system utilises the outermost hull surface for optimal lift generation and roll control, maximising efficiency without adding drag.
Built for Reliability and Endurance
Engineered with marine-grade components, the Zipwake S Series 450mm Automatic Trim Tabs are designed to perform flawlessly in demanding environments. The servo actuator (SU-S) and PUR cables provide superior flexibility and water resistance, while the M12 5-pin circular connectors ensure secure, corrosion-resistant connections. Operating voltage ranges from 12–32 VDC, with a maximum power draw of 25W, making it both powerful and energy-efficient.
Operating in temperatures from 0°C to 40°C (32°F to 104°F), and capable of storage from –40°C to 90°C, this system guarantees reliability in any climate or condition.
Why Choose the Zipwake S Series 450mm Automatic Trim Tabs?
- Eliminates trim issues for faster planing and smoother rides
- Improves fuel economy and speed efficiency
- Reduces drag and enhances stability at all speeds
- Fully automatic system—no manual adjustment required
- Compact, waterproof, and easy to install
- Directly shipped from a local supplier for fast delivery
Precision and Performance You Can Feel
The Zipwake S Series 450mm Automatic Trim Tabs deliver intelligent motion control for serious boaters who demand precision and performance. With its fast, automatic response and durable marine construction, it transforms every journey into a smoother, safer, and more efficient ride.
Upgrade your vessel today with the Zipwake S Series 450mm Automatic Trim Tabs—the more intelligent choice for balance, comfort, and control on the open water.
