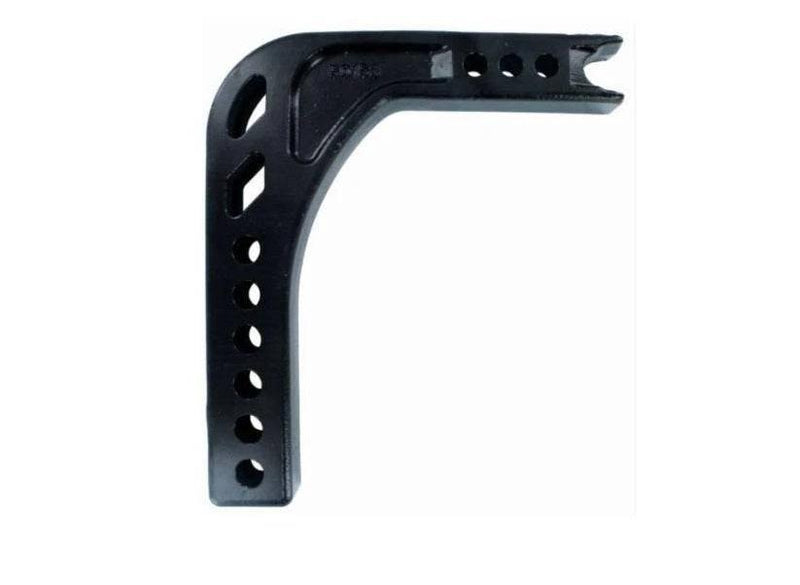

Cast Shank - 160MM Drop: Fixed-Height Mounting Interface by Trojan

The Cast Shank – 160mm Drop from Trojan is a purpose-built mounting interface engineered for demanding setups where precision and reliability matter. Its fixed 160mm drop creates repeatable mounting heights across fixtures, jigs, and frame assemblies, eliminating guesswork and guaranteeing consistent alignment from project to project.

Why this fixed drop matters

• Exact 160mm drop for repeatable heights — maintain tight tolerances and phase with adjacent components, so setups stay aligned across runs.
• Rigid cast construction — delivers superior rigidity under load, minimizing flex and wobble compared with lighter alternatives for steadier performance in tough environments.
• Simple, tool-friendly installation — designed to work with standard mounting hardware found in fixtures, woodworking jigs, and general mechanical assemblies, so you’ll be up and running quickly.
• Versatile application — ideal for projects where a fixed height drop is critical, including fixtures, supports, and mounting frameworks that benefit from a dependable interface.

What problems it solves

• Fixed 160mm drop keeps tolerances tight and prevents misalignment that can throw off neighboring components.
• Increased rigidity reduces vibration and movement during operation, improving overall stability and accuracy.
• A reliable, easy-to-install solution minimizes downtime and simplifies maintenance or replacements.

Ideal use cases

• Industrial fixtures and jigs where a fixed drop length is essential for precision work.
• DIY projects requiring repeatable alignment and solid support for consistent results.
• Frame and rail assemblies that benefit from a dependable shank interface and predictable performance.

Installation at a glance

• Prepare mounting surfaces and confirm compatibility with standard hardware.
• Position the shank so the 160mm drop aligns with the target height.
• Insert fasteners and tighten to the recommended torque for your hardware guidelines.
• Inspect alignment and test with light loads before full operation.

Care and maintenance

• Periodically check fasteners for tightness and re-torque after heavy use or vibration.
• Inspect for wear or deformation after repeated cycles and replace if integrity is compromised.
• Keep mating surfaces clean to preserve flat seating and accurate alignment.

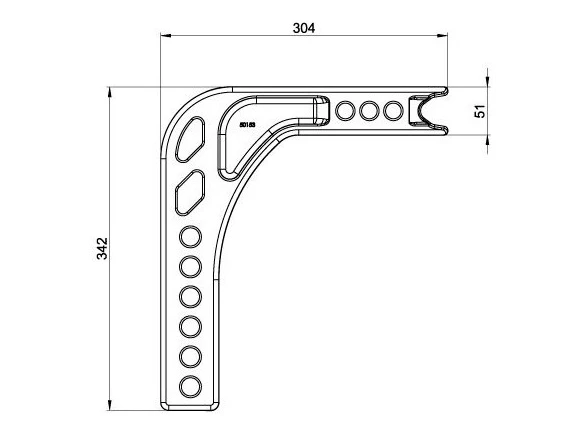

Specification highlights

• Drop length: 160 mm
• Material: Cast metal for rigidity and durability
• Compatibility: Designed to work with standard mounting hardware used in fixtures, jigs, and frame assemblies

Upgrade your setup with the Cast Shank – 160mm Drop for dependable, repeatable mounting performance you can trust project after project, backed by Trojan’s reputation for engineering precision.
