Hi Rise Towball Kit 50mm Towball 3500kg Seven Eighths Inch Shank Trojan

When you’re towing a taller caravan or have limited clearance, the Trojan Hi Rise Towball Kit delivers reliable, stable connection with extra ground clearance. This 50mm towball is built to a 3500 kg rating, making it a solid choice for a wide range of caravans while staying compatible with common hitch setups. The kit includes everything you need for secure installation: the 50mm high-rise towball, a mounting plate, and the locating nut and washer that lock it firmly in place. Ideal for imported caravans and European couplings that require a higher ball position.

What makes this Trojan Hi Rise kit stand out?

• High-rise design for a clear advantage: 155 mm overall height provides extra clearance for tall tongue heights, helping to reduce hitch angle and improve towing stability across uneven terrain.

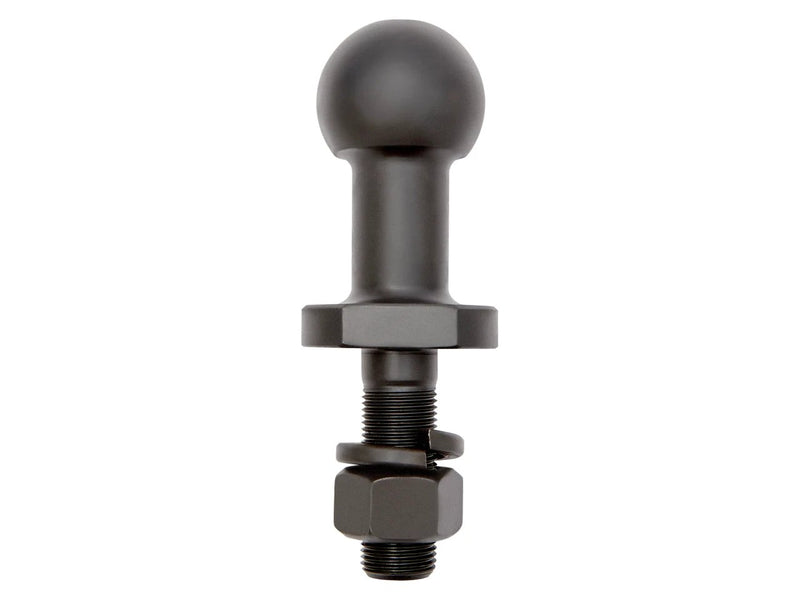

• Sturdy 50mm ball with a 3500 kg rating: Ready for demanding towing jobs while fitting standard 50mm couplings found on many caravans.
• Comprehensive kit: Includes the 50mm towball, mounting plate, locating nut and washer—everything you need for a secure, one-package upgrade. No separate parts required.

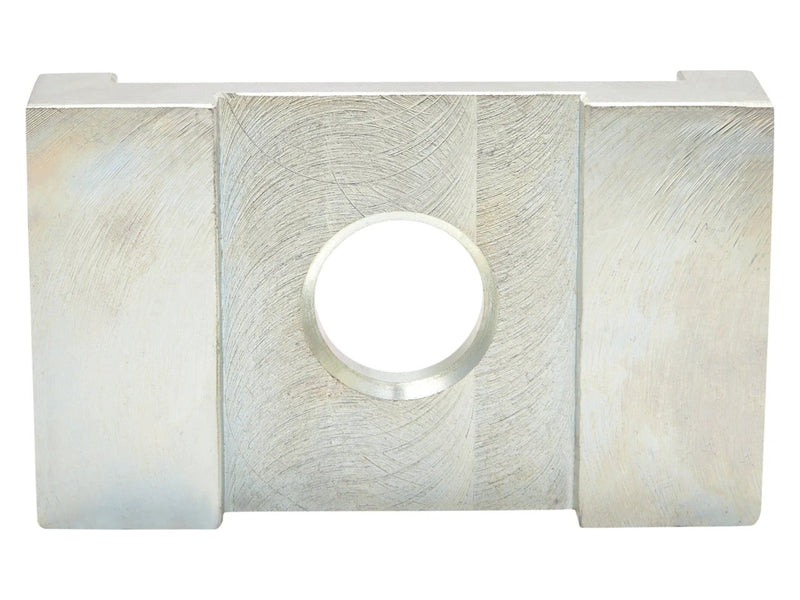

• Anti-rotation mounting plate: The kit features an anti-rotation plate to minimize ball rotation and ensure a tight, reliable connection during travel.
• Precise dimensions for confident fit: 65 mm threaded shaft length, and 55 mm from the bottom of the plate (that sits on the tongue) to under the head—information that helps verify compatibility with your drawbar setup.
• Flexible shank option: Available with 7/8" (22 mm) or 1" shank in broader Trojan ranges; the 7/8" variant is specifically listed with this high-rise kit, matching many common towing configurations.

Key specifications at a glance

• Ball diameter: 50 mm
• Tow rating: 3500 kg
• High-rise height: 155 mm (overall)
• Shank length: 65 mm
• Distance from plate base to underside of head: 55 mm
• Included hardware: mounting plate, locating nut, washer
• Shipping weight (approx): 1.23 kg
• Shipping dimensions (approx): 6 cm x 7 cm x 17 cm

Who should consider the Hi Rise Towball Kit? If you tow taller caravans, run into ground clearance issues, or want a more level tow with less tilt, this kit is designed to deliver. It’s a practical upgrade for caravanners who demand stability without compromising fit with standard 50mm hitch systems. The Trojan brand is recognized for towing accessories that match the needs of modern caravans, including imported models requiring a higher ball position.

Installation and use tips

Install is straightforward with the included mounting plate, nut and washer. The anti-rotation plate helps keep the ball secure during travel, reducing the chance of loosening under load. For best results, follow the standard mounting procedure supplied with Trojan towball kits and ensure all fasteners are tightened securely before towing.

Note: This 50mm towball is designed to work with typical 50mm hitch systems used on many caravans, especially imported models that benefit from additional ground clearance. If you’re upgrading from a lower ball position, this Hi Rise kit can provide a noticeable improvement in alignment and towing feel on uneven ground or steep driveways.
