LENCO LINEAR ACTUATOR - HL3000
(Inc. GST)
Sent directly from NZ Supplier (4-11 Days)
⚠ ONLINE ONLY – Please Do Not Visit Store for This Item
Lenco Hatch Lifter - HL3000

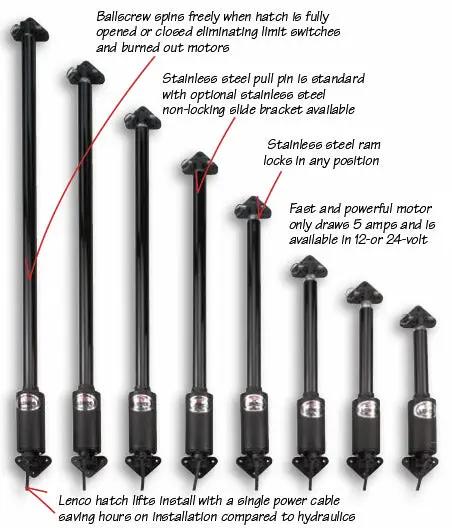

Dual installation can be achieved by a free wheeling feature at the end of stroke. Lenco hatch lifts are designed around a ball screw that spins freely when hatch is fully open or closed.
The hatch lift must be allowed to free spin at both ends of its stroke or it will continue to push or pull against any resistance potentially damaging the hatch lift or the hatch itself.
- Clear anodized aluminum tubing
- Complete with 2' lead and Deutsch plug
- Clutchless ball screw design will not drift, never binds and runs in sync on dual lift applications
- Inline motor design delivers over 500 lbs. (226.79 Kg) of force
- Waterproof, made entirely of non corrosive materials
- Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors
- Vandar mounting brackets with stainless steel pull pins
- Powdered metal gears for strength and precision
- Stainless steel ram locks in any position
- O-ring sealed at 100 psi
Dimensions:
LOA Retracted (cm): 119.38
LOA Extended (cm): 195.58
Stroke (cm): 76.20
12 Volt (24 volt available)
Sizes available with 10mm through to 762mm stroke.
Hatch Lift Specs & Install Info - Download (575KB)
Installation Instructions: Download
