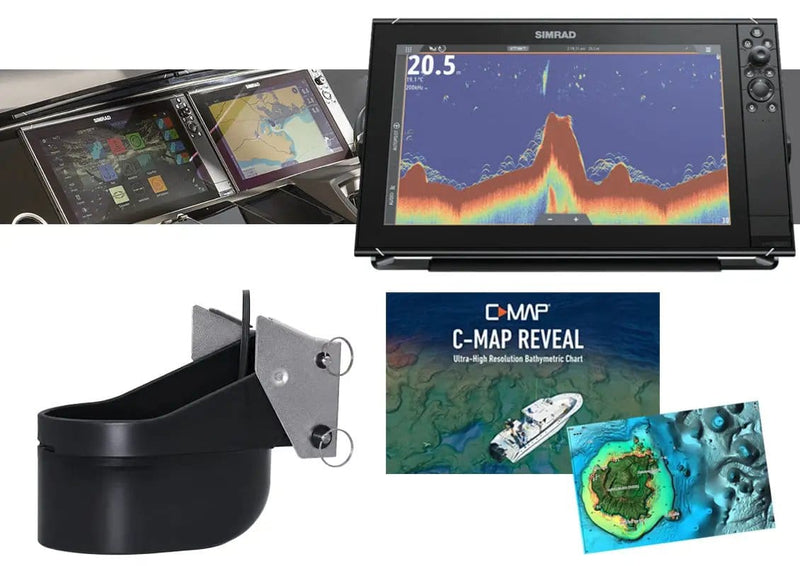

Take your offshore fishing and navigation to the next level with this premium Simrad package. Combining the powerful Simrad NSS Evo3S 16" multifunction display, the Airmar TM275LH-W high-performance CHIRP transducer, and C-MAP REVEAL New Zealand charts, this package delivers exceptional sonar performance, lightning-fast navigation, and detailed charting on an expansive 16-inch display. Whether you're targeting deep-water game fish or exploring New Zealand's coastline, you'll benefit from crystal-clear fish detection, advanced CHIRP technology, and high-resolution mapping featuring shaded relief, satellite imagery, tides, currents, and detailed bathymetry for complete confidence on the water.

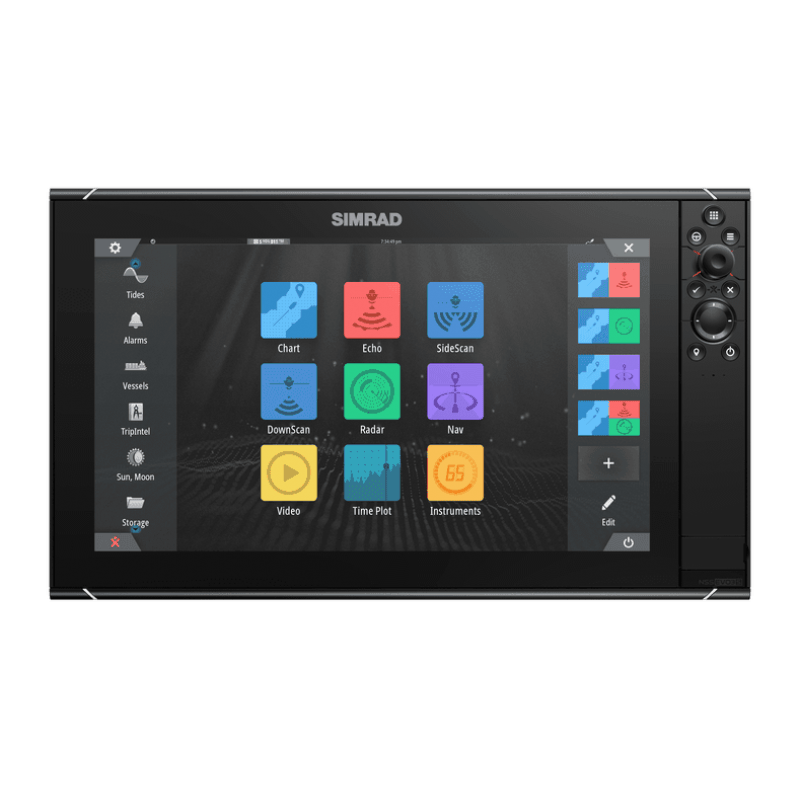

Simrad NSSevo3S

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the Evo3S means that each one of those features is now improved

Key Features:

• High Resolution, High Bright, SolarMax IPS Displays
• Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
• Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
• Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
• Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
• Low profile glass dash styling
• Built in Wi-Fi connectivity
• Software update notifications and downloads when connected to the internet
• Screen mirroring when connected to a mobile device
• Built in high sensitivity 10 Hz GPS antenna
• Dual Micro SD card slots
• Next Generation Processor
• The key difference between NSS evo3 and evo3S is a new, state of the art processor. The evo3S features the brand new iMX8 processor that allows for twice the performance of the previous generation processor. The key benefits a user will see from the new processor are:
• Faster page changes: Page loading times have been halved
• Smoother transitions: Movements on the screen like chart rotation and panning is much smoother, really capturing the premium experience of the Simrad brand.
• Multi-tasking: With such an increase in power NSS evo3S can multi-task like no product before it.
• SolarMAX IPS Display Technology
• Ultra-wide viewing angles for excellent viewability from any angle on the boat (>80 degrees up/down/left/right)
• High resolutions for best on-screen detail
• High brightness LED backlight and antireflective coating for ultimate bright sunlight viewing
• Very high maximum display operating temperatures for reliable operation in the most harsh boating locations
• Multi-touch screen for simple, intuitive software control
• Optical bonding for zero chance of display fogging
• Oleophobic coating for easy removal of fingerprints
• Multi-touch screen and keypad hybrid control
• With NSS evo3S you have full control of your vessel at your fingertips. The super responsive touchscreen makes route planning and adjusting settings a breeze. Full keypad control with both rotary dial and arrow keys means that when conditions get rough you have something physical to hold on to and have no doubt about who’s in control

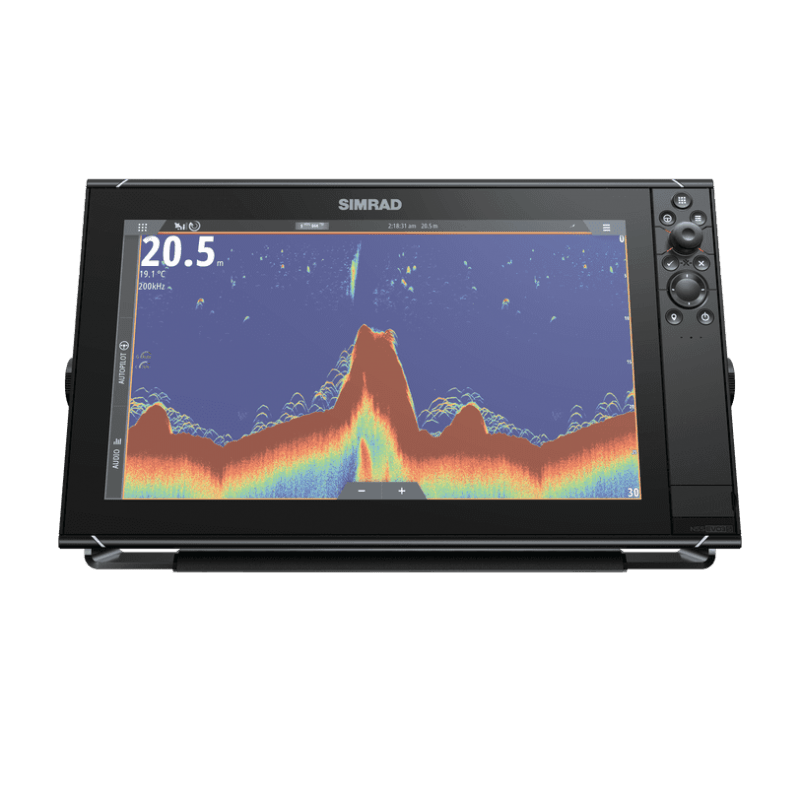

• Built-in Advanced Echosounder
• NSS evo3S includes a built-in advanced echosounder with the ability to connect two transducers to one display, allowing for Dual Channel CHIRP. Built-in functionality includes:
• 1kW Broadband: 50/83/200kHz
• 1kW CHIRP: Low/Medium/High
• Active Imaging 3-in-1
• ForwardScan
• For even more sonar performance you can connect one of the following external Sonar modules:
• StructureScan 3D: Sidescan, Downscan and 3D sonar.
• S5100: Three sonar channels with up to 3kW power output

For more product information, features and specifications of the products included in this package click on the individual product links below:

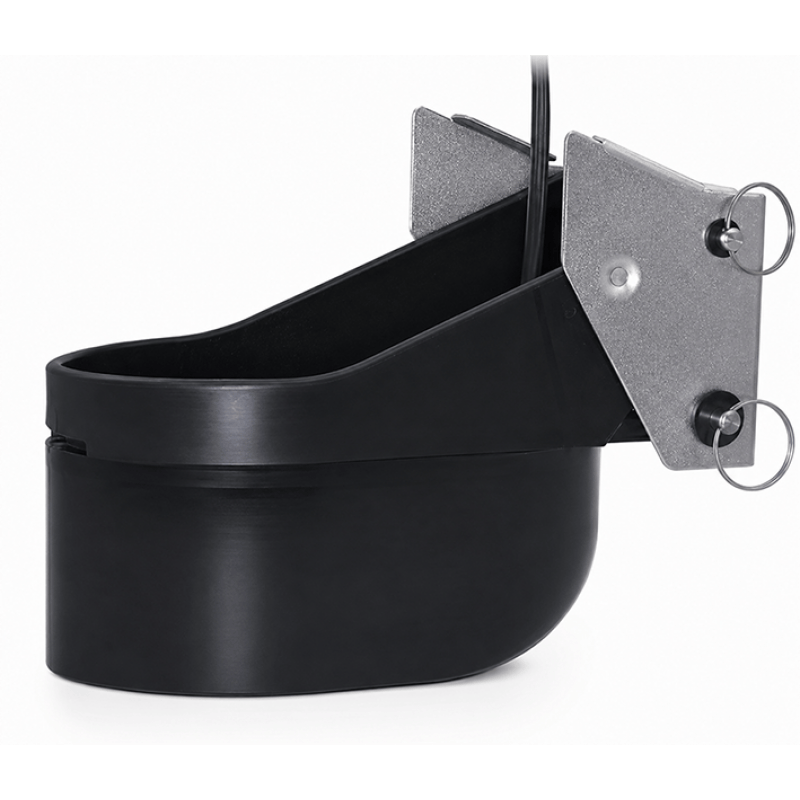

Simrad / Lowrance TM275LH-W Transducer

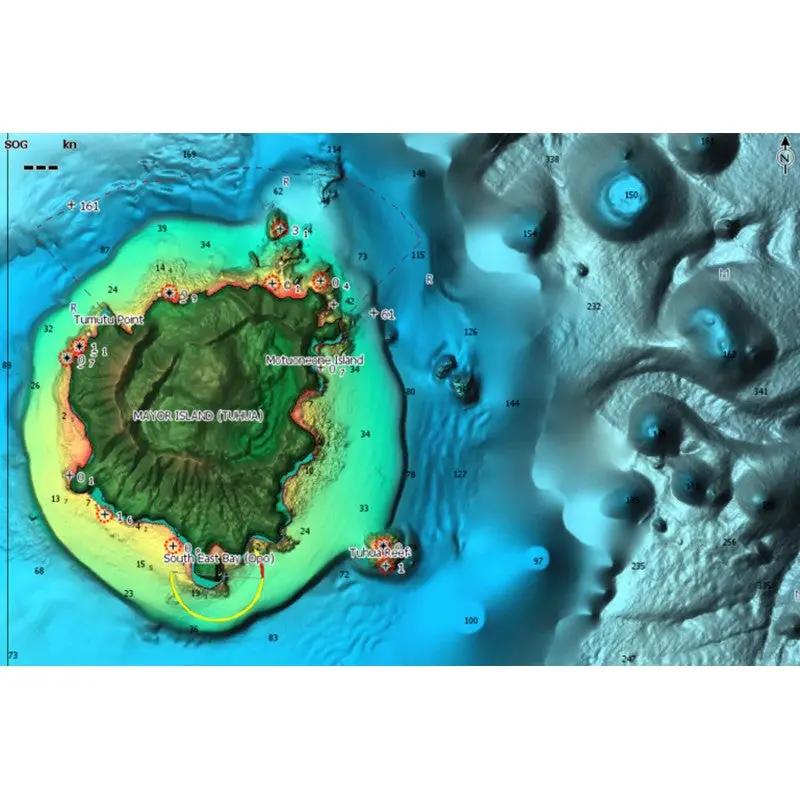

C-MAP REVEAL - New Zealand
