Simrad

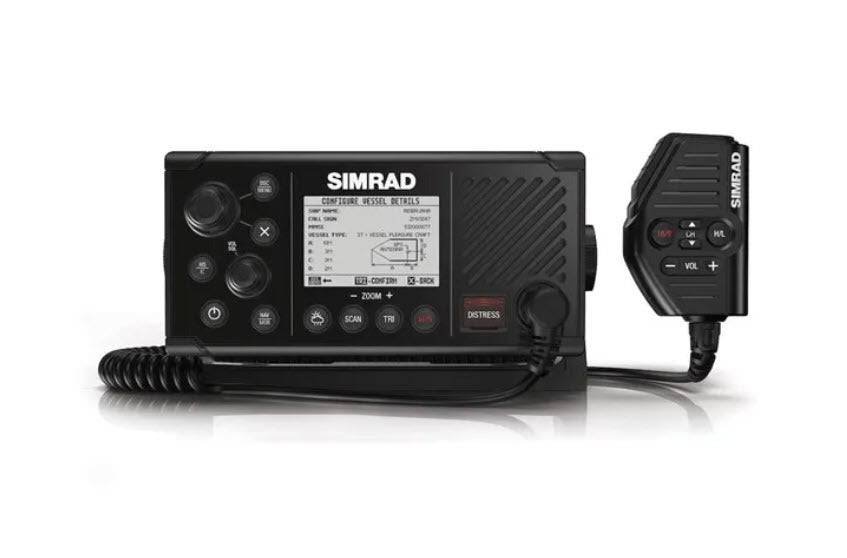

Simrad VHF Marine Radio, DSC, AIS-RXTX - RS40-B
Sent from NZ Supplier (1-2 Days)
Simrad VHF Marine Radio, DSC, AIS-RXTX - RS40-B - Stay safer on the water with this VHF marine radio.
Simrad VHF Marine Radio, DSC, AIS-RXTX - RS40-B
SIMRAD RS40-B MARINE VHF RADIO - STAY SAFER ON THE WATER WITH THIS VHF MARINE RADIO. SEE AND BE SEEN BY NEARBY AIS-EQUIPPED VESSELS THANKS TO THE INTEGRATED CLASS B AIS TRANSCEIVER, AND ADD UP TO TWO OPTIONAL WIRELESS HANDSETS.
STAY SAFER ON THE WATER WITH THIS VHF MARINE RADIO FEATURING A CLASS B AIS TRANSCEIVER AND BUILT-IN GPS.
See and be seen by nearby AIS-equipped vessels thanks to an integrated Class B AIS transceiver, and add up to two optional wireless handsets to stay connected from anywhere on board.
KEY FEATURES
Integrated Class B AIS transceiver
Class D DSC approved VHF radio
Integrated GPS receiver
Removable fist mic supports front or rear connection
Connect up to two wireless handsets
Add an optional loudhailer or external speaker
NMEA 0183® and NMEA 2000® connectivity
SEE AND BE SEEN WITH INTEGRATED AIS
The RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.
REMOVABLE FIST MIC
The RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.
EXPANDABLE WITH WIRELESS HANDSETS
Add an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.
***MINIMUM PRODUCT REQUIREMENTS***
Radio functionality requires a VHF antenna (sold separately). AIS functionality requires a second VHF antenna or a VHF/AIS antenna splitter. All DSC functions require an MMSI number issued by local authorities; charges may apply.
GENERAL
Frequency Range: Transmit | 156.025~157.425 MHz |
Frequency Range: Receive | 156.050~163.275 MHz |
Number Of Channels | INT / US / CAN / EU |
Oscillate Mode | PLL |
Modulation | FM(16KOG3E) DSC(16K0G2B) |
Channel Spacing | 25 KHz |
Frequency Stability | ±5 PPM |
Temperature range | -15~+55 °C |
Normal Working Voltage | +13.6 DC V DC |
Minimum operating Voltage | ≤10 V DC |
Low battery detect Voltage | 10.5 ± 0.5 V DC |
Over Voltage Protection | >15.8 ± 0.5 V DC |
Digital Selectivity Calling (DSC) | Class D |
LCD Display | FSTN 256x160 Pixels |
Hailer Audio Power Out | 30 W |
AIS Max Targets | 150 |
TRANSMITTER |
Frequency error | ≤±1.5 KHz |
RF Power : Hi | 23 ± 2 W |
RF Power : Lo | 0.8 ± 0.2 W |
Maximum Deviation | ≤± 5 KHz |
S/N at 3KHz Dev. | ≥40 dB |
Modulation Distortion ±3KHz | ≤10 % |
Audio Response at 1KHz Dev. | +1 to -3dB of 6dB/octave from 300hz to 3KHz dB |
Spurious/Harmonic Emissions: Hi/LO | ≤0.25 uW |
Modulation Sensitivity | ≤15 mV |
Current Drain At 12V DC : Hi Power TX | ≤6 A |
Current Drain At 12V DC : Lo Power TX | ≤1.5 A |
DSC TX deviation at 1.3K | 2.6±0.26 KHz |
DSC TX deviation at 2.1K | 4.2±0.42 KHz |
ATIS TX deviation at 1.3 KHz | 1.3±0.13 KHz |
ATIS TX deviation at 2.1 KHz | 2.1±0.21 KHz |
RECEIVER |
Intermediate Frequency : 1st | 38.85/21.7 MHz |
Intermediate Frequency : 2nd | 450 KHz |
Sensitivity : 12dB SINAD | ≤-6 dBuV(EMF) |
Squelch Sensitivity: at tight | ≤ 6 dBuV(EMF) |
Spurious Response Rejection Ratio | ≥70 dB |
Adjacent Channel Selectivity | ≥70 dB |
Intermodulation Response | ≥68 dB |
S/N at 3KHz Dev. | ≥40 dB |
Audio Output Power At THD 10% | ≥2.5 W |
Audio Distortion | ≤10 % |
Audio Response | +1 to -3dB of 6dB/octave from 300hz to 3kHz dB |
Current Drain : Max Audio Power | ≤1.5 A |
Current Drain : Stand-By | ≤0.45 A |
2ND RX Sensitivity For 12dB SINAD | ≤ 0 dBuV(EMF) |
2ND RX bit error ratio@-107dBm | ≤ 10-2 |
AIS
Class | Class-B CSTDMA |
AIS Transmit function | Yes, single AIS transmitter |
Frequency range | 161.500 to 162.025 in 25kHz steps MHz |
Output power | 33 ± 1.5 dbm |
Channel bandwidth | 25 kHz |
Modulation modes | 25 kHz GMSK for AIS TX and RX |
FrBit rate | 9600 b/s ± 50 ppm (GMSK) |
