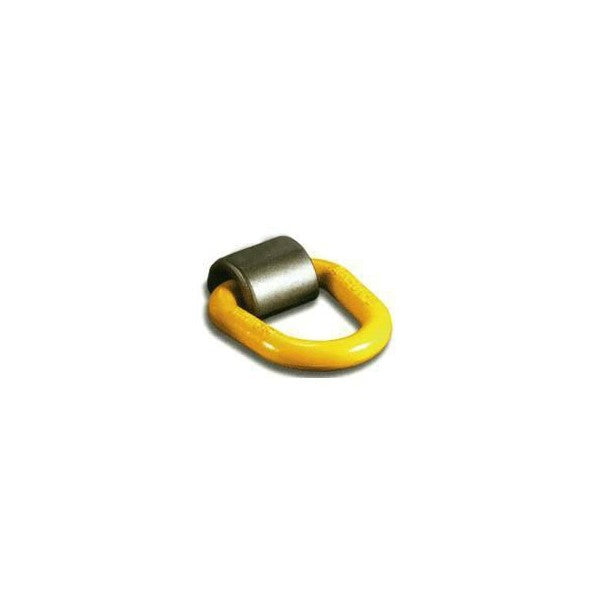

SLR Lifting Eye G80 Weld-On 8T Lift /16T Pull - Industrial Grade 80 and Spring Loaded Product Number SLR344-8T
SLR Lifting Eye G80 Weld-On 8T Lift /16T Pull
Features
- Industrial Grade 80 and Spring Loaded, Designed for Lifting and Transportation Lashing Applications
- Each Weld-On Ring is clearly Marked showing Lift and Pull [Lashing] Rating.
- For Lifting the Safety Factor is 4;1, complying with relevant NZ Standards
- For Pulling / Lashing the Safety Factor is 2;1, exceeding LTSA guidelines
- Rating; 8T Lift /16T Pull

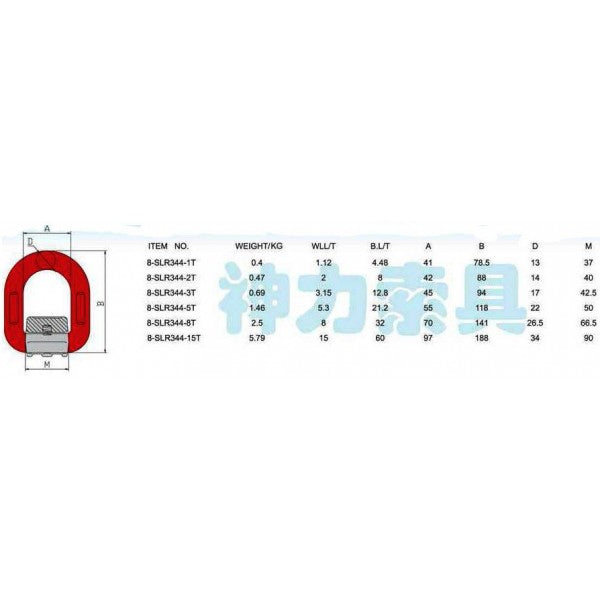

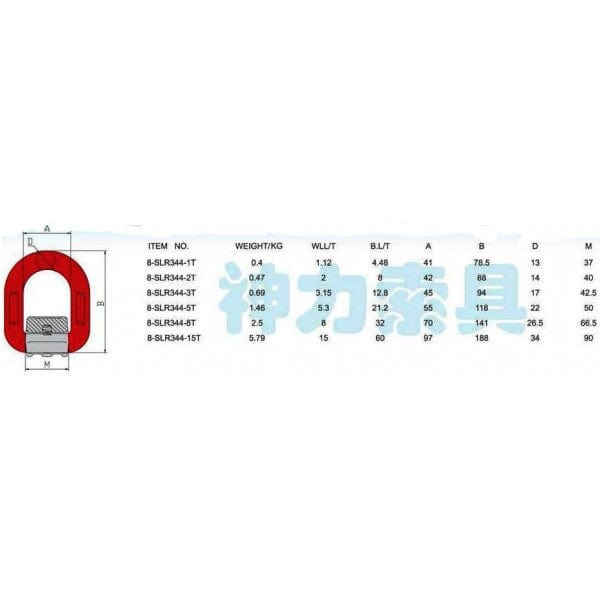

Box Quantities 1T / 50, 2T / 40, 3T / 30, 5T / 15, 8T / 10, 15T / 4
The D Body has a 100 percent WLL from all angles.
However, SLR don’t recommend applications [force on shoulders] since this will also depends heavily on the welding quantity.
The force will give a shearing force on the welding point which will be determined by the quality of the weld which SLR will not garranty.
The Welded Saddle should be equally loaded from both side to avoid the weld tearing.
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING
Product No. SLR344-8T
