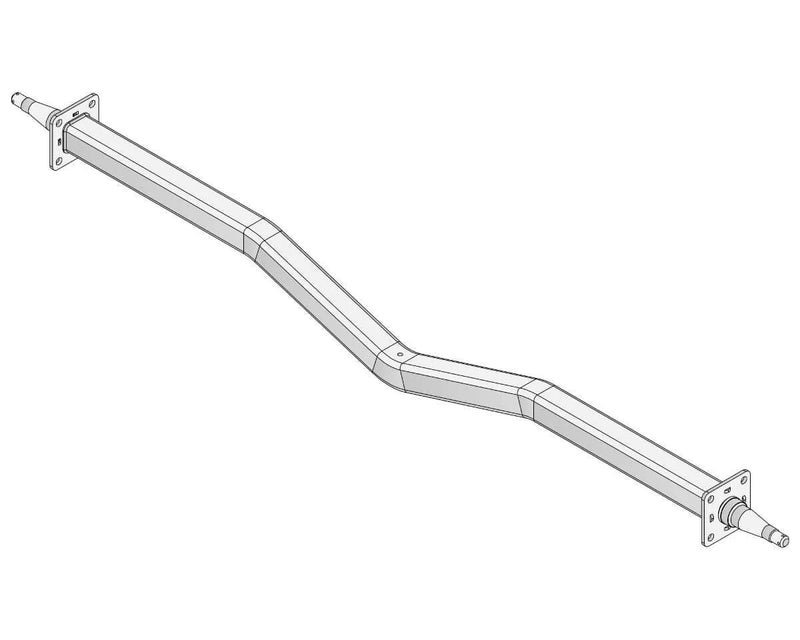

Designed for dependable leaf-spring trailer systems, the Gull Wing Axle - Non-Braked - 1750kg - Galvanised is a purpose-built solution for builders who demand strength, longevity, and precise alignment. The slimline gull wing design provides enhanced ground clearance around the spring pack, helping to protect components and improve overall trailer performance in challenging terrains.

Key features that set this axle apart

• Capacity and type: 1750 kg, non-braked for applications where hydraulic or electric braking systems are not required or are installed separately.
• Finish and durability: galvanised coating delivers superior corrosion resistance for outdoor use, extending axle life in harsh environments.
• Gull wing design: a purpose-built arm configuration that increases clearance around the springs and wheels, reducing the risk of interference and enhancing fit on tight trailer profiles.
• Build options: available as straight beam, drop beam, and gull wing varieties; compatible with leaf spring suspensions across multiple configurations.

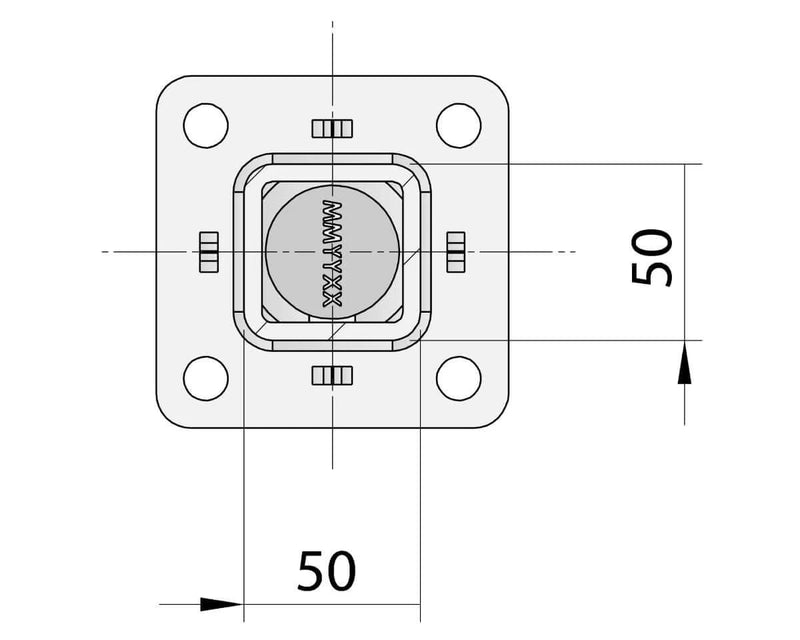

• Beam sizing: constructed from 40 mm, 50 mm, or 65 mm square hollow box sections depending on capacity and specification.
• Made to order: each axle is produced to your exact measurements and requirements with a lead time of at least six weeks.

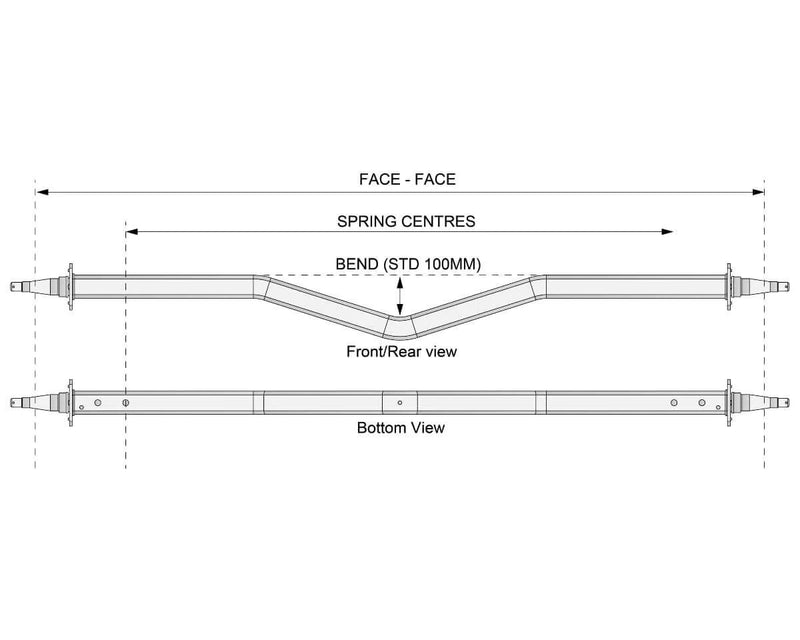

• Measurements required: C (face-to-face hub measurement), D (center-to-center spring mounting), and for Gull Wing, E (depth of the bend) with E options of 60 mm, 90 mm, or 120 mm.
• Hubs: if you need hubs fitted to your new axle, this option is available as part of related products.
• Ordering note: download and complete the Axle Order Sheet (Adobe PDF) upon ordering to ensure accurate fabrication.

Who benefits from the Gull Wing Axle

This axle is an excellent match for builders and operators who require a robust, long-lasting, galvanised solution for trailer applications that use leaf springs. It’s ideal for light commercial trailers, farm and agricultural equipment trailers, utility trailers, and bespoke builds where ground clearance, durability, and precise hub positioning matter.

How it compares to alternatives

Compared to standard straight or drop-beam axles, the Gull Wing variant offers improved spring mounting clearance and a more streamlined profile without sacrificing strength. The galvanised finish provides superior resistance to corrosion in outdoor environments, reducing maintenance needs and extending service life in challenging conditions.

Practical tips for installation and use

• Before ordering, confirm your C, D, and E measurements to ensure the gull wing bend depth aligns with your spring setup and wheel track.
• When planning hubs, check compatibility with your brake system or braking plan, even though this unit is specified as non-braked.
• Prepare the Axle Order Sheet early and submit it with your order to avoid delays in the six-week lead time.
• Budget for final assembly steps: mounting plates, spacing, and any necessary adapters to integrate with your suspension and wheels.

Product Code: AXLE NB SLIMLINE 1750 G/WINGT021690

Axle Order Sheet (Adobe PDF)
