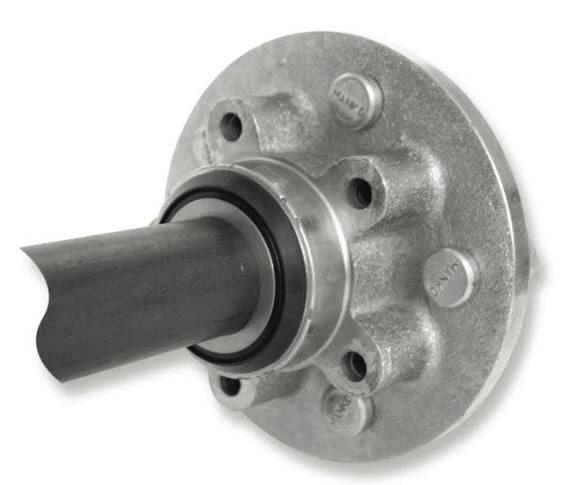

Hub and Stub Kits 2000kg Non-Braked 2PC 5x4 1/2x1/2 is a durable two-piece hub and stub assembly designed for NZ trailers. With a 2000 kg GVM rating per axle when installed as a pair, these non-braked hubs deliver dependable performance for mid-weight to heavier trailer work while keeping installation straightforward.

Built to fit Duratorque and beam axles, they should also suit most NZ manufactured trailer axles. A key advantage is the flexible wheel stud patterns, covering the most common wheel configurations. The most prevalent setup is a 5-stud pattern with a 4.5 inch PCD, paired with rims and tyres widely stocked for NZ trailers. The kit also supports bolt-on disc compatibility, although discs are not included in the package. The included 38 mm stub round axle features a caliper mount for future brake upgrades without needing a complete change of components.

Key features

• Two-piece, non-braked hub kit designed for Duratorque and beam axles
• 2000 kg GVM rating per axle (based on a pair of hubs)
• Wide range of wheel stud patterns to suit common wheel sizes
• Most common configuration: 5 studs, PCD 4.5 inches, with a 1/2 inch stud width
• Discs can be fitted in the future (disc not included in the kit)
• 38 mm stub round axle included with a caliper mount
• Flange diameter of 190 mm across options for reliable mounting
• Multiple pattern options: 5-stud (4.5" PCD) and 6-stud (5.5" PCD) configurations
• Pack weight ≈ 18 kg; ships from supplier within 4–7 days

Fitment and compatibility

Specifically designed for Duratorque and beam axles, these hubs are compatible with most NZ manufactured trailer axles. Their adaptable stud patterns simplify replacement or upgrades, making them a practical choice for boat trailers, utility trailers, or other light- to mid-weight applications where a non-braked setup is appropriate.

Available pattern options

• T124135: 5 studs, PCD 4.5", stud width 1/2", flange diameter 190 mm, hub offset 67.183 mm
• T124140: 5 studs, PCD 4.5", stud width 7/16", flange diameter 190 mm, hub offset 70.535 mm
• T124155: 6 studs, PCD 5.5" (5 1/2"), stud width 1/2", flange diameter 190 mm, hub offset 82.118 mm
• T124105: Blank option, 190 mm flange diameter

Practical use cases

These kits are ideal when upgrading worn hubs on Duratorque or beam axles, or when equipping NZ-made trailers that require a common 5- or 6-stud pattern. The non-braked design keeps upfront costs lower for trailers that operate within non-towed loads or where braking hardware is managed separately. The inclusion of a 38 mm stub axle with caliper mount ensures a smooth path toward future braking upgrades if needed, without swapping to an entirely new hub system.

What’s included and shipping

Each kit provides a complete two-piece hub and stub assembly with the 38 mm stub round axle and caliper mount. Disc components are not included but can be added later if you pursue a bolt-on disc upgrade. Pack weight is approximately 18 kg. Ships directly from the supplier and typically dispatches within 4–7 days.
