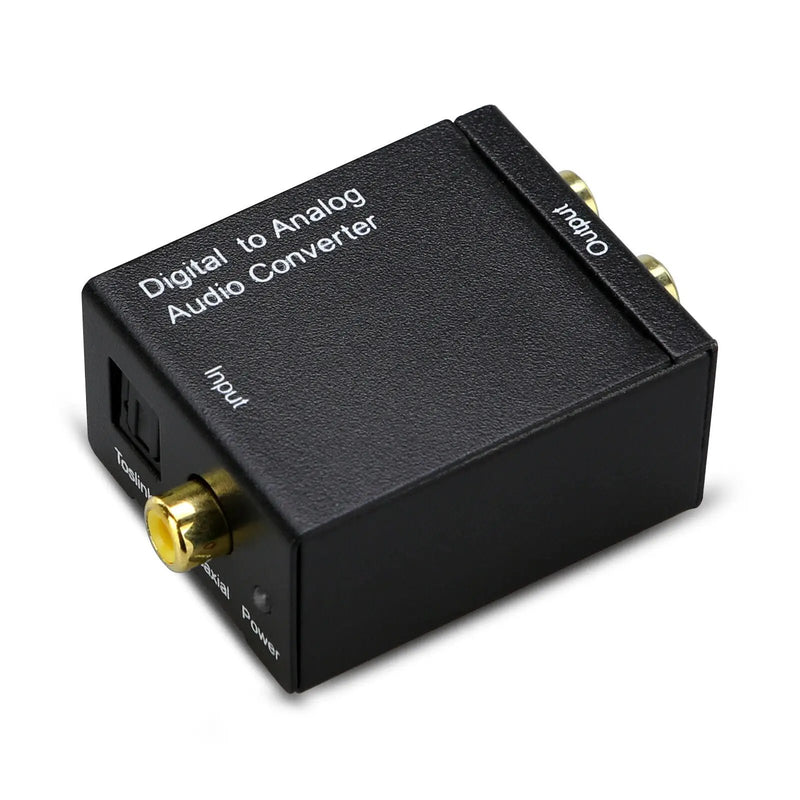

Digital to Analog Audio Converter

Digital Audio Decoder 3.5mm Jack Coaxial Optical Fiber Digital to Analog Audio Converter SPDIF Digital Audio Amplifier

Note
1. SPDIF input must be stereo PCM, please configure the output of your device as it is not compatible with Dolby 5.1.
2. Only 2.1 channels are supported, not 5.1 channels. Please set the audio output to PCM or LPCM.
3. Please do not connect it to the wrong side as it can easily damage the optical interface.
4. Please do not use other plugs, they only accept 5V 1A power plugs.

Features
Converts Coaxial or Toslink Digital Audio Signals to Analog L/R RCA & 3.5mm Jack Audio Simultaneously (Not Support Reversed).

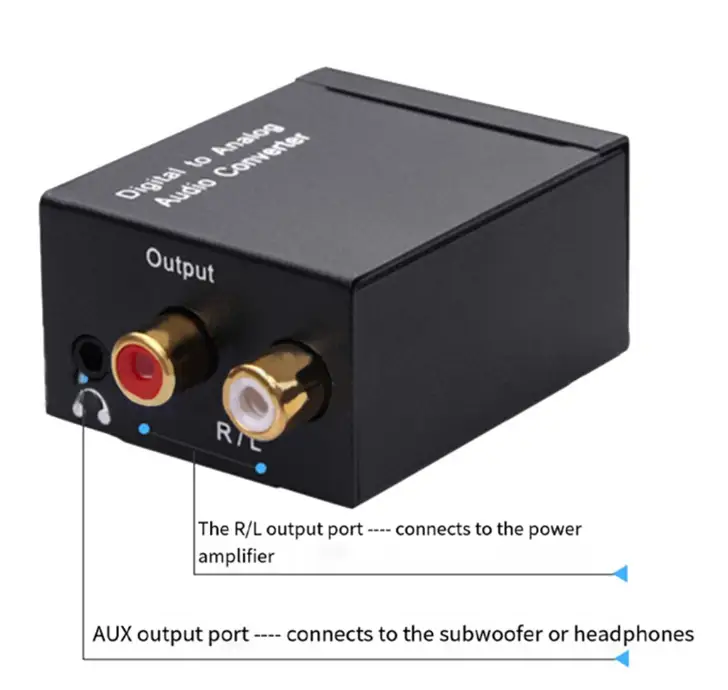

Support Connect to an amplifier via standard RCA jacks or a headphone via 3.5mm jack cable.
Supports uncompressed 2-channel LPCM digital audio signal output.
Supports sampling rate at 32KHz, 44.1KHz, 48KHz and 96KHz.
24-bit SPDIF incoming bit stream on left and right channels.
Digital to Analog Audio Decoder Amplifier Converter 3.5mm For TV Audio Digital Coaxial Fiber Optic Analog Output Converter
Provides electromagnetic-noise-free transmission.

Specifications
Color: Black
Dimension: 51.5x41.7x26mm
Consumption: 0.5W (Max)
Powered by 5.5mm USB Power Cable(Power Adapter is Not Included)

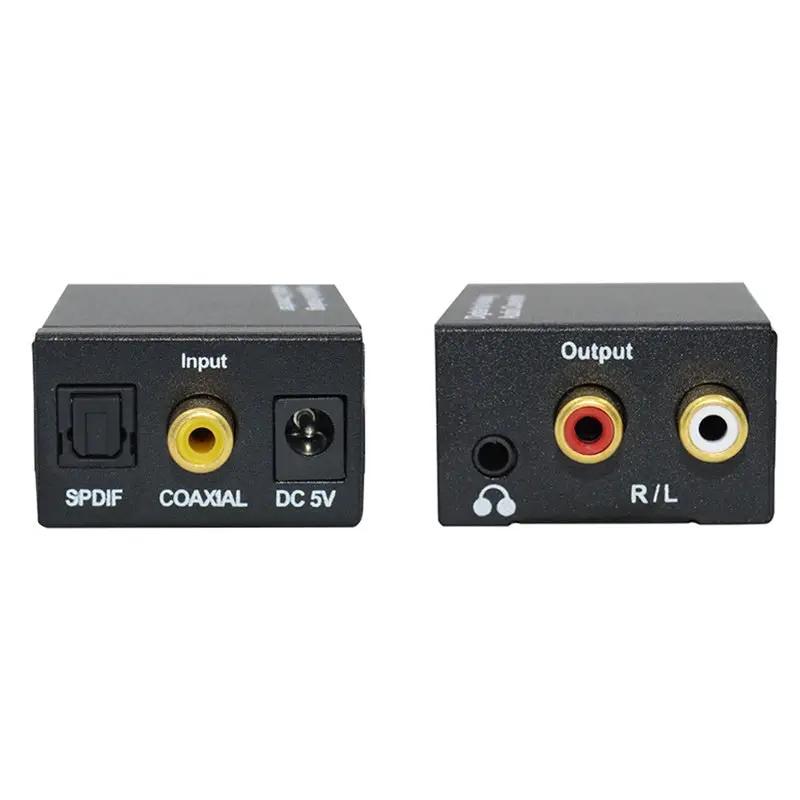

Input Audio Connector: Toslink, RCA (Coaxial)
Output Audio Connector: RCA(R/L), 3.5mm Jack

Package List

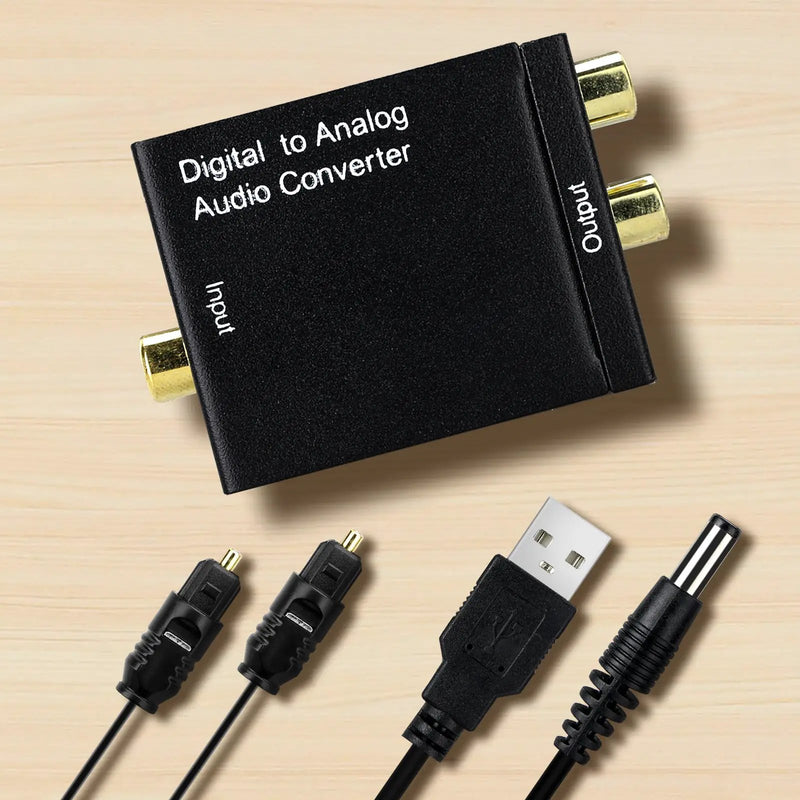

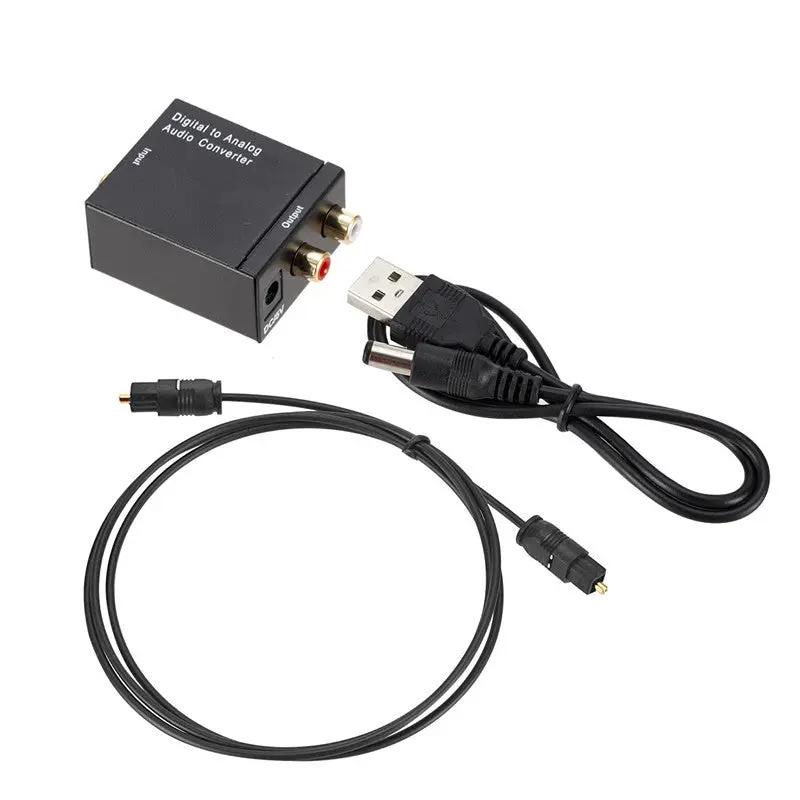

1 x Digital to Analog Audio Converter
1 x Toslink Cable (Optical cable)
1 x USB Power Cable (Power Adapter is Not Included)
1 x User Manual
