AutoAnchor AA150 - Complete

AutoAnchor AA150 - Rode counter Complete Product Code 9131AA Panel mount rode counter for DC electric windlasses

AutoAnchor AA150 - Rode counter Complete

Features

A panel-mount rode counter is suitable for DC electric windlasses using an all-chain or rope/chain rode. It is also suitable for hydraulic or AC-powered windlasses using an all-chain rode.

• Rode length monitoring from the helm.
• A large LCD with adjustable red backlighting shows the length of the anchor rode deployed. Display in feet or metres.
• The docking alarm warns the skipper when the anchor is close to docking.
• Pre-programmed calibrations for rope/chain rodes.
• Install up to two units or combine with the AA550RC, AA500C or AA601 for multiple stations.
• Standard 60mm (2.36”) marine instrument console.

Order as

9131AA - Complete Kit 150 AA Kit Suitable for all-chain or rope/chain.

Kit Includes - Console, Grey Sensor with plug, 2 two magnets, 1.5m connection cable, Console fastening kit (#102910), installation instructions, motor load sensor terminators, diagrams and operation manual for vertical windlasses.


Note: Sensor Extension Harness Cables are purchased separately - don't hesitate to get in touch with us.

Specifications

Technical Specifications - AA150

Power Supply: 12/24V DC

Temperature Range: 23° to 140°F (-5° to 60°C)

Current Consumption: 30mA

Solenoids: N/A

Maximum Voltage: 30V

EMC/Protection/CE: EN60945

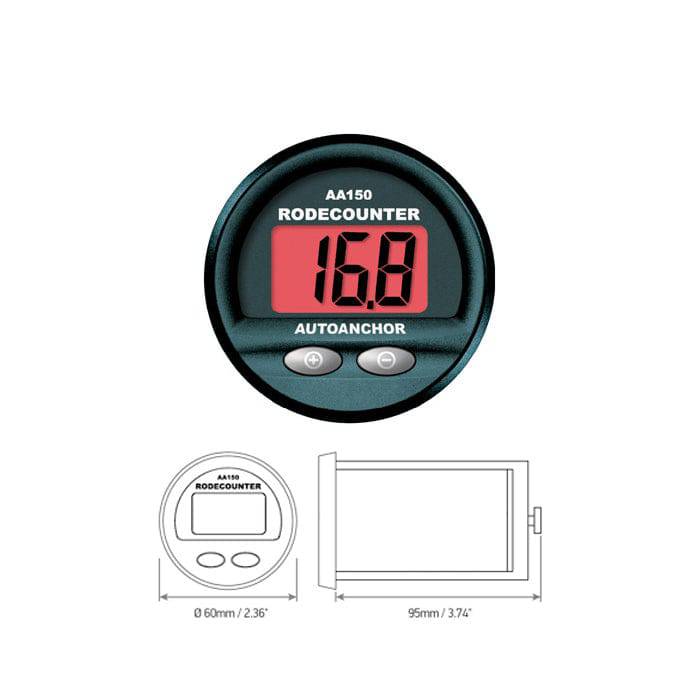

Dimensions: Diameter 60mm (2.36") Standard Marine Instrument Gauge Size.

Please note product specifications may change without notice, and the latest product specifications may not be reflected in the versions available on this website.

THIS ITEM IS SHIPPED DIRECTLY FROM THE SUPPLIER

PRODUCT CODE 9131AA

5-2024
