Horrex DIY Internal Blind Kits

Horrex DIY Internal Blind Kits NZ — The UCS Resizable Blind System

The Horrex DIY Internal Blind Kit is the only resizable motorhome blind on the market. Using the patented UCS (Unlimited Creative Solutions) modular system, each kit can be cut down on-site to fit virtually any window size — no special tools required.

Read more

Why Choose Horrex UCS Blinds?

  • Cut-to-fit: Start from 15 base sizes and trim to your exact window dimensions
  • 4-layer blackout fabric: Complete darkness for sleeping — no light bleed
  • Duo Plissé design: Combined pleated flyscreen + blackout shade in one compact unit
  • Noise-free operation: Side guide channels prevent rattling while driving
  • Quick installation: Tool-free mounting with just 4 screws — under 15 minutes per window
  • Compact profile: Only 33.7mm construction height — the slimmest blind system available
  • Fire retardant options: FR-rated fabric and mesh versions available

Size Guide — All 15 Kits

Kit Size (W×H mm) Min Reducible Size Price (NZD) Best For
472 × 501 ~473 × 240 $251 Small side windows, bathroom
472 × 808 ~473 × 240 $289 Tall narrow windows
472 × 1100 ~473 × 240 $384 Full-height narrow windows
872 × 501 ~473 × 240 $346 Standard side windows
872 × 808 ~473 × 240 $403 Medium kitchen/lounge windows
872 × 1100 ~473 × 240 $492 Large side windows
1172 × 501 ~473 × 240 $361 Wide low windows
1172 × 808 ~473 × 240 $460 Standard lounge windows
1172 × 1100 ~473 × 240 $535 Large lounge/bedroom windows
1472 × 501 ~473 × 240 $466 Wide panoramic windows
1472 × 808 ~473 × 240 $526 Wide mid-height windows
1472 × 1100 ~473 × 240 $650 Extra-large windows
1800 × 501 ~473 × 240 $494 Full-width low windows
1800 × 808 ~473 × 240 $720 Full-width mid-height windows
1800 × 1100 ~473 × 240 $680 Maximum coverage windows

How to Measure Your Window

  1. Measure the internal aperture (cut-out) of your window — width and height
  2. Choose the kit size that is equal to or larger than your aperture
  3. Cut the kit down to your exact measurements using the included instructions
  4. The blind frame sits over the aperture, covering raw edges for a clean finish

Technical Specifications

  • Frame colour: RAL9001 (cream) — corner caps included
  • Top/bottom profile: PVC extrusion, 40 × 32mm with ventilation holes
  • Side profiles: Aluminium extrusion, 40 × 32mm
  • Pull bars: Natural anodized aluminium, 26.4 × 15mm
  • Blackout fabric: 4-layer — white front, PET backing with built-in aluminium insulating layer, 0.3mm thick, 15mm pleat
  • Mesh: Black polyester, 1.3 × 1.3mm openings, 15mm pleat
  • Construction height: 33.7mm installed
  • Mounting: Face-fixed with 4 × 3.5 × 25mm screws

Specifications sourced from the Horrex manufacturer website. Always verify measurements before cutting. Action Outdoors is an authorised NZ stockist — not the manufacturer.

Installation & Product Videos

How to Resize a Horrex UCS Plissé Combi Blind

Horrex UCS Resizable Blind — Installation Guide

Horrex Product Portfolio — 35 Years of Innovation (Caravan Salon 2022)

Filters

$
$
Horrex DIY Internal Blind Kit 472 x 501mm compact window blind system with modern design and easy mounting. Sale Sale
$279.99
$279.99 - $279.99
$279.99
$251.00
$251.00 - $251.00
$251.00

Horrex DIY Internal Blind Kit 472x501mm For RVs Quick Install Customizable Size Four Layer Blackout

RV & Marine Supplies

Horrex DIY Internal Blind Kit 472 x 501mm is a compact, fast-to-mount window shading solution designed specifically for RVs and motorhomes. Built ...

View full details
$279.99
$279.99 - $279.99
$279.99
$251.00
$251.00 - $251.00
$251.00
Sale Sale
Horrex DIY Internal Blind Kit 472 x 808mm installed window blind system with adjustable slats. Sale Sale
$332.99
$332.99 - $332.99
$332.99
$289.00
$289.00 - $289.00
$289.00

Horrex DIY Internal Blind Kit 472 x 808mm Four Layer Blackout for RVs Easy Install Light Control and Privacy

RV & Marine Supplies

Meet the Horrex DIY Internal Blind Kit 472 x 808mm—the compact, quick-to-mount window blind system designed to fit seamlessly into any RV interior...

View full details
$332.99
$332.99 - $332.99
$332.99
$289.00
$289.00 - $289.00
$289.00
Sale Sale

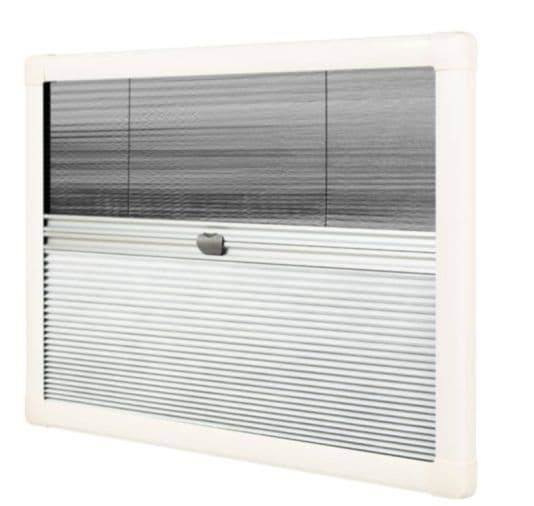

Horrex DIY Internal Blind Kit 872 x 501mm featuring a sleek modular design for customizable RV window coverage. Sale Sale
