Concrete Lifting Ring Clutch - SLR G80 5.0T WLL
Concrete Lifting Ring Clutch - SLR G80 5.0T WLL
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand

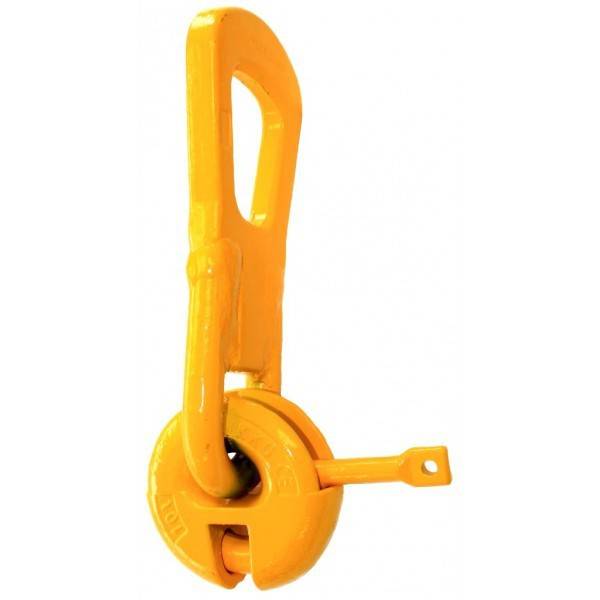

Concrete Lifting Ring Clutch - SLR G80 5.0T WLL - Super Cast Alloy Locking Ring Product Number SLR-547-3.0T-5.0T
Concrete Lifting Ring Clutch - SLR G80 5.0T WLL
Features
- Super Cast Alloy Locking Ring
- Lifting Ring is Forged Alloy Steel
- 100 percent Magnaflux Crack Tested
- Yellow Powder Coated Protection
- Safety Factor of 5;1
- Rating; 5.0T WLL
[Reid Formida Type]
Annual Proof Load 1.2 x WLL [AS3850]
Markings on Clutch
Cast Locking Ring; SLR, CE, A-Z, Rating
Forged Ring; SLR, CE, WLL, Factory Batch No.
Box Quantities; 2.5T / 10, 5.0T / 4,
2.5T Ring Lifting Clutch Minimum Fit; 16mm Connector, 10mm Sling or Safety Hook
5.0T Ring Lifting Clutch Minimum Fit; 22mm Connector, 13mm Sling or Safety Hook
Ring Load Pin Dia; 2.5T / 13mm, 5.0T / 17mm
Please Note;
The 2.5T Ring Clutch will not fit the 1.3T Reid Eye Anchors
The 5.0T Ring Clutches will fit 7.0T Anchors but MUST NOT be used over 5.0T WLL
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING
Product No. SLR-547-3.0T-5.0T
