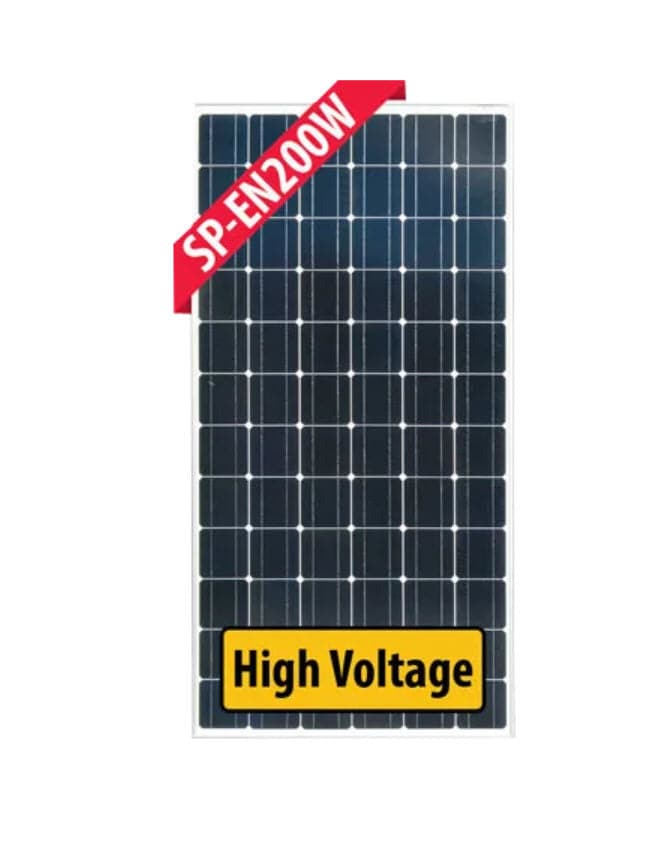

Enerdrive Solar Panel 200W - MONO 24V
Enerdrive Solar Panel 200W - MONO 24V
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Enerdrive Solar Panel 200W - MONO 24V Enerdrive has a range of Mono and Poly Crystalline solar panels from 10 to 200watts
Enerdrive Solar Panel 200W - MONO 24V
Features
Enerdrive solar panels are typically around 20+vdc open circuits and are well suited to 12v installations (or 24v by series connections of panels).
Enerdrive has a range of Mono and Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and is well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 and 20w panels, while the larger panels have MC4 compatible solar cable connectors included.
Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support are I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly, that same level of support that we have provided
for many years with all Enerdrive products.
Specifications
| Enerdrive Part Number | SP-EN200W |
|---|---|
| Max Power Pm(W) | 200 |
| Power Tolerance % | - 1% ~ + 3% |
| Max Power Voltage Vm(V) | 37.30 |
| Max Power Current Im(A) | 5.37 |
| Open Circuit Voltage Voc(V) | 43.7 |
| Short Circuit Current Isc(A) | 6.05 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1580 x 808 x 40 |
| Weight (kg) | 15 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS
PRODUCT CODE SP-EN200W-24V
