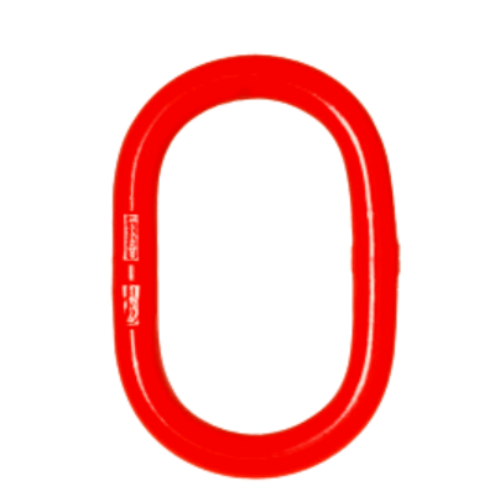

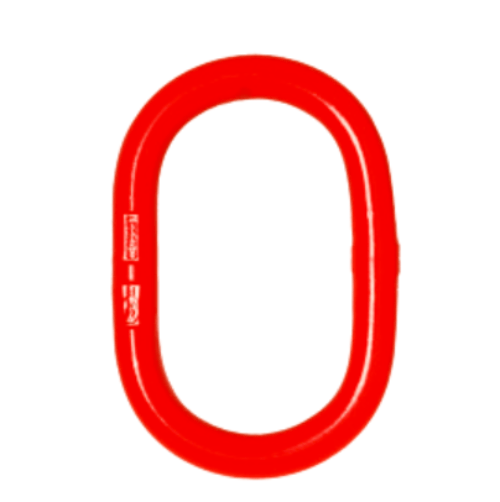

Master Ring - Thiele TWN0808 GK8 28mm-33.5T

Master Ring - Thiele TWN0808 GK8 - 28mm-33.5T - International Standards EN1677 Product No. F0808286

Master Ring - Thiele TWN0808 GK8 28mm-33.5T

Features

• Top Quality GK8
• Made in Germany
• International Standards EN1677
• High Quality Grade 80
• Chart WLL Ratings are 2Leg at 90Deg
• Size/Rating; 28mm - 33.5T at 90Deg

Specifications

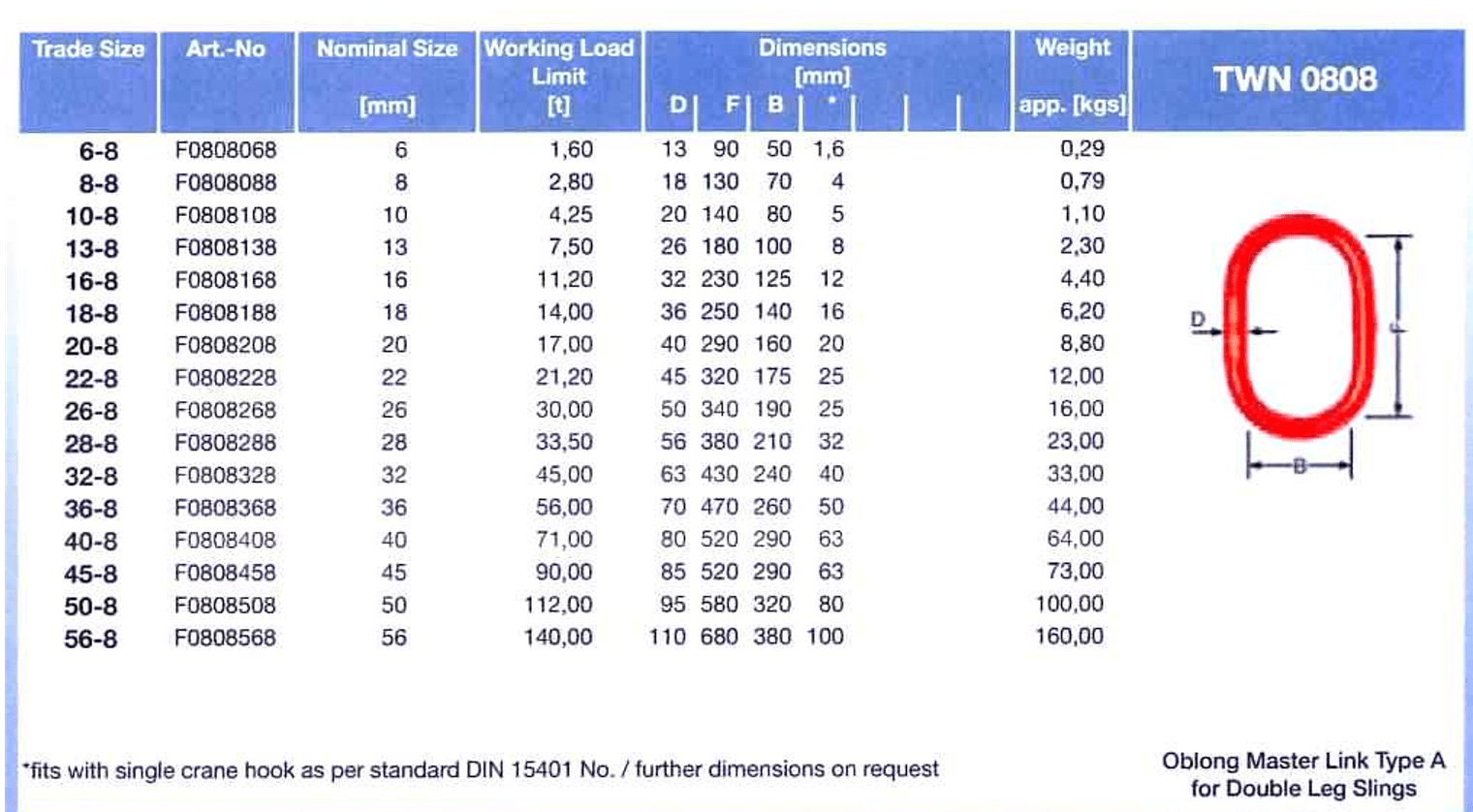

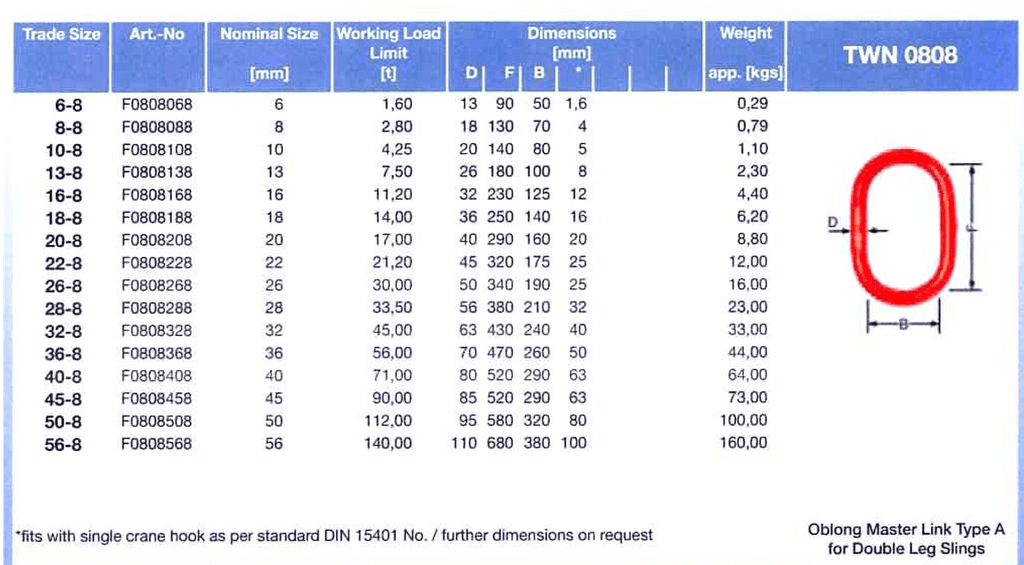

Master Ring WLL Ratings;

8mm Ring - 1Leg 2.00T or 2Leg 2.80T WLL at 90Deg

10mm Ring - 1Leg 3.15T or 2Leg 4.25T WLL at 90Deg

13mm Ring - 1Leg 5.30T or 2Leg 7.50T WLL at 90Deg

16mm Ring - 1Leg 8.00T or 2Leg 11.2T WLL at 90Deg

20mm Ring - 1Leg 12.5T or 2Leg 17.0T WLL at 90Deg

22mm Ring - 1Leg 15.0T or 2Leg 21.2T WLL at 90Deg

26mm Ring - 1Leg 21.2T or 2Leg 30.0T WLL at 90Deg

28mm Ring - 1Leg 25.0T or 2Leg 33.5T WLL at 90Deg

32mm Ring - 1Leg 31.5T or 2Leg 45.0T WLL at 90Deg

36mm Ring - 1Leg 40.0T or 2Leg 56.0T WLL at 90Deg

40mm Ring - 1Leg 50.0T or 2Leg 71.0T WLL at 90Deg

45mm Ring - 1Leg 63.0T or 2Leg 90.0T WLL at 90Deg

PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS

THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING

Product No. F0808286
