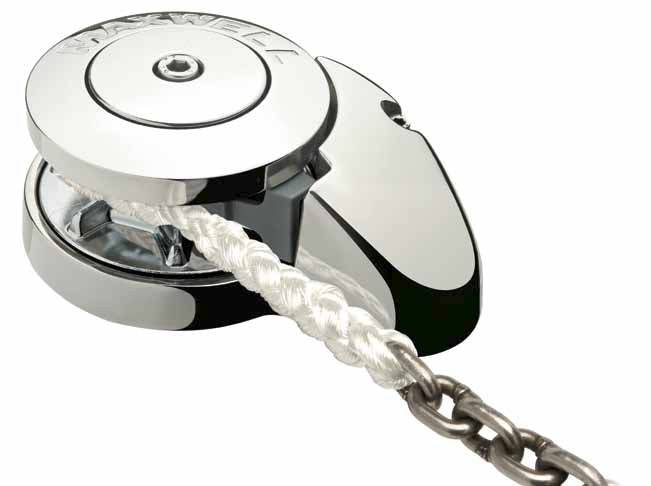

Maxwell Windlass RC6 - 24V 500W

Maxwell Windlass RC6 - 500W - Suitable for boats 5-7m in length - Product Code MRC6KIT - Featuring a new Wave Design

Maxwell Windlass RC6 - 500W -24V EMAIL OR RING FOR STOCK INFO

Features

Maxwell's all-new RC series windlasses proudly follow in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches. The RC6 is available in a low-profile version and is suitable for boats 5-7m long.

• Includes circuit breaker AND up/down switch
• The combined stainless steel and chromed bronze RC6 Series utilises a 6mm/7mm (1/4”) chain spliced to 12mm (1/2”) three-strand or 8-brait (plait) rope.
• The RC6 features Maxwell’s revolutionary and patented new Wave Design chainwheel. Refer below for more information about this innovative feature.
• The in-line, vertical gearbox and motor mean quick and easy installation by either the boat yard or the DIY aftermarket customer.
• An inexpensive, high-performance, great-looking windlass, the RC6 is built for durability and years of trouble-free use.
• The RC6 is a Low Profile unit (no optional capstan drum).

Maxwell’s revolutionary new chainwheel.

Maxwell once again leads the market in innovative thinking by introducing their latest Wave Design™ chainwheel. This patented rope/chain wheel incorporates two unique design concepts that significantly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

As the rope pulls into the wheel, the opposite-facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope compared to all other products on the market. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Wave Design Chainwheel

It is fitted to all RC Series windlasses and designed for anchor rodes with any marine-grade chain, G4, BBB, Proof Coil, or Metric.

Chainwheel’s unique Wave Design action

Dimensions

• A 196mm - 7 3/4in
• B 80mm - 3 3/16in
• C 145mm - 5 3/4in
• D 209mm - 8 1/4in
• E 65mm - 2 1/2in
• F 39mm - 1 9/16in

Specifications

• Model- RC6
• Maximum Pull/Lift- 350kg
• Static Hold- 700kg
• Chain: Short Link 6mm/7mm 1/4in
• Rope Size: (Nylon)* 12mm (3 strands or eight plaits recommended) 1/2in
• Chain Speed (Anchor Retrieval)- 24m/min, 79ft/min
• Rope Speed (Anchor Retrieval)- 21m/min 69ft/min
• Power Supply (DC)- 24V
• Motor Power- 500W
• Net Weight 8.5kg

In the box

1. Windlass/motor/gearbox
2. Solenoid
3. Up/Down Switch
4. Circuit Breaker

Complete Rope/Chain packages to suit the Maxwell windlass available. Please ask for a complete package quote.

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS

PRODUCT CODE MRC6KIT-24V
