Wallas

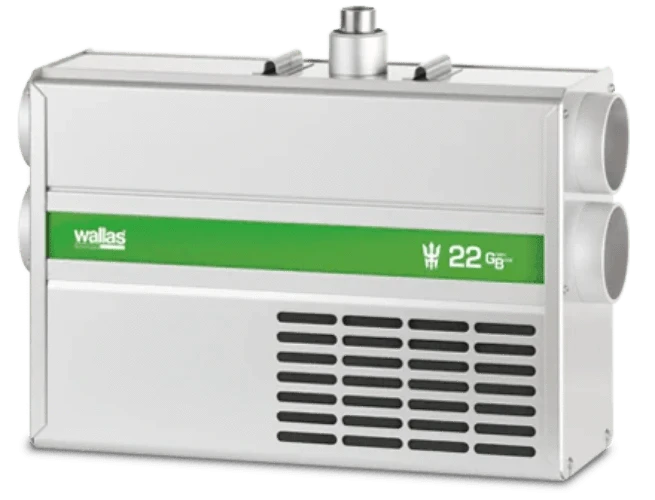

Wallas 2.2Kw Diesel Heater 22GB 12V
Sent from NZ Supplier (1-2 Days)
Wallas 2.2Kw Diesel Heater 22GB 12V - Our new 22GB offers increased heating power and greater air volume for Boat Owners.
Wallas 2.2Kw Diesel Heater 22GB 12V
Features
New, more powerful 2,2Kw heater for environmentally minded customers!
Our new 22GB offers boat owners increased heating power and greater air volume. More heating power means you can heat your boat faster, saving power and fuel with shorter heating time.
With 2.5 kW of heating power, the Wallas 22 GB is perfect for smaller boats, camper vans, and trailers, and using only 1 amp at full power, it is an excellent option for sailboats. Improving on the older 22 Dt model, the 22 GB is more powerful and energy-efficient. Double inlet pipes ensure you have oxygen-rich, fresh air circulating in your boat. Wallas off-grid heaters are pleasant to use as the variable output eliminates system cycling and noise.
While a 22 GB entry-level compact 12 V diesel heater has an easy-to-use thermostatic control panel, adjusting it to the desired temperature ensures everyone is comfortable below deck.
- Enjoy smooth temperature in the cabin.
- Ensure everyone’s safety with a heater that has a low temperature on the unit and exhaust pipe.
- Keep interior upholstery fresh and windows dry with dry heat from the laminar combustion.
- Have better comfort control with an easy-to-use thermostatic control panel.
- Save fuel and electricity with energy-efficient Wallas Greenboost technology.
- Variable output eliminates system cycling and reduces noise.
- Brushless blower motors have a long life cycle and require less frequent servicing.
- Feeding fuel directly from the main tank of the vessel saves space and eliminates the need for a separate tank.
- Durable Finnish design and manufacturing keep your heater running through harsh weather conditions.
- Three-second press-and-hold upon starting the unit improves safety for families with children.
QUIET- Variable output eliminates disturbing system cycling and reduces noise.
TECHNICAL SPECIFICATIONS:
Fuel: Diesel, HVO renewable diesel
Power: 1100-2500 W (3,700-8,500 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,10-0,25 l/h (3.4-8.5 oz/h)
Electricity Consumption: 0,55-1,0 A
Air Volume at min Heat: 51 m3h (30 cfm)
Air Volume at max Heat: 79 m3/h (47 cfm)
Length: 424 mm (16 11/16″)
Width: 140 mm (5 1/2″)
Height: 277 mm (10 7/8″)
Weight: 10 kg (22 lbs)
Mounting: Floor or wall
RECOMMENDED BUILDS:
Boats: 5-7 m (16-22 ft)
Camper vans (retrofitted): VW T6, MB Vito
Trailers: 4 m (13 ft)
STANDARD PACKAGE CONTENT:
- Heater
- PI Thermo Control Panel, wire 6 m (19 ft)
- Fuel line 4 m (13 ft)
- Power cable 4 m (13 ft) with connector and integrated fuse 15 A
- Mounting plate, feet brackets
- Accessory bag including essential clamps and screws
- 4430 Remote Control is an additional accessory
MATERIALS:
Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials
Recommended builds should be used as general guidelines. The needed heat output is mainly based on the material (wood, fibreglass, aluminium, etc.) and the structure of the boat. Please always talk about this with a Wallas distributor before making your purchase.
Technical values are measured in a reference measurement wall constructed to represent a typical boat installation. Values have been measured with the maximum length of ducting, exhaust pipe, fuel line, and power cord. Figures allow for a 10% reserve – yours may vary.
Wallas diesel heaters are designed to run with standard road and boat diesel and renewable fossil-free diesel. Check with your distributor for further details on the best options for your needs.
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS
Product Code 22GB
