Wallas

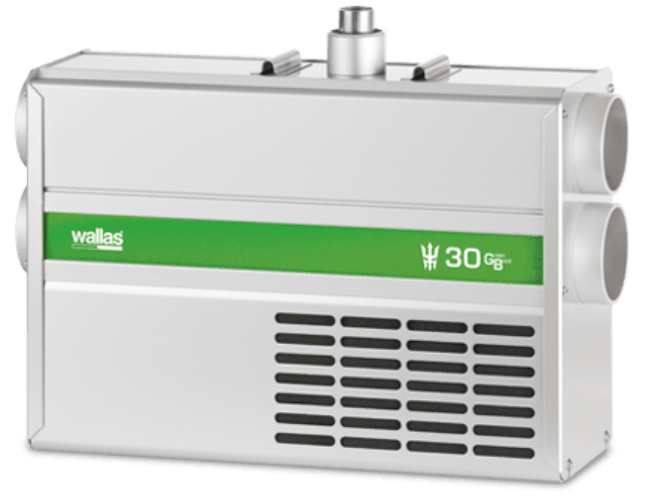

Wallas 3.0Kw Diesel Heater 30GB 12V
Sent from NZ Supplier (3-4 Days)
Wallas 3.0Kw Diesel Heater 30GB 12V -New, more powerful 3.0Kw heater for environmentally minded customers
Wallas 3.0Kw Diesel Heater 30GB 12V
Features
New, more powerful 3.0Kw heater for environmentally minded customers
Our new 22GB offers increased heating power and greater air volume for boat owners. More heating power means you can heat up your boat faster, saving power and fuel with a shorter heating time.
A new, more powerful brushless blower motor gives higher efficiency to the heater and better moisture management, important for wet conditions. Improving on the features of the 30Dt, the new 30GB moves more air, improving ventilation and fresh air flow.
With its new laminar flow burner and new software, the 30GB is designed to work with today’s road and boat diesel -EN590- but also with future renewable -HVO 15940- and blended -B10 EN 16734, B20/B30 EN 16709- bio road diesel. This means the 22GB is ready for fuels being developed for the future. The new burner has ultra-low emissions, including very low CO2 and NOx levels.
Construction features more renewable and recycled materials while improving durability and reliability, featuring stainless steel, high-grade aluminum, and other corrosion-resistant materials. Wallas-Marin assures you will have the best marine diesel heater for your needs, now and in the future.
Outside dimensions, controls, and connectivity are the same as old 30Dt models. This means upgrading to the new GB heaters is quick and easy.
Low Amps
- 0.7 - 1.2 A power consumption enables you to keep your boat warm, even with a small battery capacity.
- Silent -The measured sound level of the device is equivalent to whispering in a library.
- Laminar combustion assures that your neighbor's boat can also enjoy the silence of nature.
- To ensure the highest quality, every single Wallas product is carefully tested before delivery.
Specifications
- Fuel - Diesel
- Power - 1000-3200 W
- Operating voltage-12 V
- Fuel consumption-0.1-0.33 l/h
- Electricity consumption-1.0-2.0 A
- Heat min-61 cubed meters /h -30 cfm
- Heat max-103 cubed meters/h
TECHNICAL SPECIFICATIONS
Fuel: Diesel, HVO renewable diesel
Power: 1500-3000 W (5,100-10,200 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,15-0,3 l/h (5.2-10.5 oz/h)
Electricity Consumption: 0,8-1,75 A
Air Volume at min Heat: 61 m3/h (36 cfm)
Air Volume at max Heat: 103 m3/h (61 cfm)
Length: 424 mm (16 11/16″)
Width: 140 mm (5 1/2″)
Height: 277 mm (10 7/8″)
Weight: 10 kg (22 lbs)
Mounting: Floor or wall
RECOMMENDED BUILDS
Boats: 7-9 m (22-29 ft)
Camper vans (retrofitted): MB Sprinter, Fiat Ducato
Trailers: 4-8 m (13-26 ft)
STANDARD PACKAGE CONTENT
Heater
PI Thermo Control Panel, wire 6 m (19 ft)
Fuel line 4 m (13 ft)
Mounting plate, feet brackets
Power cable 4 m (13 ft) with connector and integrated fuse 15 A
Accessory bag including essential clamps and screws
MATERIALS
Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials
Recommended builds should be used as general guidelines. The needed heat output is based largely on the material (wood, fibreglass, aluminum etc.) and structure of the boat. Always discuss this with a Wallas distributor before making your purchase.
Technical values are measured in a reference measurement wall constructed to represent a typical boat installation. Values have been measured with the maximum length of ducting, exhaust pipe, fuel line, and power cord. Figures allow for 10% reserve – yours may vary.
Wallas diesel heaters are designed to run with standard road and boat diesel and renewable fossil free diesel. Check with your distributor for further details on the best options for your needs.
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS
Product Code - 30GB
