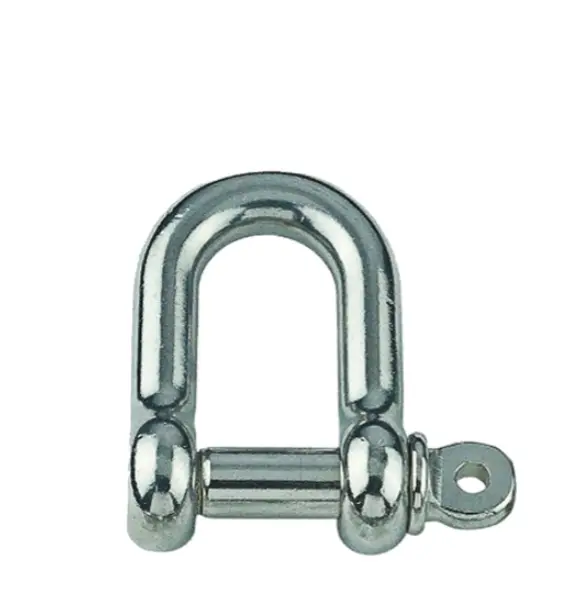

The Sinox S360 316 Standard D Shackle (locked pin) features screw collared pins with hole for security tie wire. It's designed for applications where accidental dropping of pin must be avoided during operation like high sea environment or high tower/pole locations. Hot dipped galvanised, these shackles are highly rust resistant.
Sinox S360 316 Standard D Shackle Technical Features:
- Casting material: AISI304 - DIN 1.4308/ AISI316 - DIN 1.4408
- Forging material: AISI304 - DIN 1.4301/ AISI316 - DIN 1.4401
- Production: S360CP - Shackle - Cast
- Surface treatment: "E.P." (electro polished)
Sinox S360 316 Standard D Shackle Specifications:
| Product | Size (mm) | øA (mm) | B (mm) | L (mm) |
|---|---|---|---|---|
| M4 | 4 | 4 | 8 | 16 |
| M5 | 5 | 5 | 10 | 20 |
| M6 | 6 | 6 | 12 | 24 |
| M7 | 7 | 7 | 14 | 28 |
| M8 | 8 | 8 | 16 | 32 |
| M10 | 10 | 10 | 20 | 40 |
| M12 | 12 | 12 | 24 | 48 |
| M16 | 16 | 16 | 32 | 64 |
| M19 | 19 | 19 | 38 | 76 |
| M25 | 25 | 25 | 50 | 100 |
