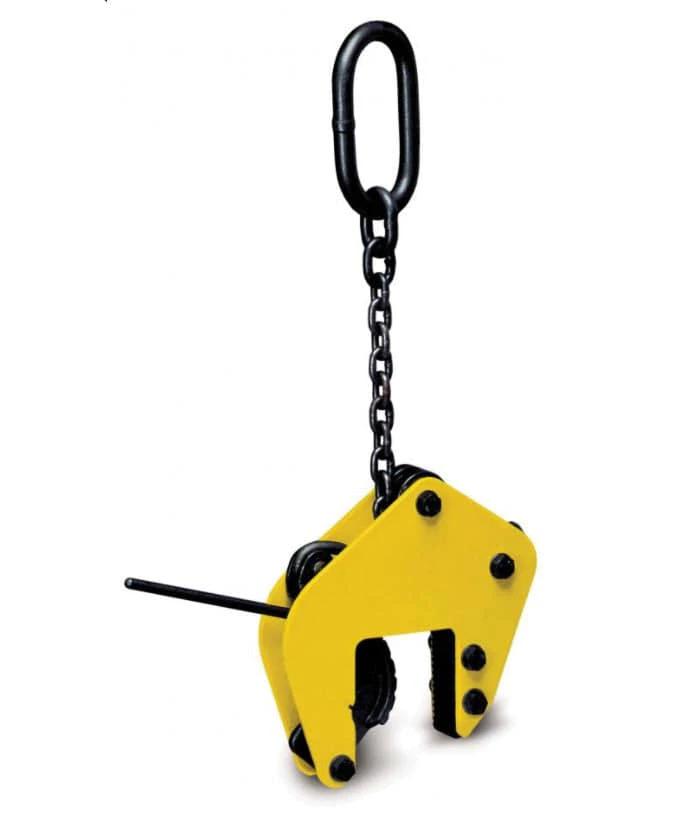

Camlok Wide Jaw Vertical Clamp 5.0TWLL – Fast-Action, Heavy-Duty Universal Clamp

The Camlok Wide Jaw Vertical Clamp 5.0TWLL 5-90mm is engineered for reliable, repeatable holds in demanding fixtures. With a tall, robust profile and a generous jaw opening, this clamp delivers stable compression on tall or bulky workpieces, making setup quicker and more predictable across welding, machining, and assembly tasks.

Key strengths that keep fixtures moving

• Positive tension jaw spring preserves gripping force even if the chain loosens during adjustments, ensuring consistent hold without rework.
• One-handed operation via a Quick-Open lever lets you position, secure, and release fast—minimizing downtime between clamps on busy setups.
• Wide jaw with 5–90 mm range accommodates a broad spectrum of components—from small parts to larger frames—without needing to reposition multiple clamps.
• Heavy-duty 5.0T WLL provides confident, robust clamping for fixturing that demands substantial holding power, reducing deflection and misalignment during work.
• Universal design suited for welding jigs, machining setups, and assembly fixtures, making it a versatile addition to any fabrication shop.

Use cases that benefit from its design

• Welding fixtures and frames where a repeatable grip matters, preserving alignment across passes.
• Milling or drilling jigs that require repeatable clamps to speed up setups and ensure accuracy between operations.
• Woodworking setups handling panels or assemblies where a strong yet adjustable hold is essential.
• Fast-paced production environments needing quick part changes without sacrificing stability.

Why this clamp stands out in practice

Designed for reliability in challenging setups, the Camlok Wide Jaw Vertical Clamp combines a secure grip, rapid operation, and a broad clamping range into a single, universal tool. Its vertical orientation optimizes clearance for tall workpieces, while the wide opening and hefty load rating ensure it remains stable from first clamp to final weld or cut.

Specifications at a glance

• Clamp size / range: 5.0TWLL / 5–90 mm
• Working Load Limit: 5.0T
• Product number: TAG-5000/90F
• Shipping and availability: Ships directly from the supplier

Practical tips for optimal performance

• Clean jaw surfaces and seating surfaces before clamping to maximize the preventive grip of the tension jaw spring.
• Verify chain tension after positioning any heavy workpiece to maintain consistent force throughout the operation.
• Use the wide jaw to center the part, then fine-tune with incremental tightening to avoid distortion on delicate components.

Trust the Camlok Wide Jaw Vertical Clamp to deliver quick setup, strong holds, and repeatable results across welding, machining, and assembly fixtures. If you’re coordinating complex fixturing or juggling multiple parts in a high-speed line, this universal clamp is ready to keep your workflow steady and efficient.
