0-190Ω Fuel Float Sensor + Fuel Level Gauge(Option) 7 Color Backlight Fuel Tank Level Gauge With Alarm Light For Marine Car RVS

ChinaSKU: 14:365458#with 200mm sensor

Color: with 200mm sensor
Price:
Sale price$79.99 NZD

NOTE

Sent from China (7-45 Days)

Sent directly from China

Description

SPECIFICATIONS

Application: Car Fuel Gauge for car truck yacht

Backlight color: 7 colors backlight

Brand Name: RYSJM

Country/Region of Manufacture: China

Fuel Level Gauge 0-190Ω: 0-190ohm water level gauge

Fuel Level Sensor(Optional): 100~550mm

Fuel Sending Unit: fit for Water Level Gauge Fuel level gauge

Input signal: 0~190ohm

Interchange Part Number: Mini Digital Fuel Meter Motorcycle Gauge

Item Height: 0

Item Length: 52mm Marine Boat Water Tank Level Gauge

Item Weight: 0.4kg

Item Width: 52mm

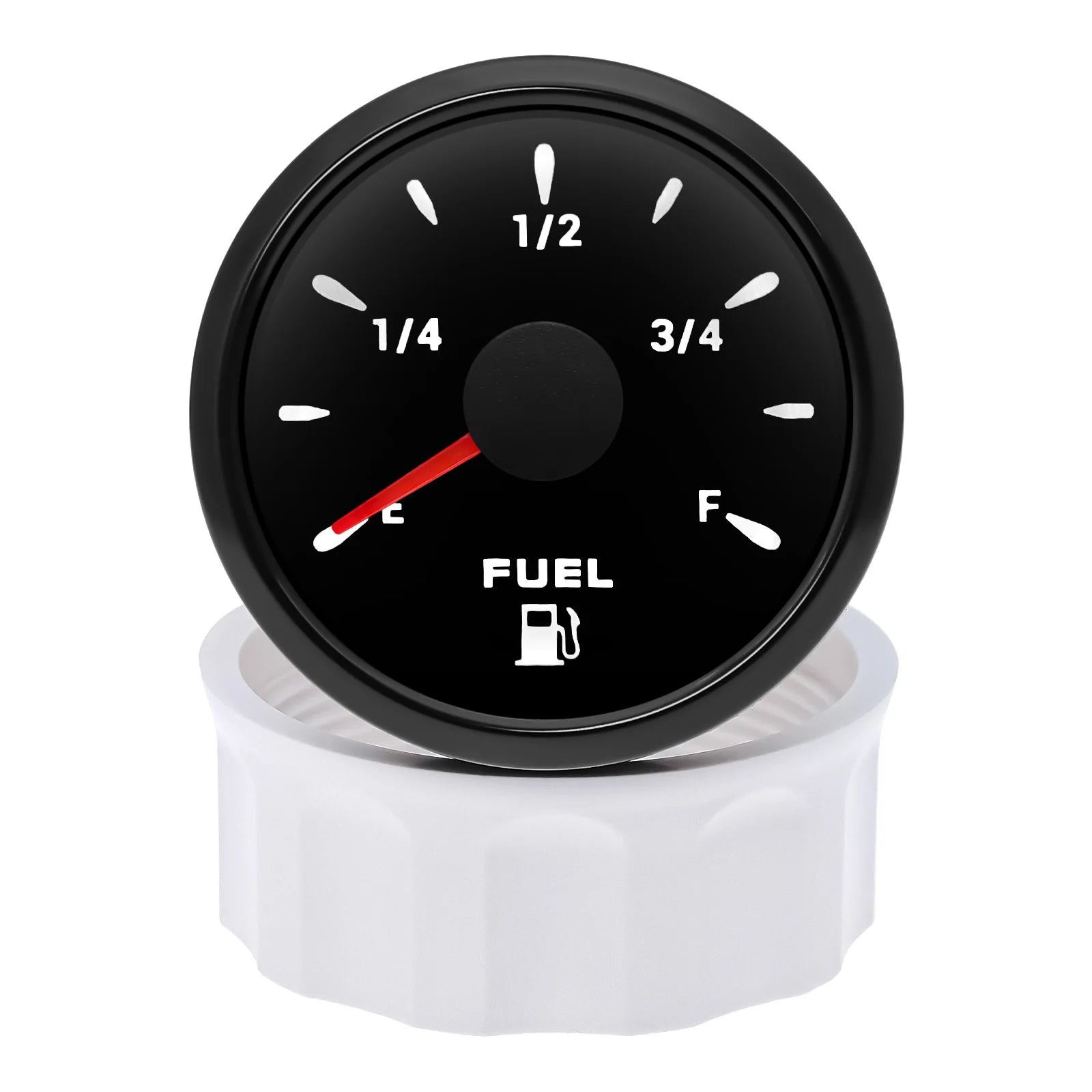

Item name: 52mm Fuel Level Gauge

Manufacturer Part Number: Auto Digital Fuel Level Gauge

Material: stainless steel 316L bezel+anti-fog glass

OEM NO.: Fuel Level Gauge Meter

Origin: Mainland China

Other Part Number: fuel level gauge

Placement on Vehicle: Front

Special Features: 0-190ohm Fuel Level Meter

Type: Fuel Gauges for Auto Boat

Water Liquid Meter: Car Boat Water Tank Level Gauge

boat car fuel gauge: fuel level sensor

boat fuel gauge: LEVEL SENSOR

feture: Auto Digital Fuel Level Gauge

fuel gauge sending sensor: fit Fuel Level Meter

fuel gauge sending sensor support: Water Liquid Level Gauge Meter

fuel level: car meter

Package 2

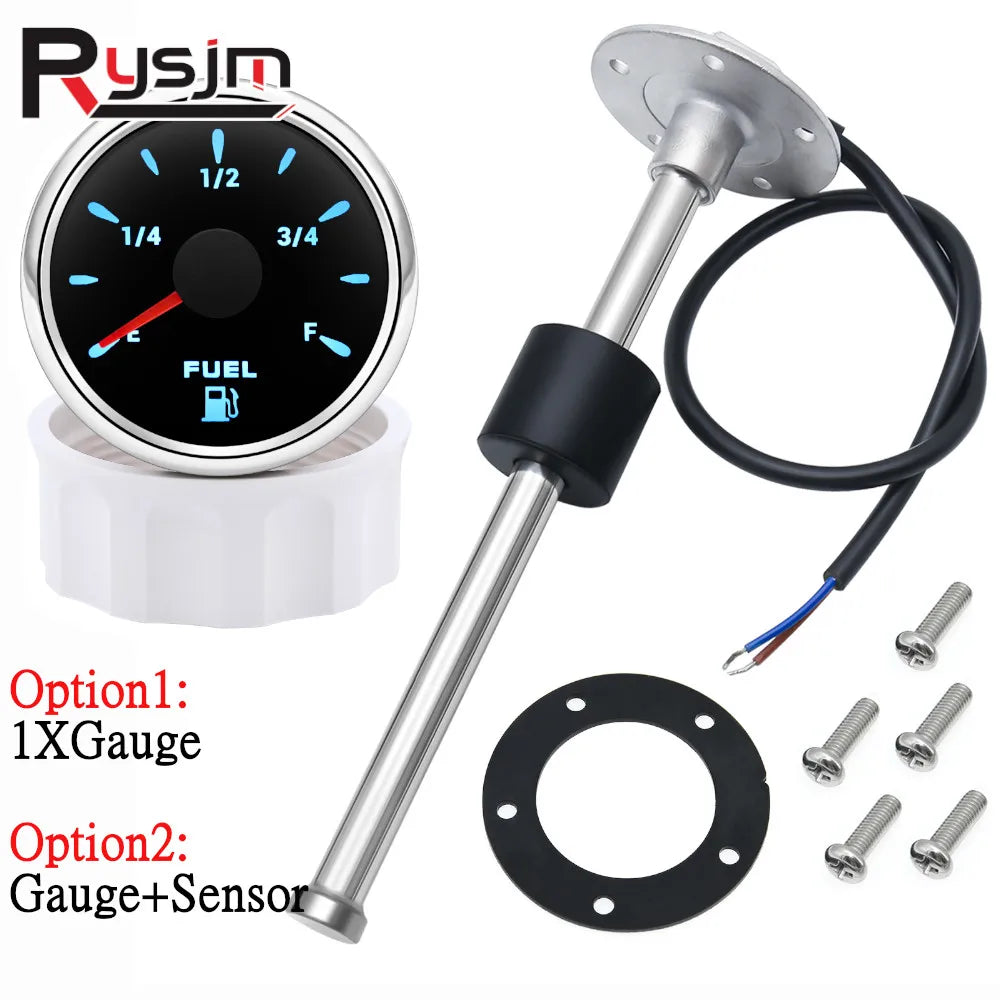

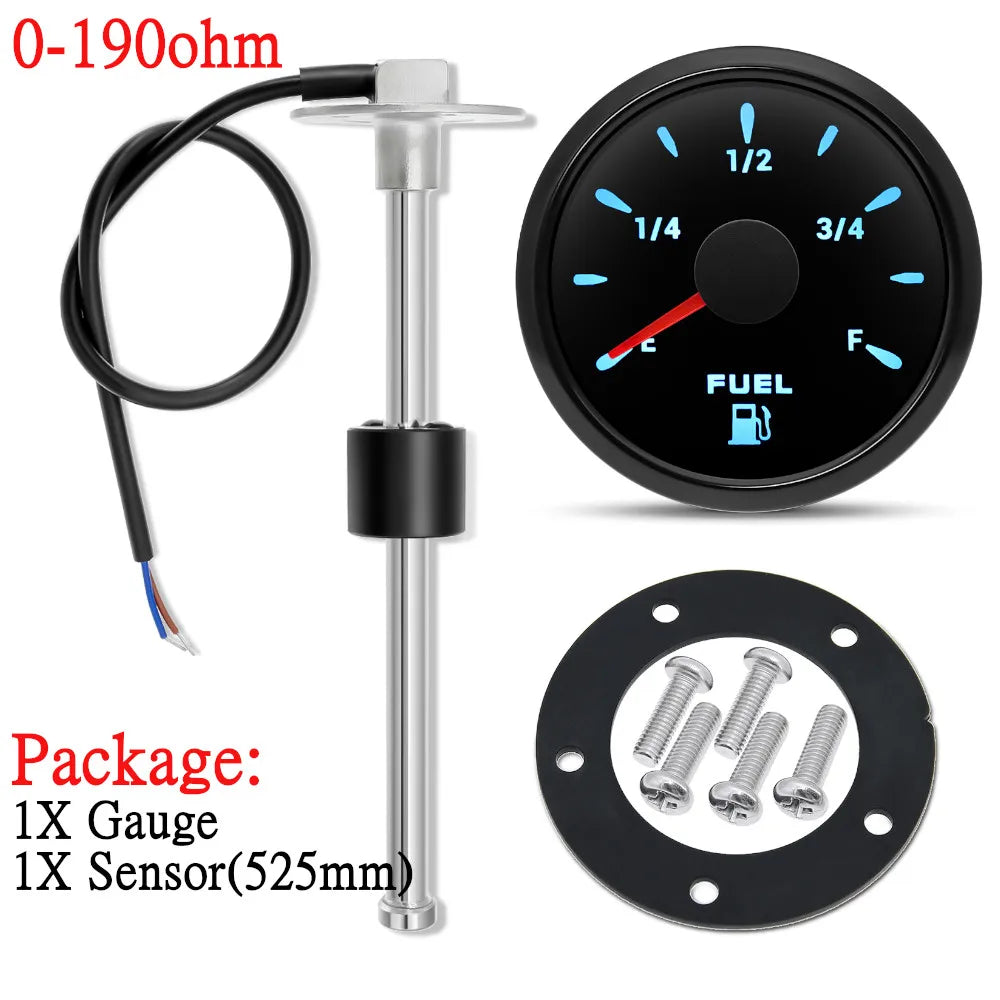

1X Fuel Level Gauge+Sensor

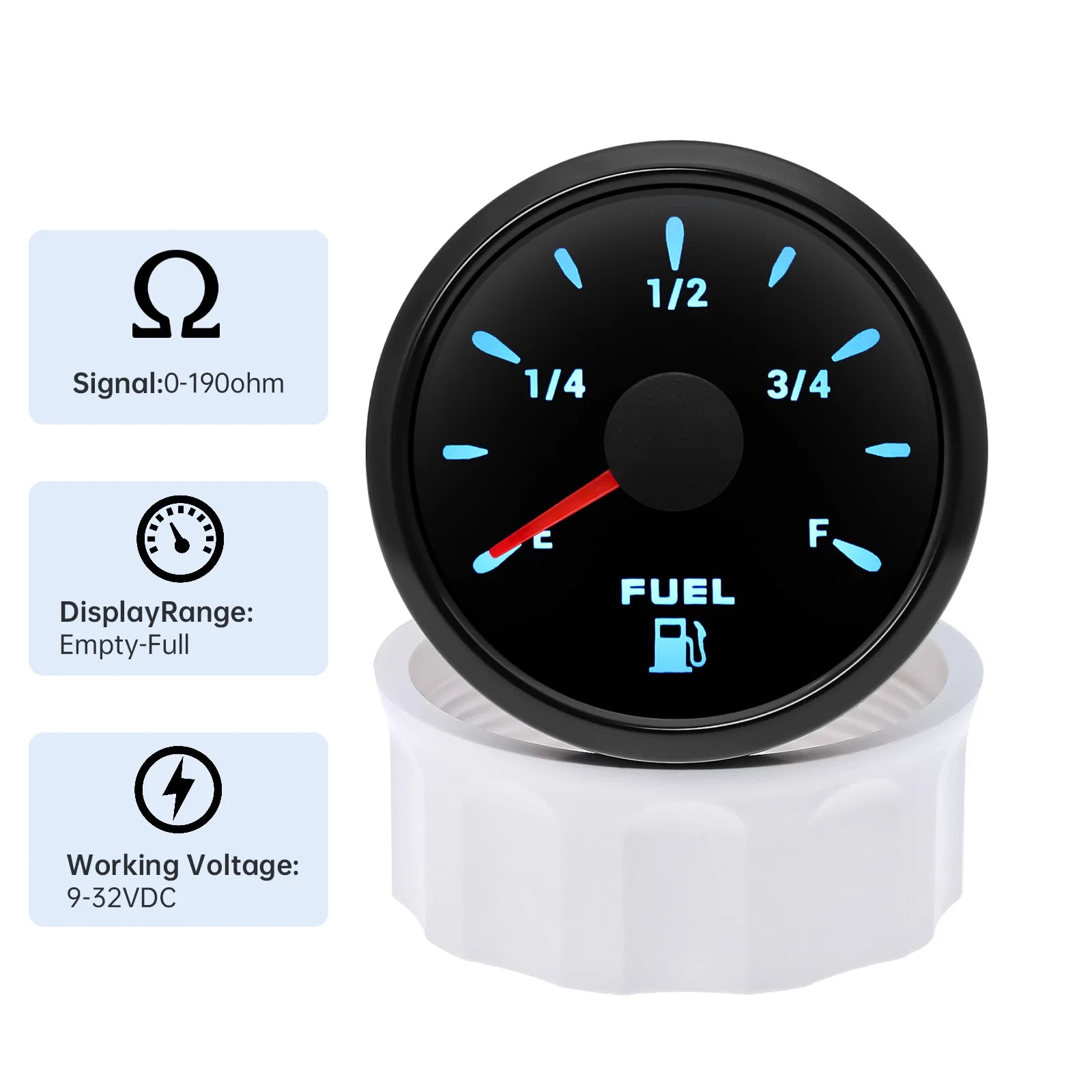

Specification:

* Material:stainless steel 316L+anti-fog glass

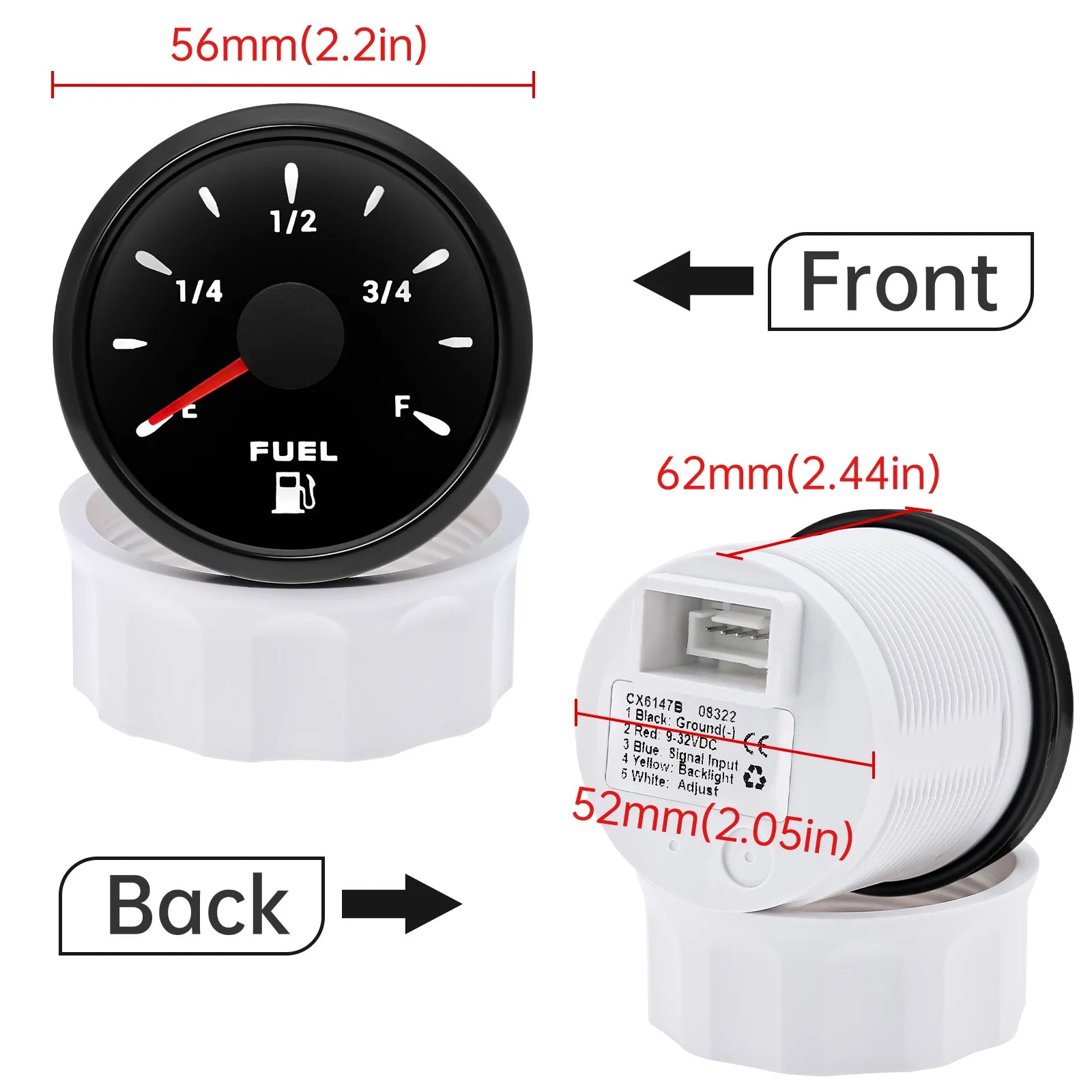

* Install diameter:Φ52mm or 2-1/16"

* Indication range:E-F

* Input signal:0~190ohm

* Backlight color:red,yellow,orange,green,blue,purple,yellow green, You can choose what you need color that press the gauge back button

* Working current::≤60mA

* Operating temperature:-30℃~+75℃

* Storage temperature:-40℃~+85℃

* Grade of protection:IP67

* Item color:Black

* Item condition:new

* Package method:neutral box

Technical Data:

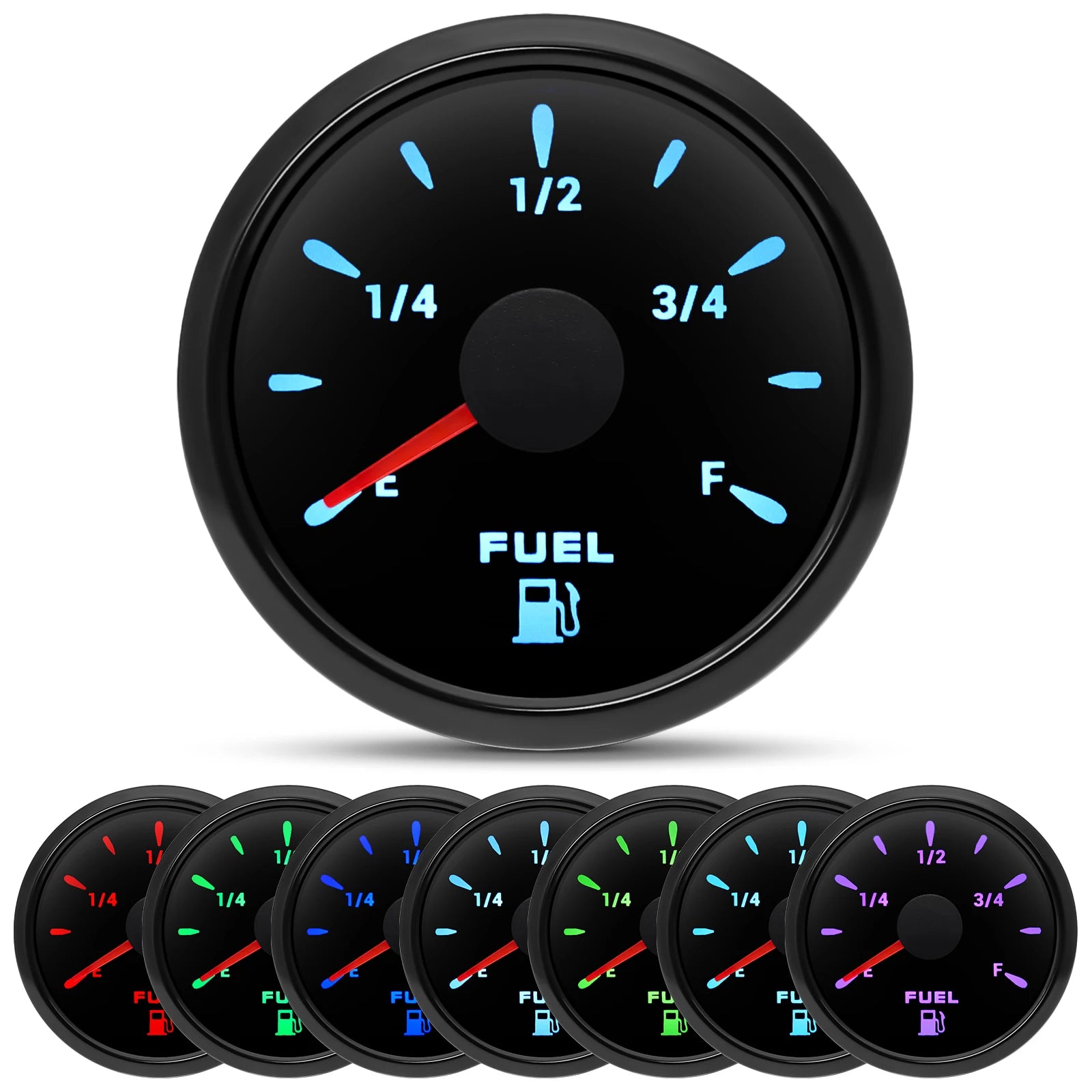

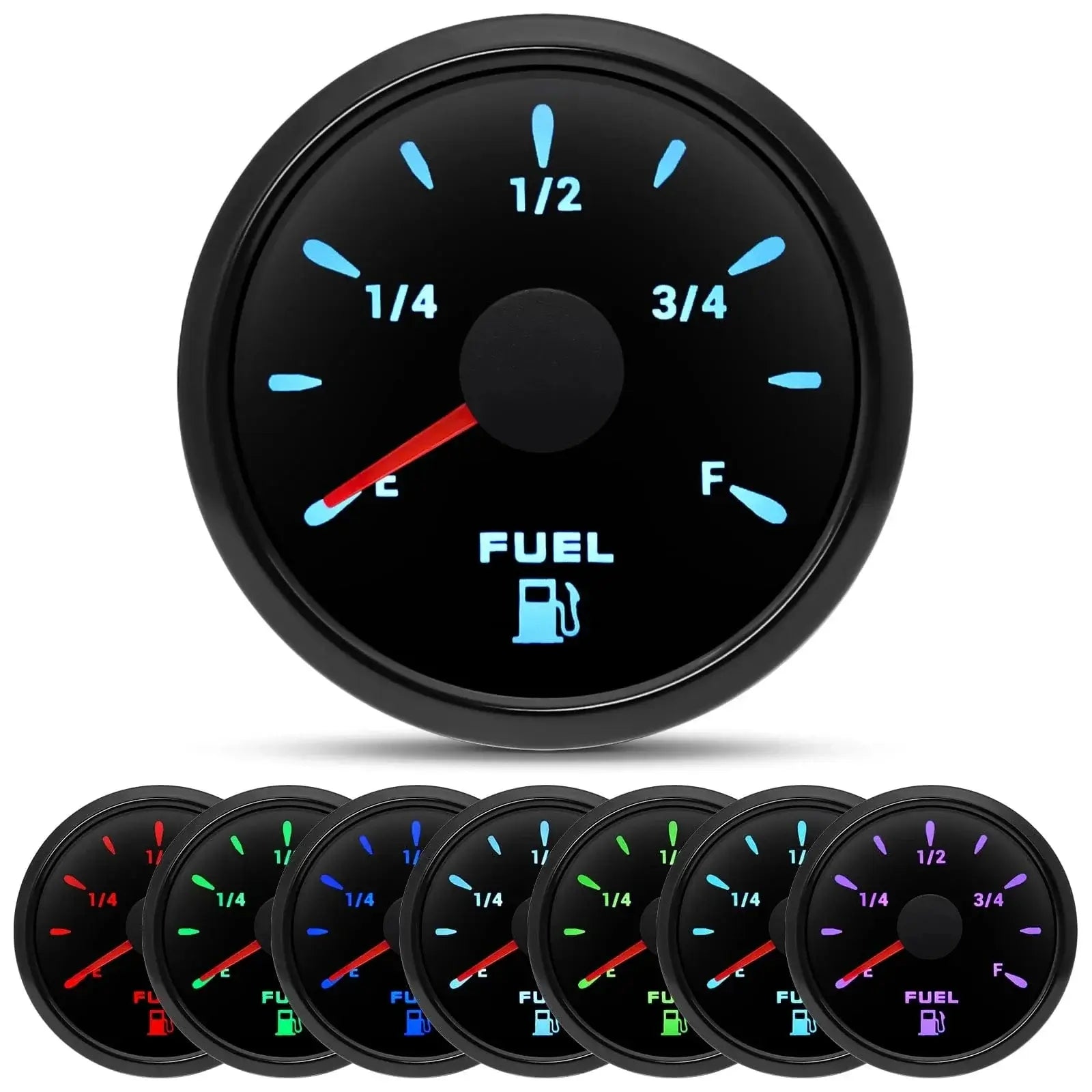

* This gauge have 7 backlight color : red、green、blue、yellow、olivine、orange、purple, totally 7kinds different backlight color, it will change automatically every 1 minute.
* Fantastic waterproof Function: Can work in the water.
* You can fix only one color you like by pressing the gauge back "set" button
* Gauges front cover use stainless steel 316L for long-term use even in acid-base and humid environment
* IP67 waterproof and dustproof grade
* Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision etc.
* With curved glass (with anti-fog function)
* With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v)

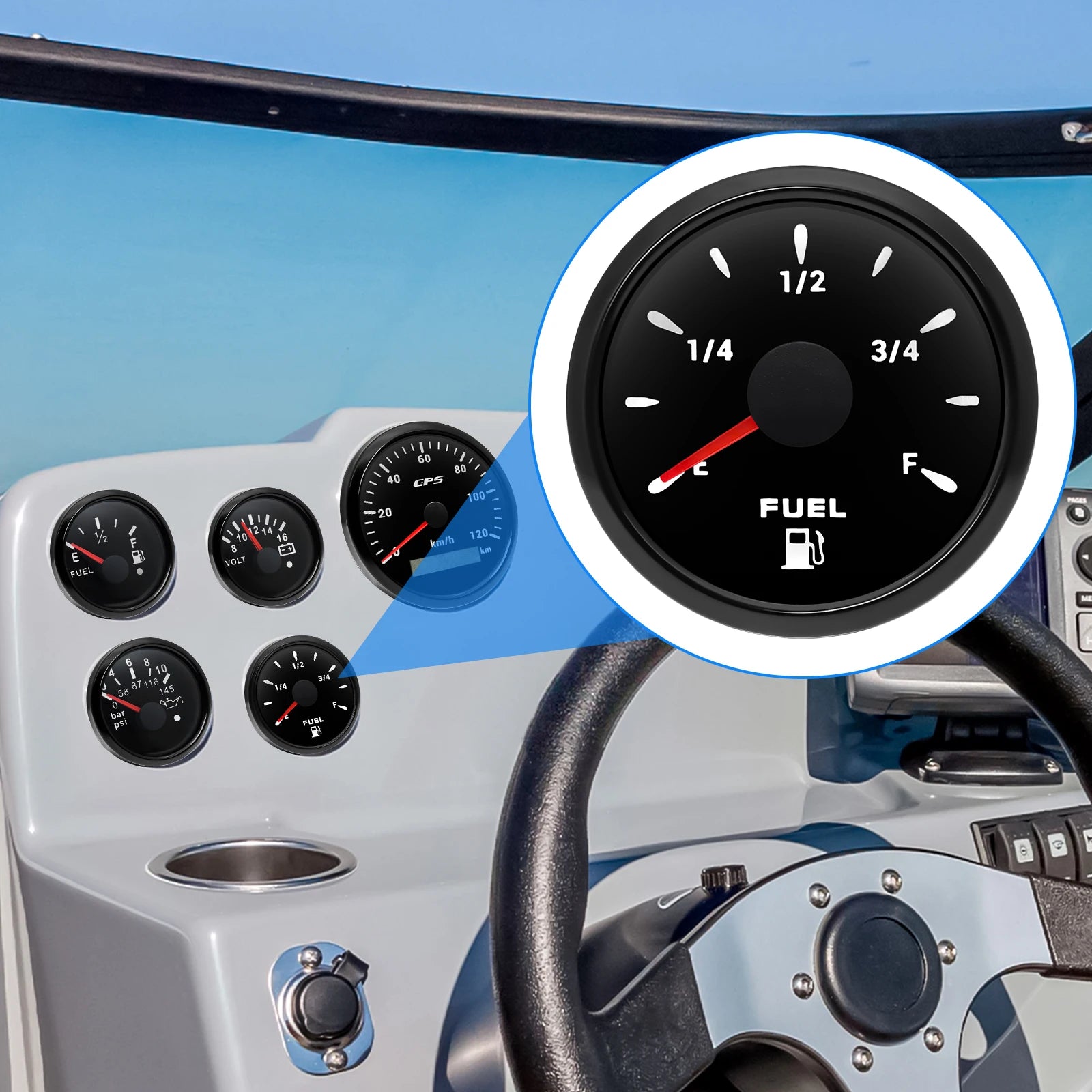

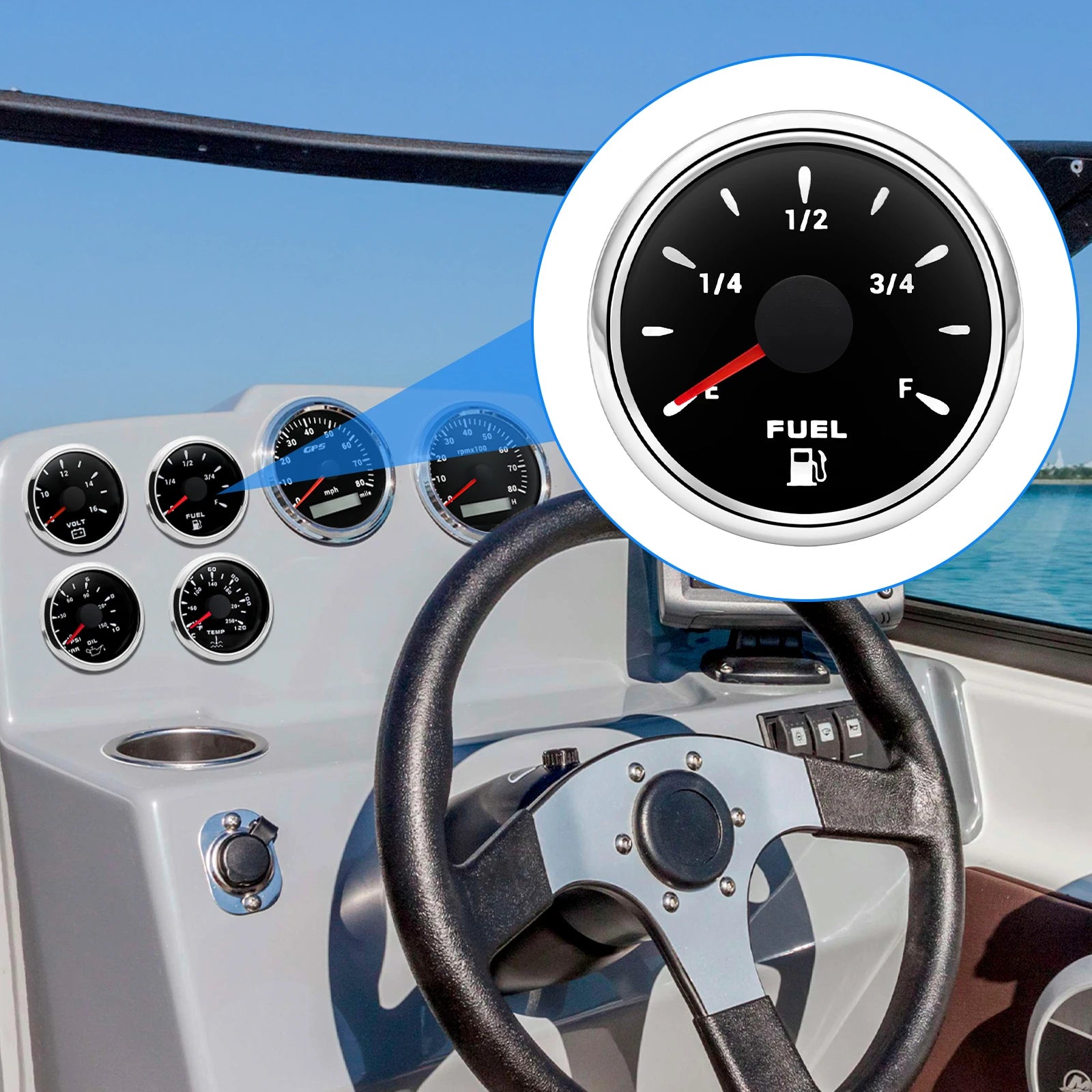

* Products can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc.

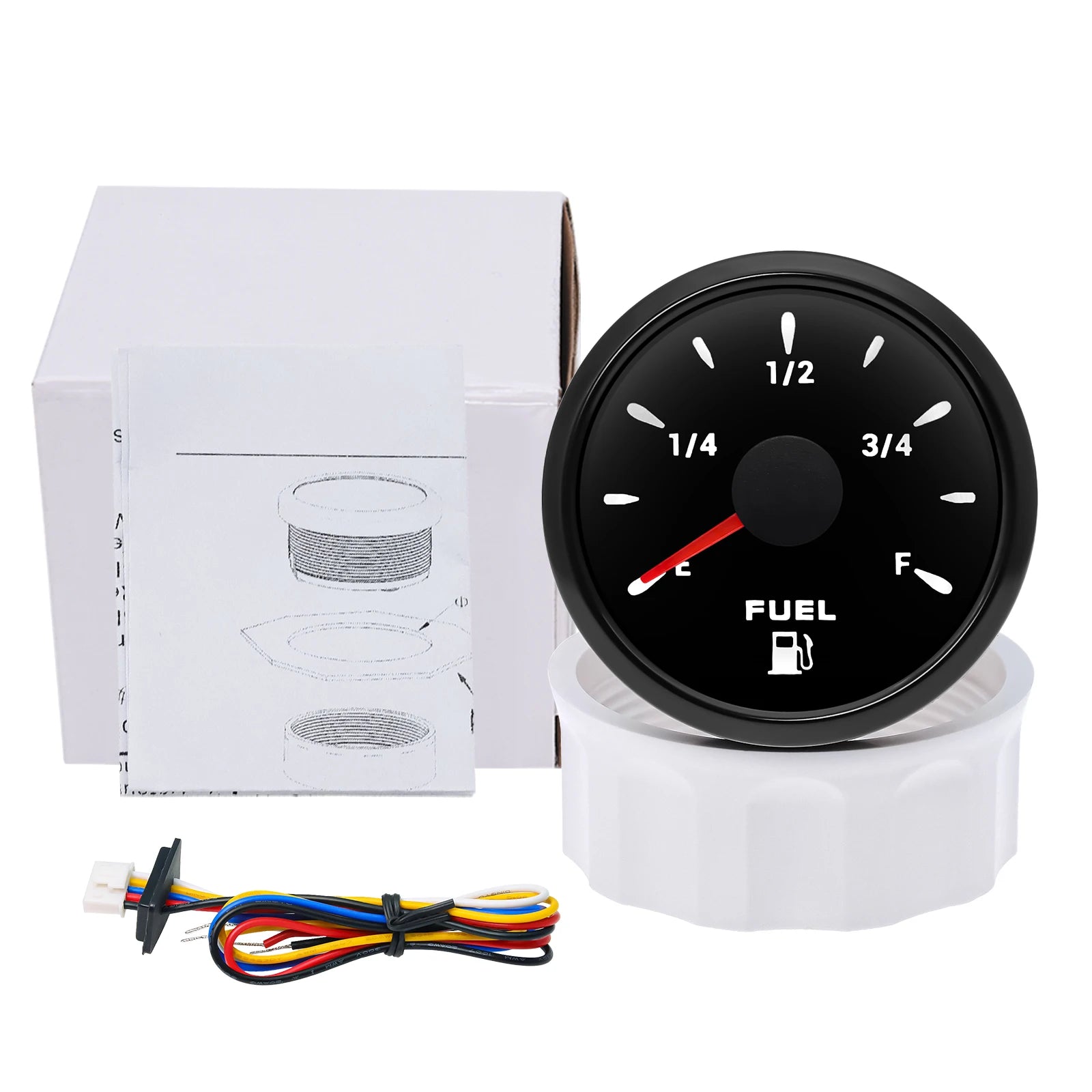

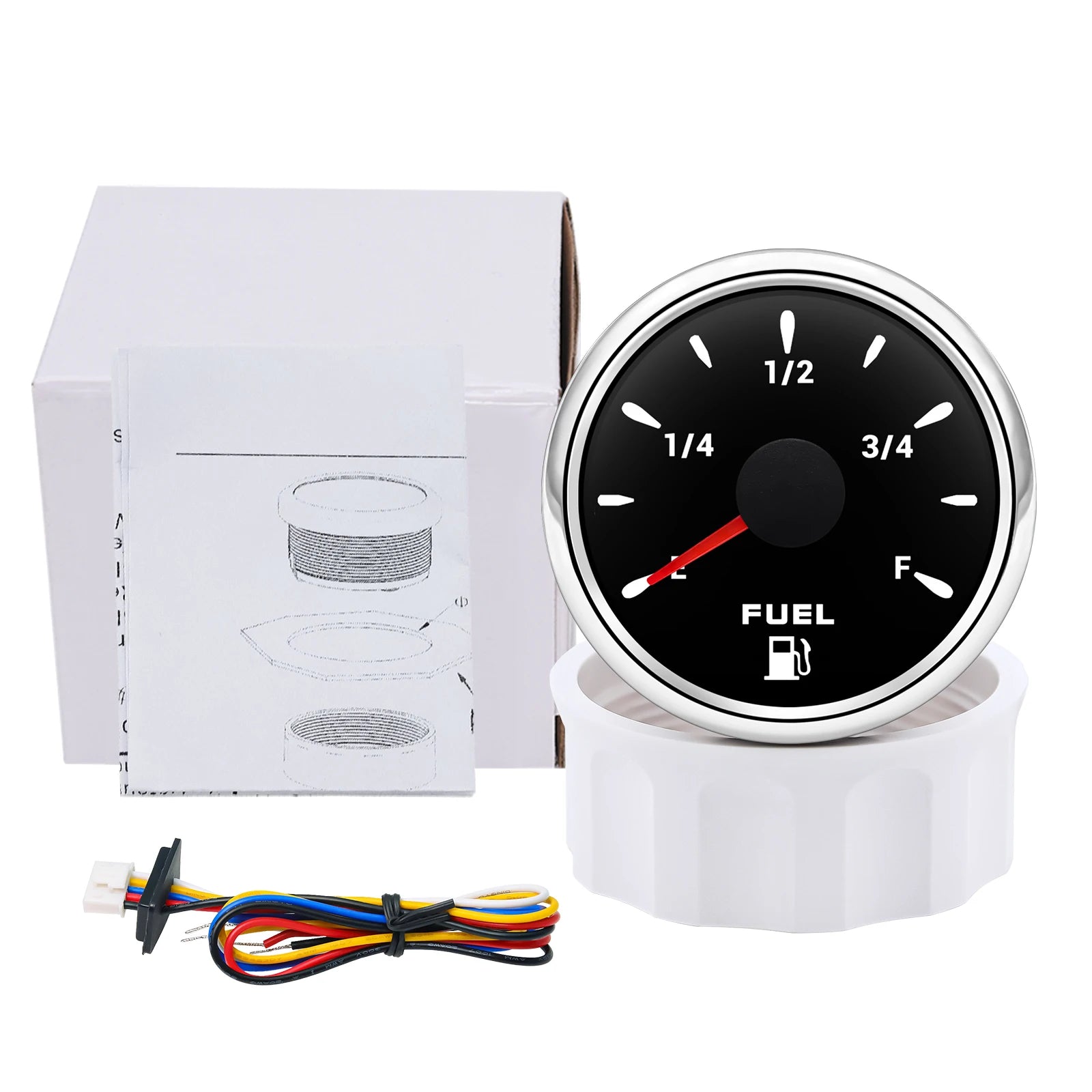

Package Includes:

1x Gauge
1x Wiring harness
1x Installation Instruction

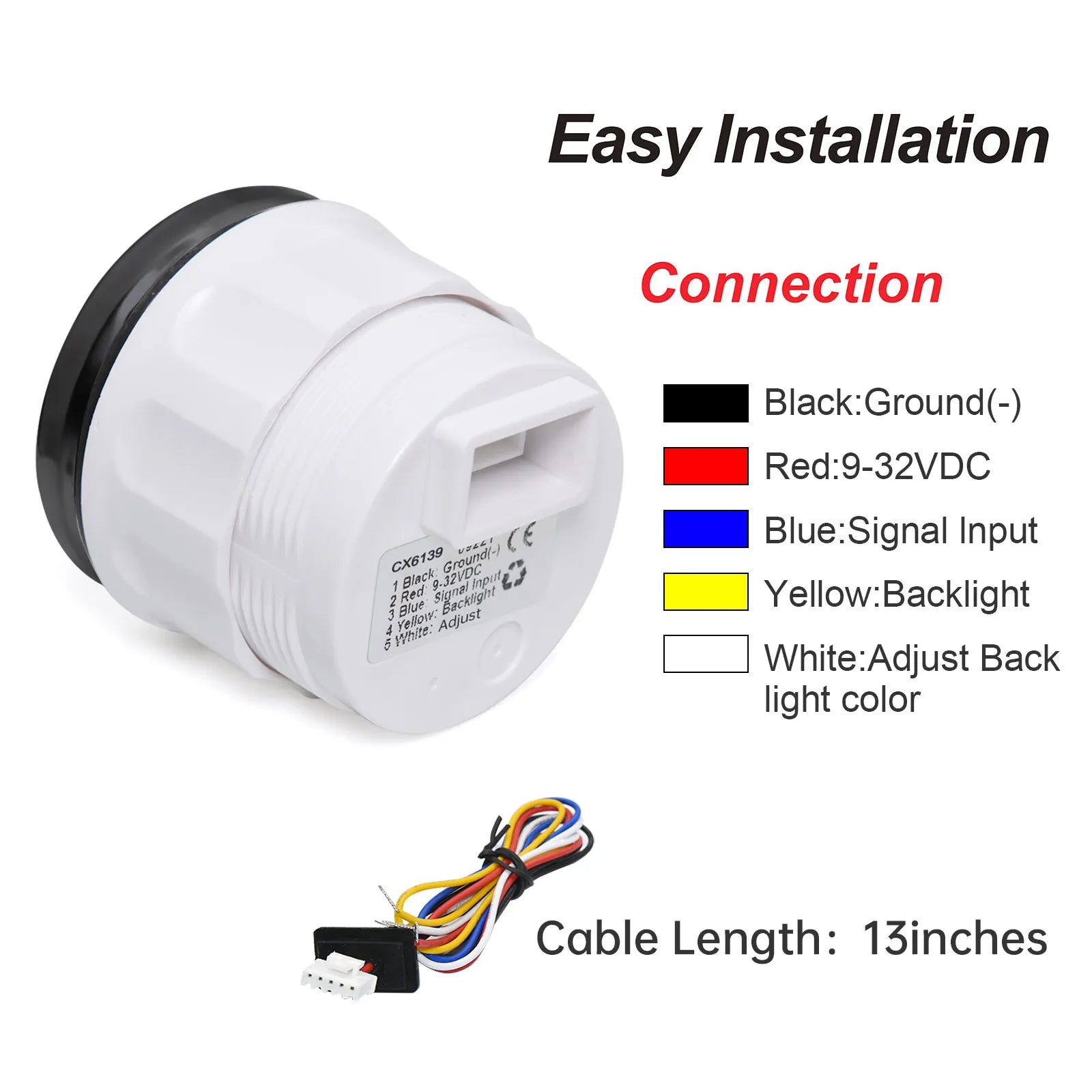

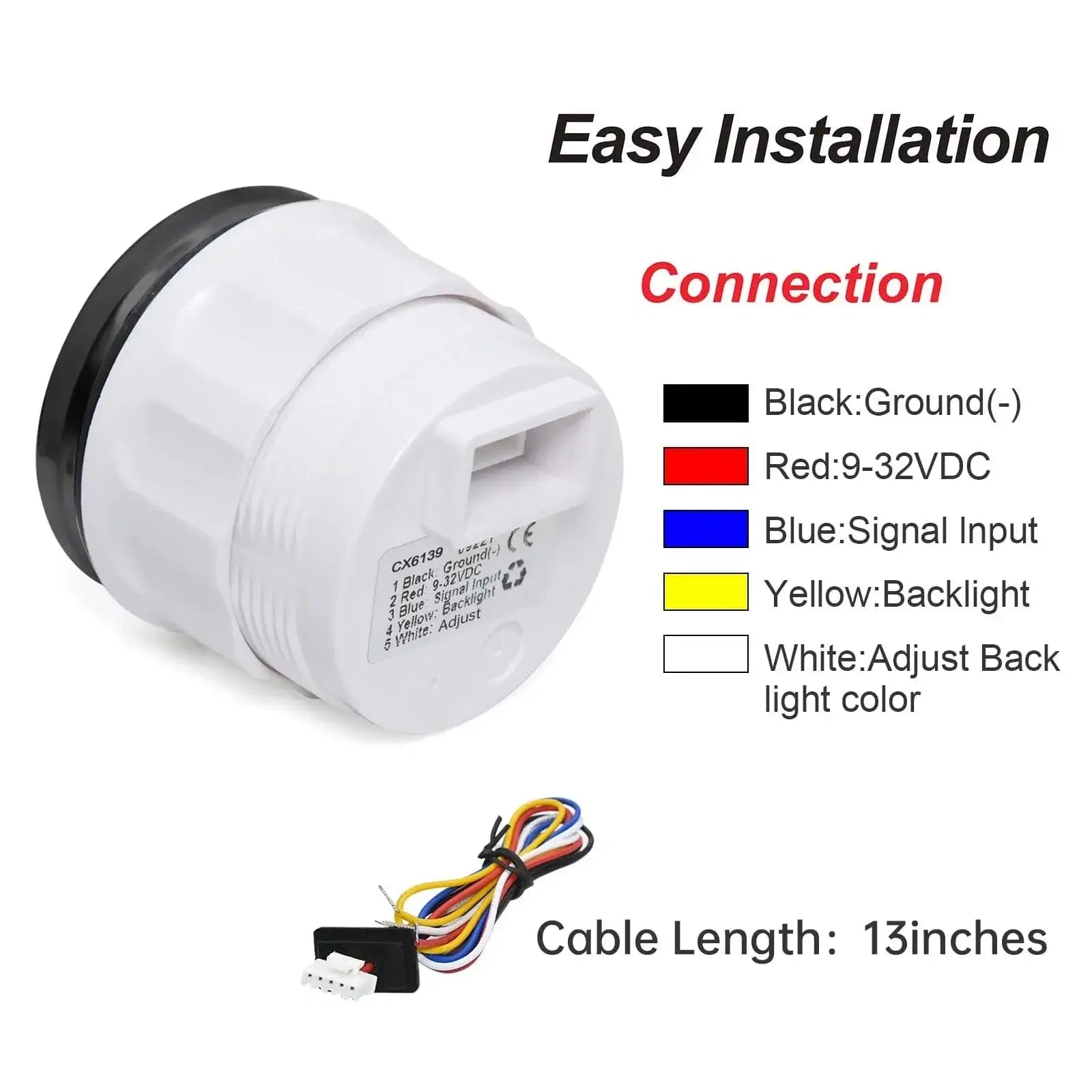

Connection:

Black: Ground(-)
Red: 9-32VDC
Blue: Signal Input
Yellow: Backlight
White: Reserve

Notes:

-Please make sure that signal parameter fit for your car model before pay.Thank you very much!

-Please make sure that signal parameter fit for your car model before pay.Thank you very much!

Wholesale and Drop shipping

- For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.

- For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.

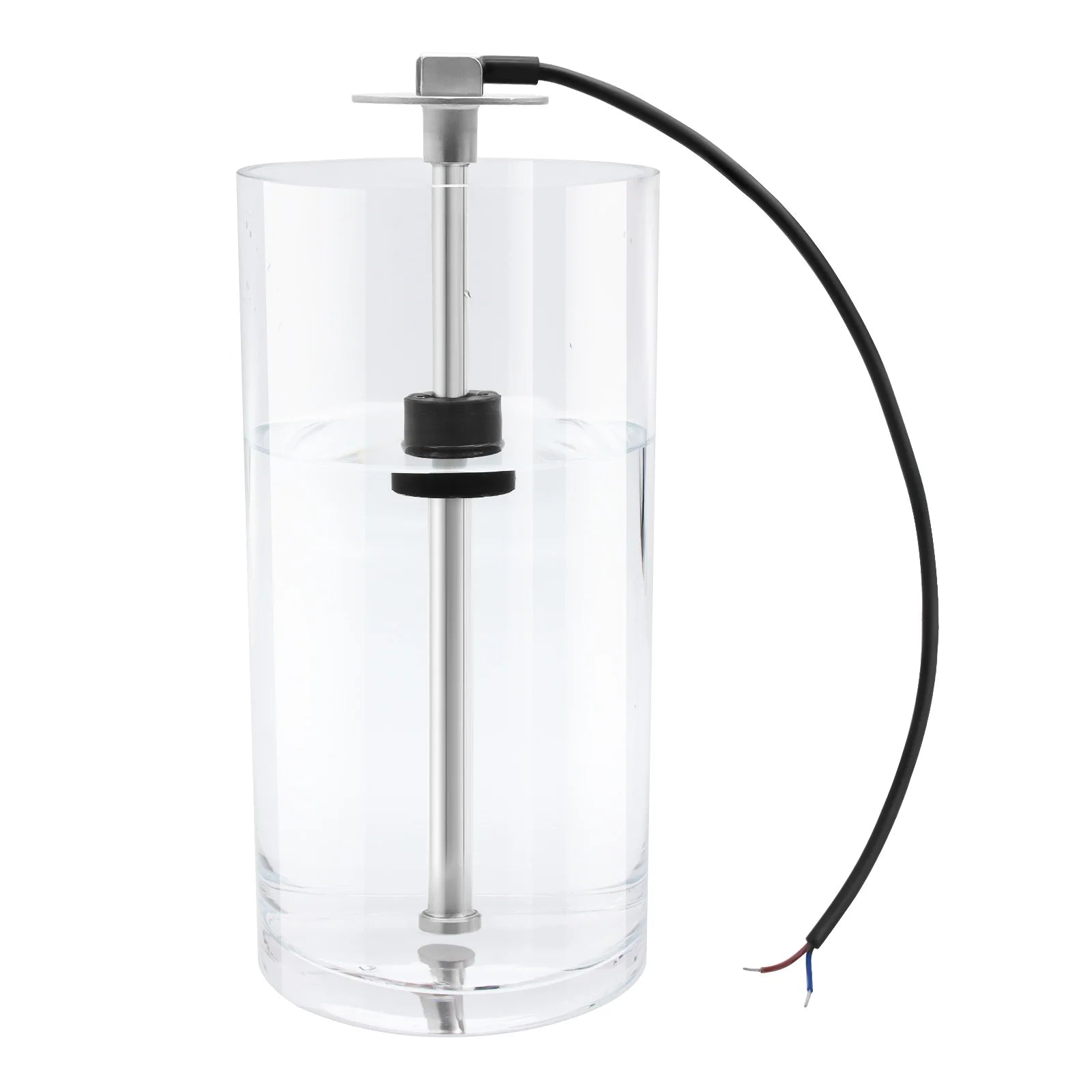

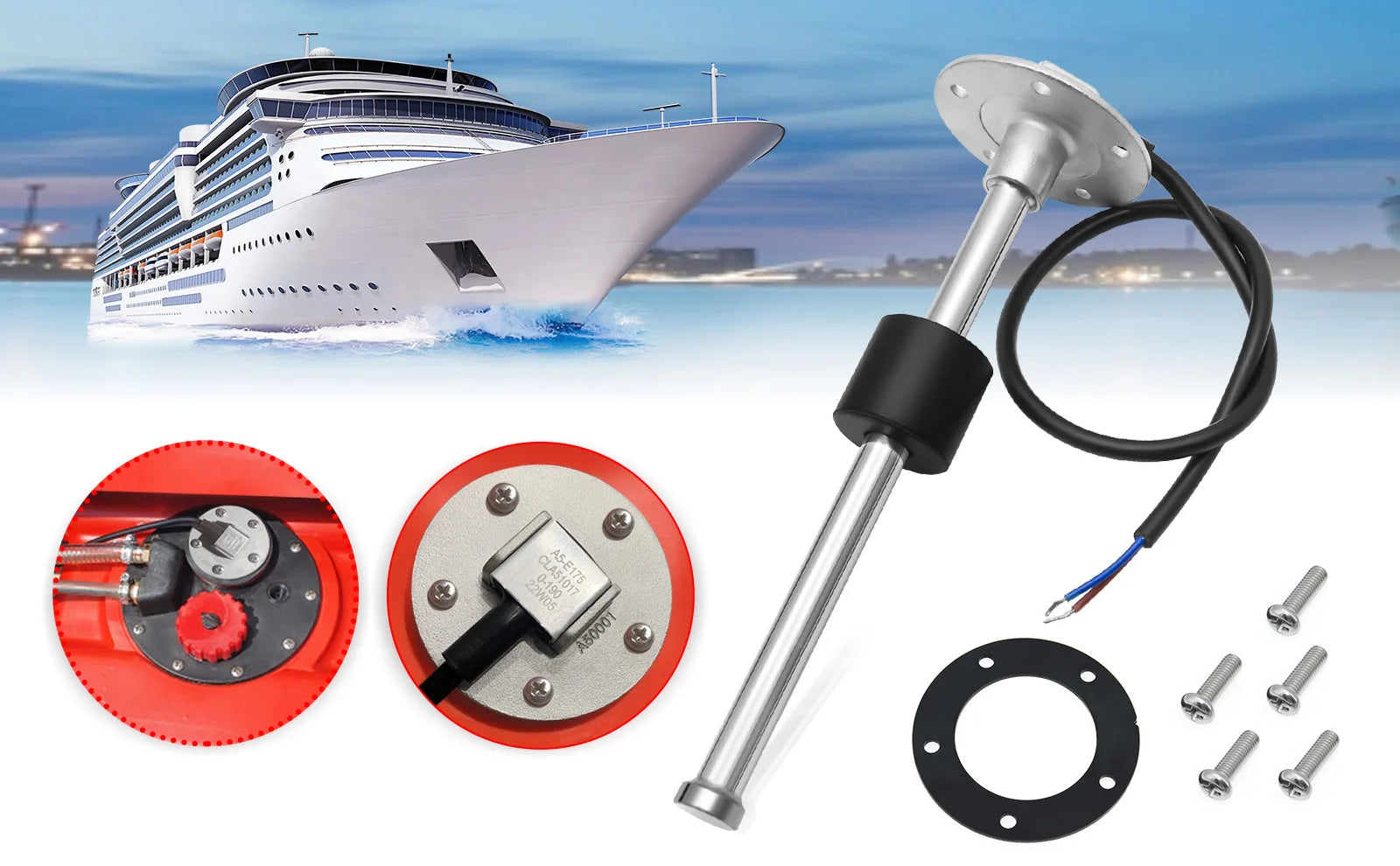

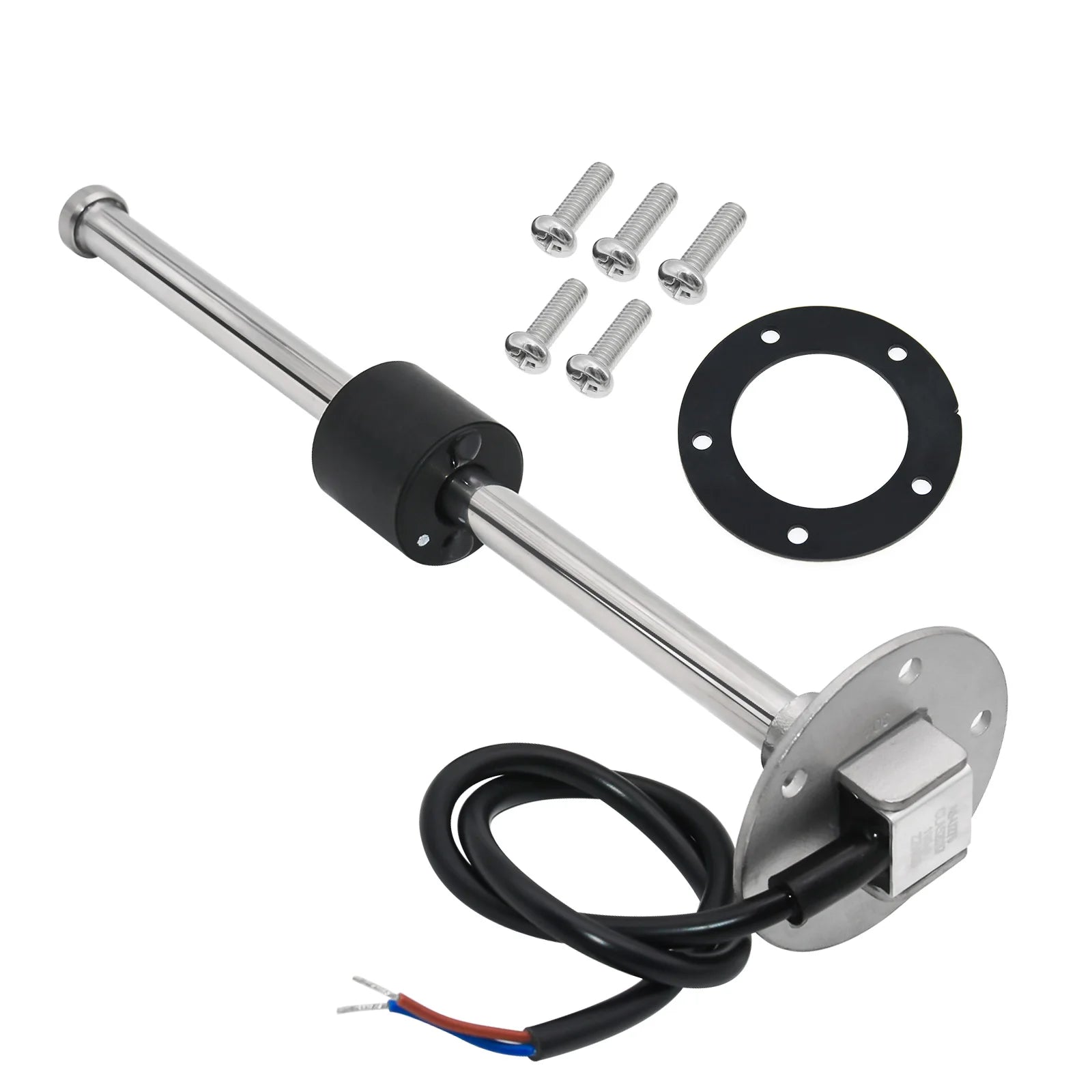

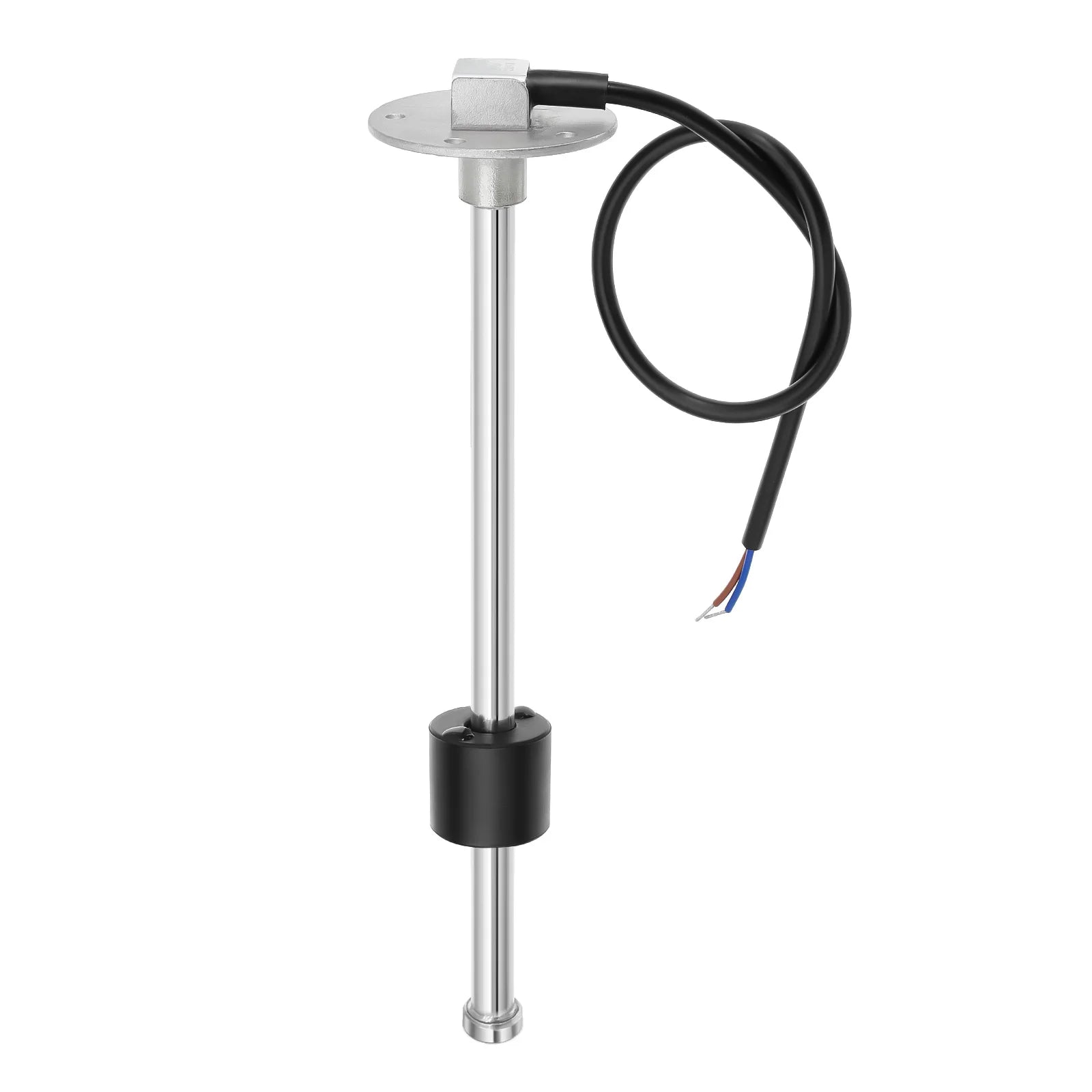

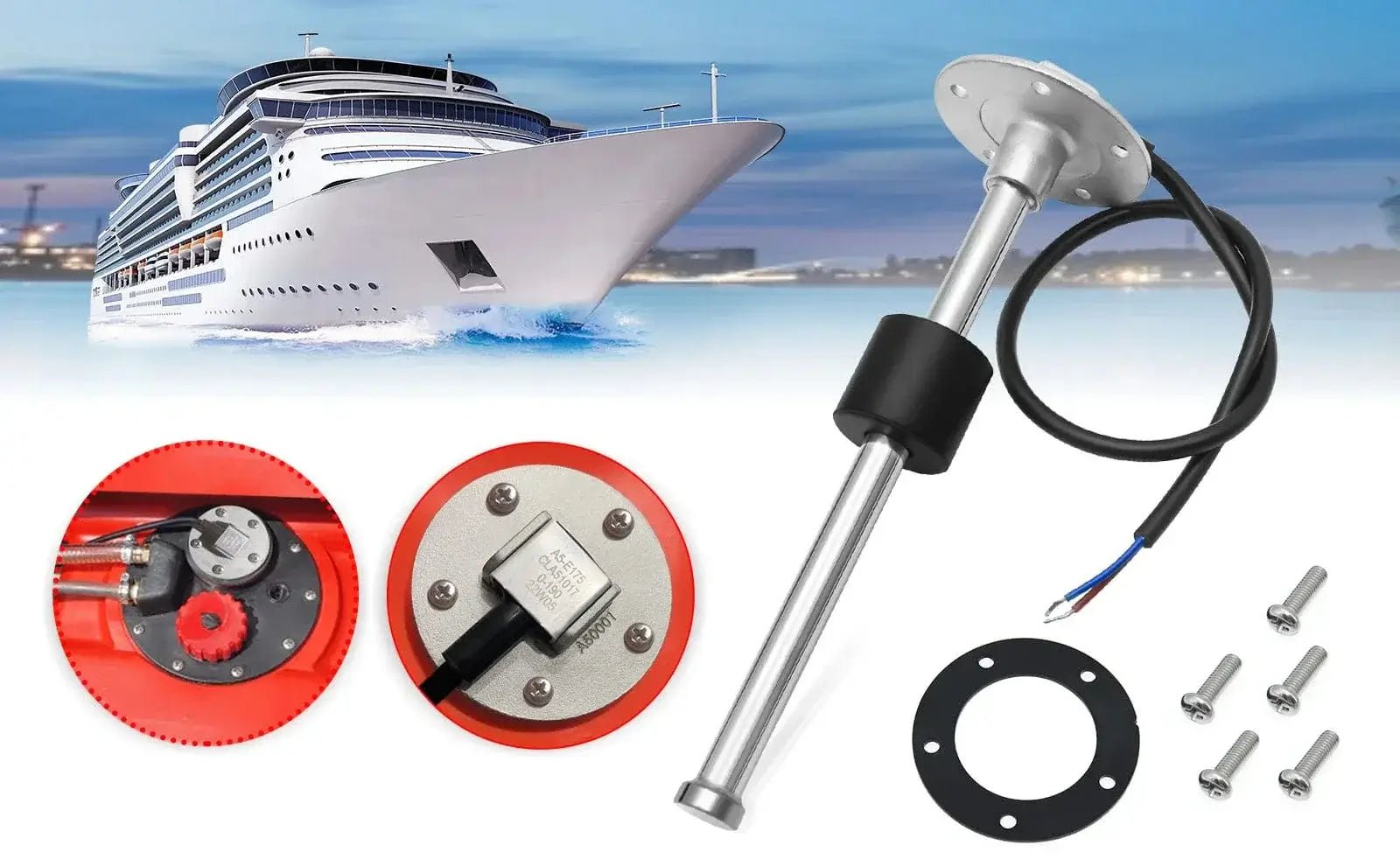

Fuel Level Sensor

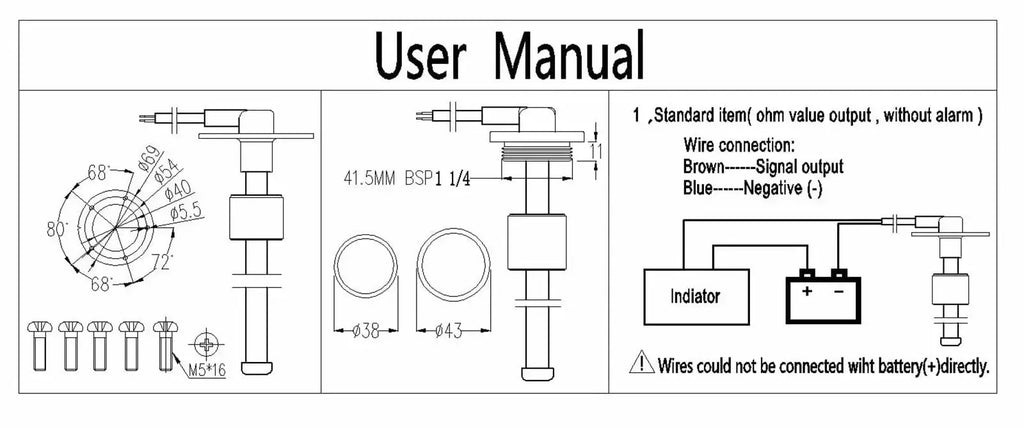

Sensor Specifications:

* Resolution range: 21 mm
* Assembly: SAE standard 5 holes
* Operating temperatures: - 40 to 85
* Rated current for alarm switch: 500mA
* Operating temperatures: - 40 to 85 Celsius
* Level Sensor fit for Diesel & Gasoline Engine
* Fit for Fuel Level Gauge and Water Level Gauge

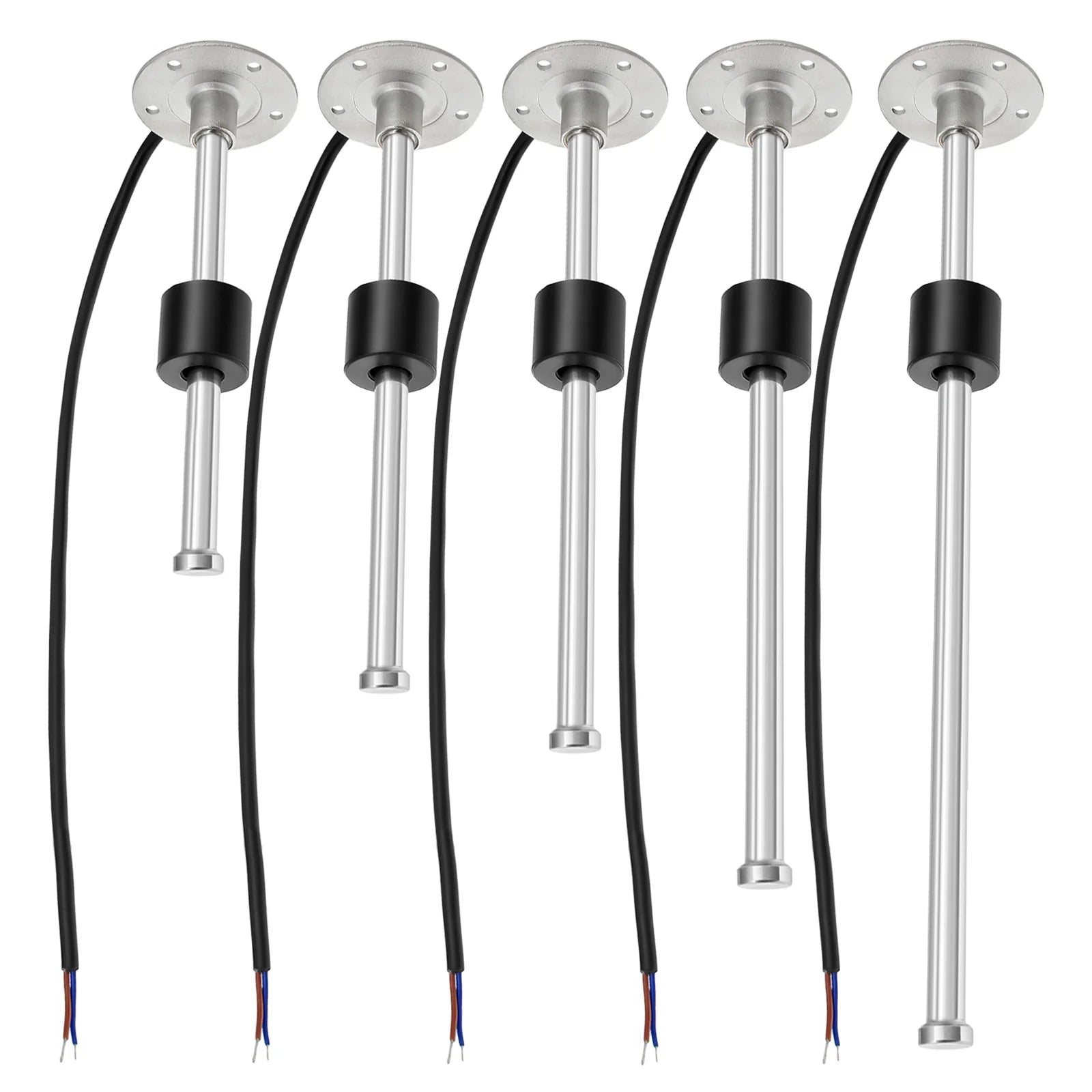

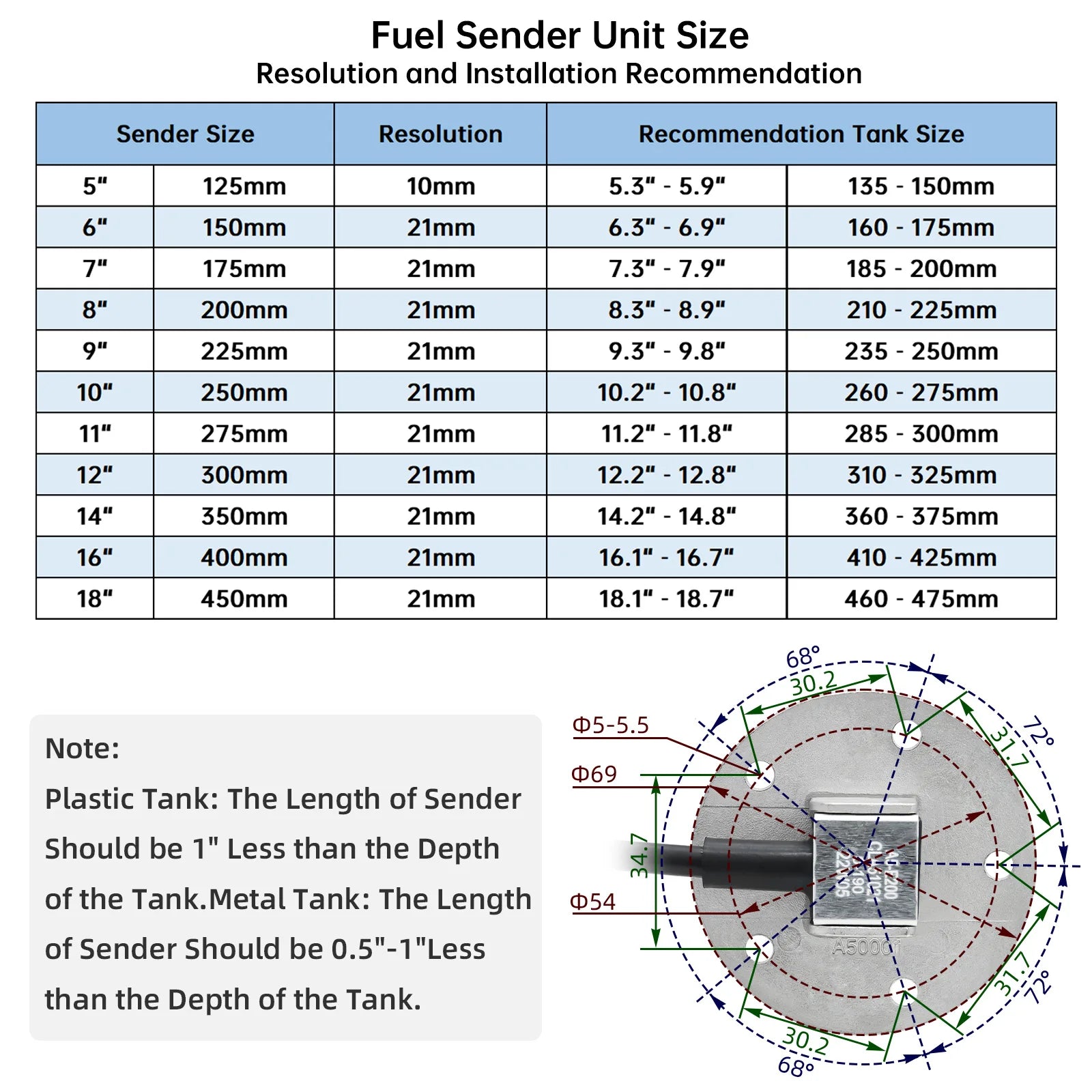

* Sensor Length :200mm,250mm
300 mm ,350 mm ,400mm, 450 mm,500mm,550mm

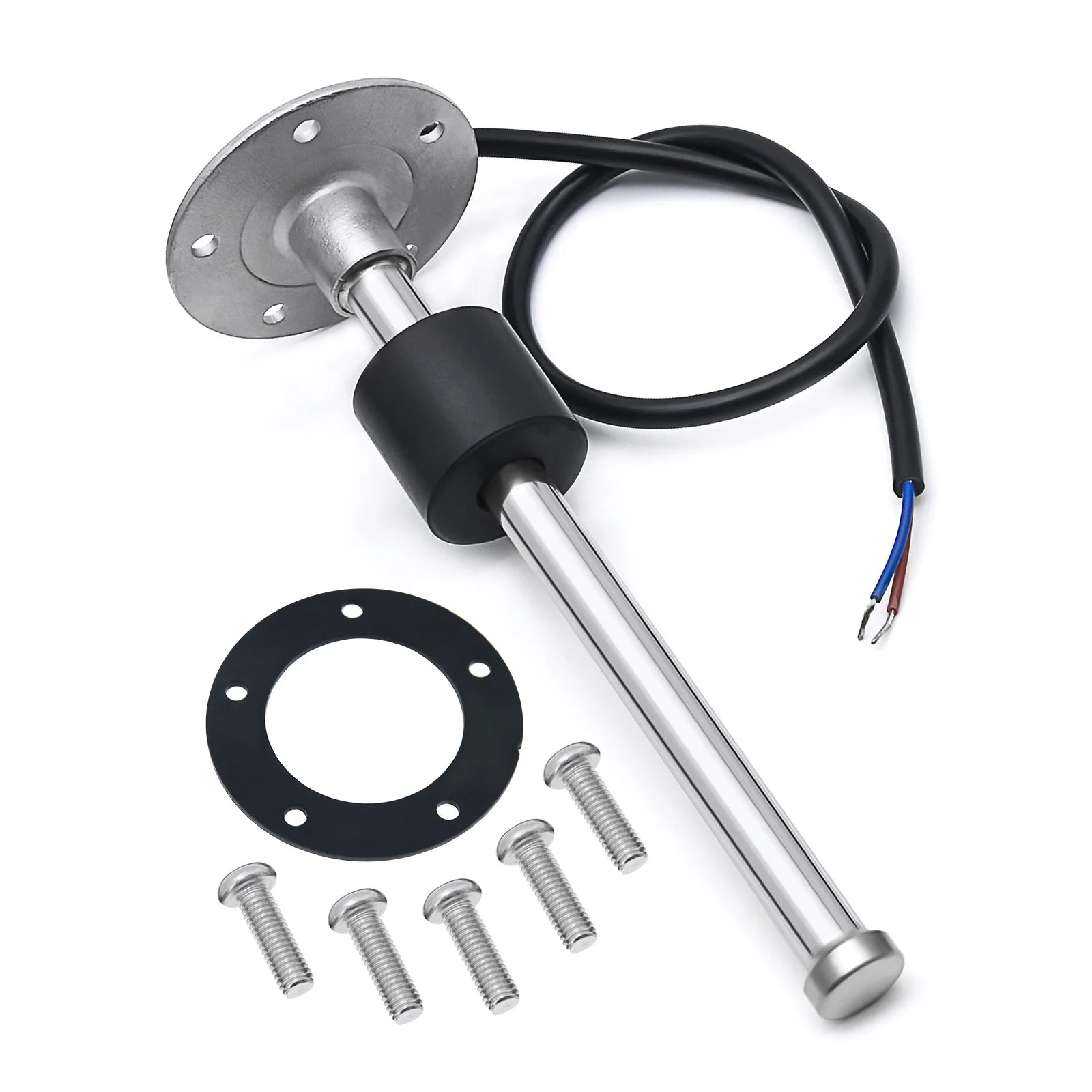

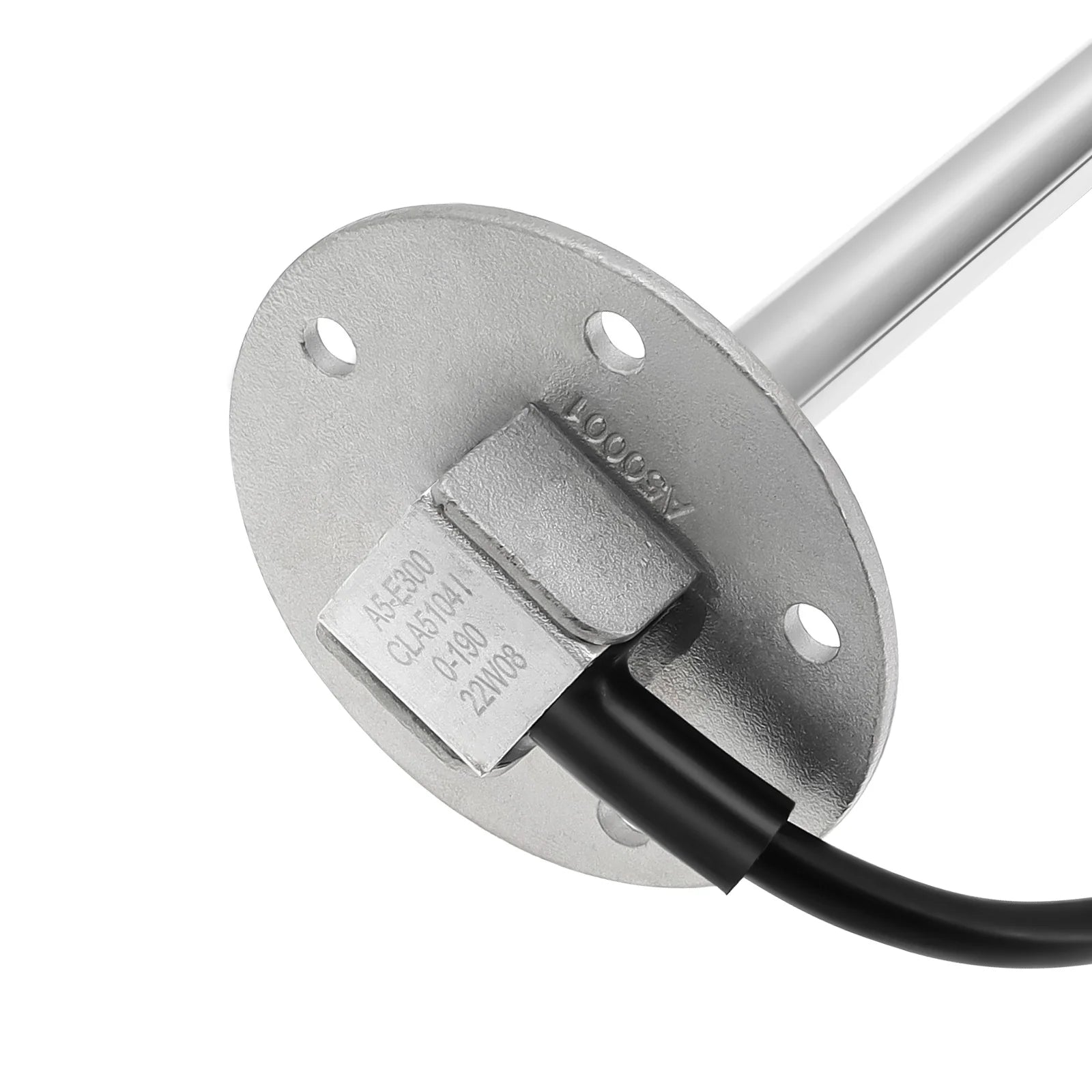

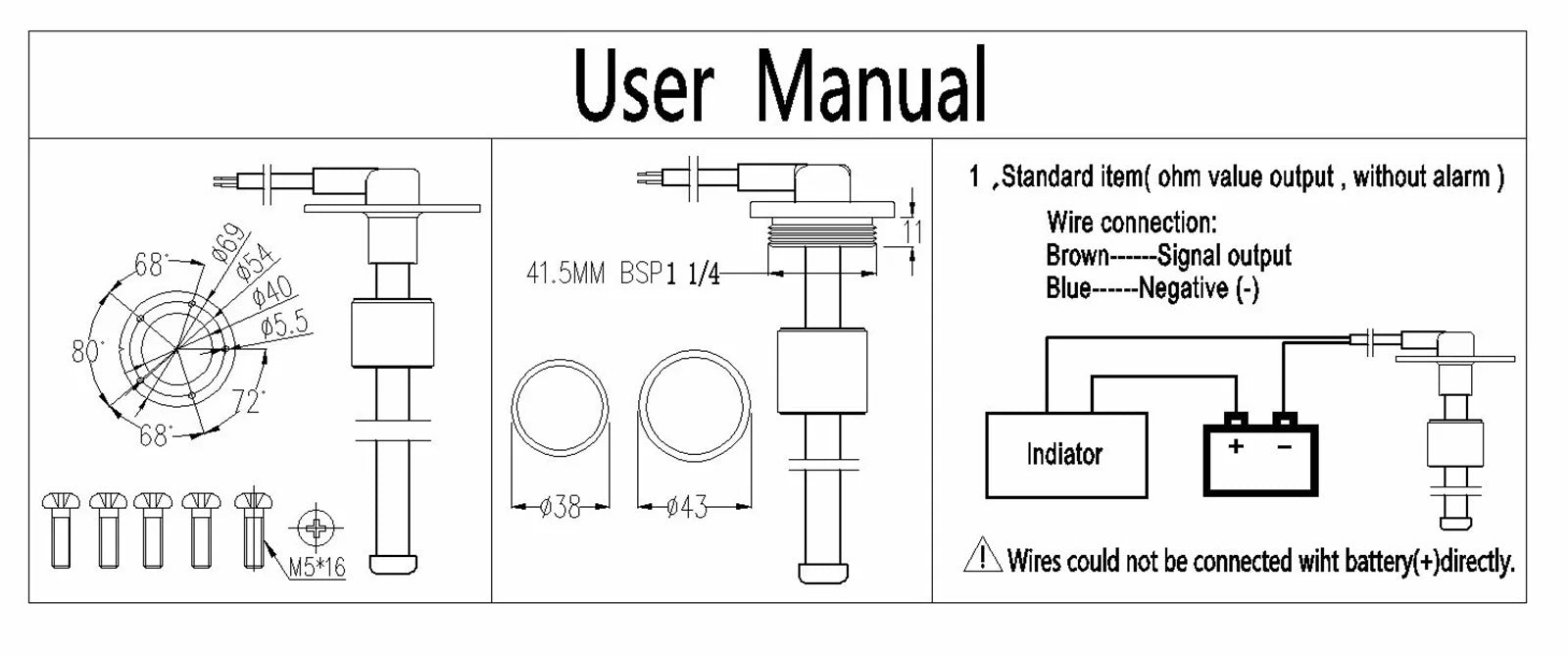

* Mounting: 5 pieces of M5 screws and 2 mm thick gasket
* Output signal: 0~190 ohm (Standard European),
